Fluke 179-2/IMSK Industrial Multimeter Service Kit
SKU: FLU179-2/IMSK
179-2/IMSK
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

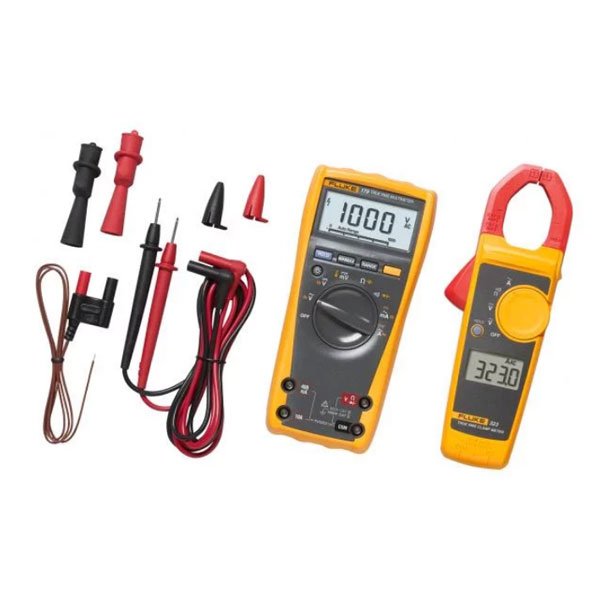

Fluke 179-2/IMSK Industrial Multimeter Service Kit
This kit combines the Fluke 179 True-RMS DMM and the Fluke 323 True-RMS clamp meter. Both tools are rugged, reliable and accurate, as well as extremely easy to operate.
Fluke 179 True-RMS Digital MultimeterThe Fluke 179 is the preferred solution for professional technicians around the world. It includes the features you need to troubleshoot and repair electrical and electronic systems:
-
Delivers accurate true-rms AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
-
Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
-
Includes a built-in thermometer to measure temperature without having to carry a separate instrument
The Fluke 323 clamp meter provides true-rms measurements, optimized ergonomics, and large display for efficient troubleshooting. It's designed to perform in the toughest environments and provide noise-free, reliable results, so you can confidently diagnose problems almost anywhere.
-
Rugged, reliable basic true-rms clamp meter for measuring current up to 400 A
-
Measures AC current to 400 A
-
Measures AC voltage and DC voltage to 600 V
-
Provides true-rms AC voltage and current for accurate measurements on non-linear signals
-
Measures resistance to 4 kΩ with continuity detection
-
Features a CAT III 600 V, CAT IV 300 V safety rating
Discover the Fluke 179-2/IMSK Industrial Multimeter Service Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
A full-featured, true-rms multimeter combined with a rugged, reliable basic true-rms clamp meter
-
Ideal for troubleshooting electrical and electronic systems
-
Measures up to 1000 V ac or dc (179 DMM) and up to 400 A ac (323 clamp)
-
Fluke 179 True-RMS Digital Multimeter
-
Fluke 323 True-RMS Clamp Meter
-
80BK-A DMM Temperature Probe
-
TL75 Hard Point Test Lead Set
-
AC175 Threaded Alligator Clip Set
|
Voltage DC |
Accuracy1 |
±(0.09% + 2) |
|
Max. resolution |
0.1 mV |
|
|
Maximum |
1000 V |
|
|
Voltage AC |
Accuracy1 |
±(1.0% + 3) |
|
Max. resolution |
0.1 mV |
|
|
Maximum |
1000 V |
|
|
Current DC |
Accuracy1 |
±(1.0% + 3) |
|
Max. resolution |
0.01 mA |
|
|
Maximum |
10 A |
|
|
Current AC |
Accuracy1 |
±(1.5% + 3) |
|
Max. resolution |
0.01 mA |
|
|
Maximum |
10 A |
|
|
Resistance |
Accuracy1 |
±(0.9% + 1) |
|
Max. resolution |
0.1 Ω |
|
|
Maximum |
50 MΩ |
|
|
Capacitance |
Accuracy1 |
±(1.2% + 2) |
|
Max. resolution |
1 nF |
|
|
Maximum |
10,000 µF |
|
|
Frequency |
Accuracy1 |
±(0.1% + 1) |
|
Max. resolution |
0.01 Hz |
|
|
Maximum |
100 kHz |
|
| Temperature | Accuracy1 | ±(1.0% + 10) |
| Max. resolution | 0.1 °C | |
| Range | -40 °C / 400 °C | |
|
1. Accuracies are best accuracies for each function |
||
|
Environmental Specifications |
||
|
Operating temperature |
-10 °C to +50 °C |
|
|
Storage temperature |
-30 °C to +60 °C |
|
|
Humidity (without condensation) |
0% - 90% (0 °C - 35 °C) 0% - 70% (35 °C - 50 °C) |
|
|
Safety Specifications |
||
|
Overvoltage category |
EN 61010"“1 to 1000 V CAT III EN 61010"“1 to 600 V CAT IV |
|
|
Agency approvals |
UL, CSA, TÃœV listed and VDE Pending |
|
|
Mechanical and General Specifications |
||
|
Size |
43 x 90 x 185 mm |
|
|
Weight |
420 g |
|
|
Warranty |
Lifetime |
|
|
Battery life |
Alkaline ~200 hours typical, without backlight |
|
Fluke 323 True RMS Clamp Meter
|
Specifications |
||
|
AC current |
Range |
400.0 A |
|
Accuracy |
2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
|
DC current |
Range |
- |
|
Accuracy |
- |
|
|
AC voltage |
Range |
600.0 V |
|
Accuracy |
1.5% ± 5 digits |
|
|
DC voltage |
Range |
600.0 V |
|
Accuracy |
1.0% ± 5 digits |
|
|
Resistance |
Range |
400.0 Ω/ 4000 Ω |
|
Accuracy |
1.0% ± 5 digits |
|
|
Continuity |
≤ 70 Ω |
|
|
Capacitance |
- |
|
|
Frequency |
- |
|
|
AC response |
True-RMS |
|
|
Backlight |
- |
|
|
Data hold |
Yes |
|
|
Contact temperature |
- |
|
|
Min/Max |
- |
|
|
Size |
H x W x D (mm) |
207 x 75 x 34 |
|
Max wire diameter |
30 mm (600 MCM) |
|
|
Weight |
265 g |
|
|
Category rating |
CAT III 600 V CAT IV 300 V |
|
|
Warranty |
Two-year |
|
