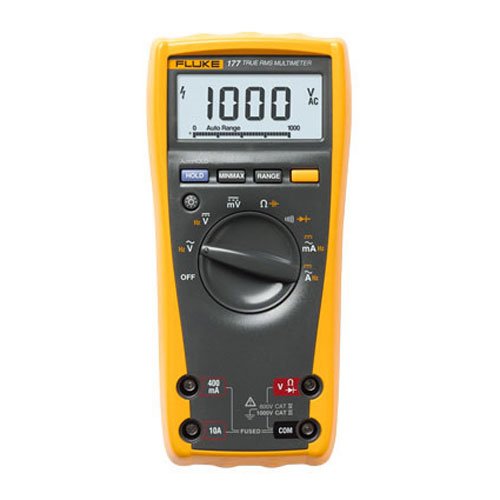

Fluke 177 True-RMS Digital Multimeter
The three models of the Fluke 170 Series True RMS digital multimeters are the benchmarks for general purpose multimeters. They set the standard with a combination of precision, features, ease-of-use, safety and reliability.
Discover the Fluke 177 True-RMS Digital Multimeter at Mektronics Australia – your trusted source for quality tools and equipment!
- True RMS voltage and current measurements
- 0.09% basic accuracy (177, 179)
- 6000 count resolution
- Digital display with analog bargraph and backlight (177, 179)
- Manual and automatic ranging
- Display Hold and Auto Hold
- Frequency and capacitance measurements
- Resistance, continuity and diode measurements
- Temperature measurements (179)
- Min-max-average recording
- Smoothing mode allows filtering of rapidly changing inputs
- Easy battery exchange without opening the case
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
- EN61010-1 CAT III 1000V / CAT IV 600V
- Measures twice as fast as other multimeters
Safety conformance
All inputs are protected to IEN61010-1 CAT IV 600V/CAT III 1000V. CSA, TÜV listed.
| Specifications |
| Voltage DC |
| 175 - Accuracy* |
± (0.15%+2) |
| 177 - Accuracy* |
± (0.09%+2) |
| 179 - Accuracy* |
± (0.09%+2) |
| Max. Resolution |
0.1 mV |
| Maximum |
1000 V |
|
| Voltage AC |
| Accuracy* |
± (1.0%+3) |
| Max. Resolution |
0.1 mV |
| Maximum |
1000 V |
|
| Current DC |
| Accuracy* |
± (1.0%+3) |
| Max. Resolution |
0.01 mA |
| Maximum |
10 A |
|
| Current AC |
| Accuracy* |
± (1.5%+3) |
| Max. Resolution |
0.01 mA |
| Maximum |
10 A |
|
| Resistance |
| Accuracy* |
± (0.9%+1) |
| Max. Resolution |
0.1 Ω |
| Maximum |
50 MΩ |
|
| Capacitance |
| Accuracy* |
± (1.2%+2) |
| Max. Resolution |
1 nF |
| Maximum |
10,000 µF |
|
| Frequency |
| Accuracy* |
± (0.1%+1) |
| Max. Resolution |
0.01 Hz |
| Maximum |
100 kHz |
|
| Temperature |
| 179 - Accuracy* |
± (1.0%+10) |
| Max. Resolution |
0.1°C |
| Range |
-40°C/400°C |
|
| Note |
| * |
Accuracies are best accuracies for each function |
|
|
|
| Operating Temperature |
|
| Storage Temperature |
|
| Humidity (Without Condensation) |
|
0% - 90% (0°C - 35°C) |
|
0% - 70% (35°C -50°C) |
|
| Safety Specifications |
| Overvoltage category |
|
EN 61010-1 to 1000 V CAT III. |
|
EN 61010-1 to 600 V CAT IV. |
|
| Agency Approvals |
|
UL, CSA, TÜV listed and VDE Pending |
|
| Mechanical & General Specifications |
| Size |
|
| Weight |
|
| Warranty |
|
| Battery Life |
| Alkaline: |
~200 hours typical, without backlight |
|
Resources
User Manual
