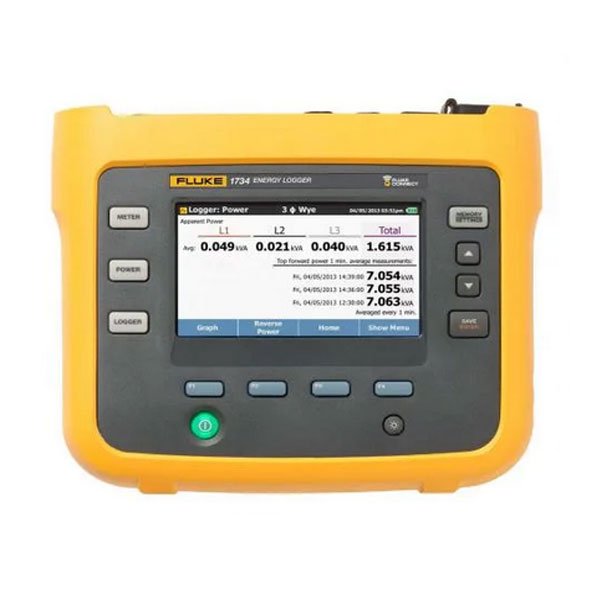

Fluke 1734 Three Phase Electrical Energy Logger Int'l Version with Fluke Connect
SKU: FLU1734/EUS
1734/EUS
DESCRIPTION
Features
Features
Specifications
Shipping & Delivery
Fluke 1734 Three Phase Electrical Energy Logger Int'l Version with Fluke Connect
The Fluke 1732 (without wifi) and 1734 (with wifi) Three Phase Electrical Energy Loggers deliver easy to use three phase power measurement data for discovering sources of electrical energy waste, overloaded circuits and help you perform routine load studies. Discover when and where energy in your facility is being consumed - from the service entrance to individual circuits. Access and share three phase power data remotely with your team via the Fluke Connect ® app so you can maintain safer working distances and make critical decisions in real-time, reducing the need for protective equipment, site visits and check-ins.
Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyze software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.
Discover the Fluke 1734 Three Phase Electrical Energy Logger Int'l Version with Fluke Connect at Mektronics Australia – your trusted source for quality tools and equipment!
Discover sources of electrical energy waste, identify energy savings opportunities, and conduct load studies.
-
Key measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
-
Convenient instrument powering: You can power the instrument directly from the measured circuit instead of mains outlets
-
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
-
Key measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
-
Fluke Connect ® compatible: View data locally on the instrument, via Fluke Connect mobile app and desktop software or through your facilities' WiFi infrastructure
-
Convenient instrument powering: Power instrument directly from the measured circuit
-
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
-
Measure all three phases: With included 3 flexible current probes
-
Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments. In fact, all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis
-
Optimized user interface: Quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
-
Bright, color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display
-
Complete "in-the-field" setup through the front panel or Fluke Connect:No need to return to the workshop for download and setup or to take a computer to the electrical panel
-
Fully integrated logging: Connect other Fluke Connect devices to the Fluke 1734 to simultaneously log up to two other measurement parameters, virtually any parameter available on a Fluke Connect wireless digital multimeter or module*
-
Energy Analyze Plus application software: Download and analyze every detail of energy consumption with our automated reporting
Includes: Current probes
|
Specifications |
|||||
|
Accuracy |
|||||
|
Parameter |
Range | Resolution | Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale) | ||
|
Voltage |
1000 V |
0.1 V |
±(0.2% + 0.01%) |
||
|
Current: Direct input |
i17xx-flex 1500 12" |
150 A |
0.1 A |
±(1% + 0.02%) |
|
|
1500 A |
1 A |
±(1% + 0.02%) |
|||
| i17xx-flex 3000 24" |
300 A |
1 A |
±(1% + 0.03%) |
||
|
3000 A |
10 A |
±(1% + 0.03%) |
|||
| i17xx-flex 6000 36" |
600 A |
1 A |
±(1.5% + 0.03%) |
||
|
6000 A |
10 A |
±(1.5% + 0.03%) |
|||
| i40s-EL clamp |
4 A |
1 mA |
±(0.7% + 0.02%) |
||
|
40 A |
10 mA |
±(0.7% + 0.02%) |
|||
|
Frequency |
42.5 Hz to 69 Hz |
0.01 Hz |
±(0.1%) |
||
|
Auxillary input |
±10 V dc |
0.1 mV |
±(0.2% + 0.02%) |
||
|
Voltage min/max |
1000 V |
0.1 V |
±(1% + 0.1%) |
||
|
Current min/max |
Defined by accessory |
Defined by accessory |
±(5% + 0.2%) |
||
|
THD on voltage |
1000% |
0.1% |
±0.5 |
||
|
THD on current |
1000% |
0.1% |
±0.5 |
||
|
Intrinsic Uncertainty ±(% of reading +% of range) ¹ |
|||||
|
Parameter |
Influence quantity | iFlex1500-12 | iFlex3000-24 | iFlex6000-36 | i40S-EL |
| 150 A / 1500 A | 300 A / 3000 A | 600 A / 6000 A | 4 A / 40 A | ||
|
Active Power P |
PF ≥ 0.99 |
1.2% + 0.005% |
1.2% + 0.0075% |
1.7% + 0.0075% |
1.2% + 0.005% |
|
Active Energy Ea |
PF ≥ 0.99 |
1.2% + 0.005% |
1.2% + 0.0075% |
1.7% + 0.0075% |
1.2% + 0.005% |
|
Apparent power S |
0 ≤ PF ≤ 1 |
1.2% + 0.005% |
1.2% + 0.0075% |
1.7% + 0.0075% |
1.2% + 0.005% |
|
Apparent Energy Eap |
0 ≤ PF ≤ 1 |
1.2% + 0.005% |
1.2% + 0.0075% |
1.7% + 0.0075% |
1.2% + 0.005% |
|
Reactive power Q |
0 ≤ PF ≤ 1 |
2.5% of measured apparent power |
|||
|
Reactive Energy Er |
0 ≤ PF ≤ 1 |
2.5% of measured apparent power |
|||
|
Power Factor PF |
- |
±0.025 |
|||
|
Displacement Power Factor |
- |
±0.025 |
|||
|
DBF/cosϕ |
- |
±0.025 |
|||
|
Additional uncertainty in% of range ¹ |
VP-N>250 V |
0.015% |
0.0225% |
0.0225% |
0.015% |
|
¹Range = 1000 V x Irange Reference conditions:
|
|||||
