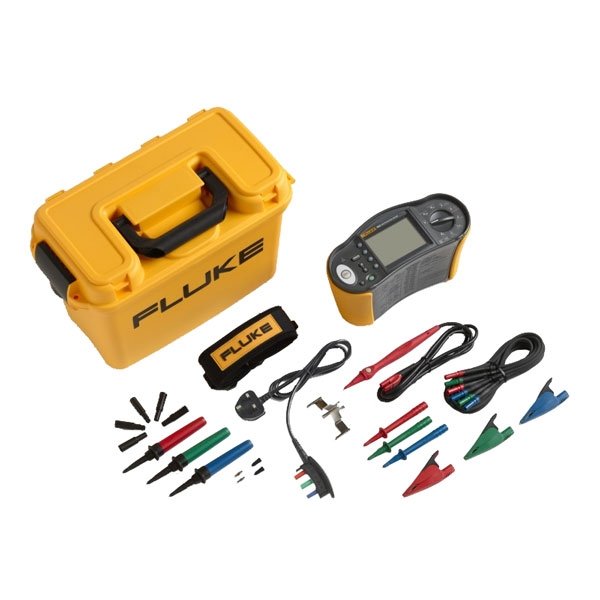

Image for Illustrative Purposes Only
Fluke 1662 Multifunction Testers
SKU: FLUFLK-1662AU
FLK-1662AU
DESCRIPTION
Features
Includes
Specifications
Specifications
Specifications
Shipping & Delivery
Fluke 1662 Multifunction Testers
A solid, basic installation tester.
The Fluke 1662 Multifunction Installation Tester gives you Fluke reliability, simple operation and all the testing power you need for day-in, day-out installation testing.
The Fluke 1662 puts more power in your hands by quickly and efficiently testing to all local regulations.
Functions-
Measurement function
-
Voltage & frequency
-
Wiring polarity checker, detects broken N wires
-
Insulation resistance
-
Continuity & resistance
-
Measure motor windings with continuity test
-
Loop & line resistance
-
Prospective earth fault current (PEFC/IK)
-
Prospective short-circuit current (PSC/IK)
-
RCD switching time
-
RCD tripping level (ramp test)
-
Measures trip time & current for RCD type A & AC in one test
-
RCD variable current
-
Automatic RCD test sequence
-
Phase sequence indicator
Discover the Fluke 1662 Multifunction Testers at Mektronics Australia – your trusted source for quality tools and equipment!
-
On/Off switchable auto-start for RCD & Looptest
-
Self-test
-
Illuminated display
-
Time and date (when used with optional FlukeView software)
-
6x AA (IEC LR6) cell batteries
-
C1600 hard carrying case
-
Zero adapter
-
Heavy duty mains cord
-
STD standard test lead set
-
C1600 hard carrying case
-
Padded carrying and waist strap
-
Quick reference guide
-
TP165X remote control probe and lead
-
User's manual on CD-ROM
|
|
||
| AC voltage measurement | ||
|
Range |
500 V |
|
|
Resolution |
0.1 V |
|
|
Accuracy 45 Hz - 66 Hz |
0.8% + 3 |
|
|
Input impedance |
360 kΩ |
|
|
Overload protection |
660 V rms |
|
| Continuity testing (RLO) | ||
|
Range (autoranging) |
20 Ω / 200 Ω / 2000 Ω |
|
|
Resolution |
0.01 Ω / 0.1 Ω / 1 Ω |
|
|
Open Circuit Voltage |
>4 V |
|
| Insulation resistance measurement (RISO) | ||
|
Accuracy of tTest voltage (at rated test current) |
+10%, -0% |
|
|
Test voltage |
100 V 250 V 500 V 1000 V |
|
|
Insulation resistance range |
20 MΩ / 50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ |
|
|
Resolution |
0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ |
|
|
Test current |
1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ |
|
| Loop and line impedance (ZI) | ||
|
Range |
10 Ω / 0.001 Ω / High current mΩ mode |
|
|
Resolution |
0.01 Ω / 0.1 Ω / 1 Ω |
|
| Prospective earth fault current, PSC test | ||
|
Range |
1000 A / 10 kA (50 kA) |
|
|
Resolution |
1 A / 0.1 kA |
|
|
Computation |
Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively. |
|
| RCD testing, RCD types tested | ||
|
RCD Type |
A4, AC ¹, G ², S ³ |
|
|
Notes |
¹Responds to AC ²General, no delay ³Time delay 4Responds to pulsed signal 5Responds to smooth DC signal |
|
| Tripping speed test (ΔT) | ||
|
Current settings ¹ |
10-30-100-300-500-1000 mA - VAR 10-30-100 mA |
|
|
Multiplier |
x ½, x 1 x 5 |
|
|
Measurement range |
RCD Type G |
310 ms 50 ms |
|
RCD Type S |
510 ms 160 ms |
|
|
Notes |
¹1000 mA type AC only 700 mA maximum type A in VAR mode VAR mode not available for type B. |
|
| RCD/FI-Tripping Current Measurement/Ramp Test (IΔN) | ||
|
Current range |
30% to 110% of RCD rated current ¹ |
|
|
Step size |
10% of IΔN ² |
|
|
Dwell time |
Type G |
300 ms/step |
|
Type S |
500 ms/step |
|
|
Measurement accuracy |
±5% |
|
|
Specified trip current ranges (EN 61008-1) |
50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (≤10 mA) 50% to 200% for Type B ²5% for Type B |
|
|
Notes |
¹30% to 150% for Type A IΔN > 10 mA 30% to 210% for Type A IΔN = 10 mA 20% to 210% for Type B |
|
| Phase Sequence Indication | ||
|
Icon |
|
|
|
|
||
|
Size (L x W x H) |
10 x 25 x 12.5 cm |
|
|
Weight (incl. batteries) |
1.3 Kg |
|
|
Battery size, quantity |
Type AA, 6 ea. |
|
|
Sealing |
IP-40 |
|
|
Safety |
Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition |
|
|
Overvoltage |
CAT III / 500V; CAT IV 300V |
|
|
Performance |
EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition |
|
Phase Sequence indicator is active.SHIPPING
