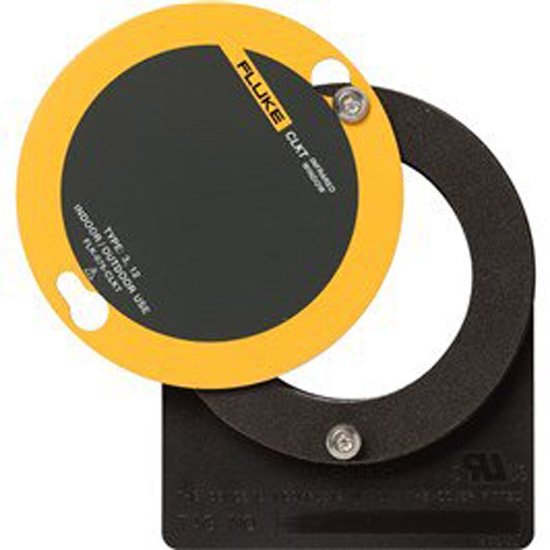

Fluke 075 CLKT IR Window for Outdoor and Indoor Applications
SKU: FLUFLK-075-CLKT
FLK-075-CLKT
DESCRIPTION
Features
DESCRIPTION
Includes
Specifications
Shipping & Delivery
Fluke 075 CLKT IR Window for Outdoor and Indoor Applications
The FLK-075-CLKT is a C-range Infrared Window for use with Fluke IR instruments. Inspections are now conducted quickly, easily and safer than they were before. The CLIRVU® coating - exclusive to Fluke infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments. Each Fluke infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs. The 3460387 CLKT infrared window comes complete with a security access key, installation instructions and self-adhesive drilling template. Engineered and tested to withstand electric-arcs up to 50kA for 30 cycles.
Discover the Fluke 075 CLKT IR Window for Outdoor and Indoor Applications at Mektronics Australia – your trusted source for quality tools and equipment!
- For 5 minutes or less installation and auto-ground consider the CV300
- IP65 Protection rating
- CLIRVU coating
- Shortwave IR capable
- Mid-wave IR capable
- Long-wave IR capable
- Ultraviolet (UV) capable
- Visual capable
- Fusion capable
Fluke 075 CLKT IR Window for Outdoor and Indoor Applications
- Test & Measurement
Fluke 075-CLKT
Includes:
- 3 In. (75mm) C-Range IR Window
- Kwik Twist
| Optic Data Specifications | ||
| Crystal insert diameter | 75 mm (2.96 in) | |
| Viewing aperture diameter | 68 mm (2.7 in) | |
| Viewing aperture area | 3632 mm2 (5.63 in2) | |
| Thickness | 2 mm (0.08 in) | |
| ClirVu coating | Yes | |
| Shortwave IR capable | Yes | |
| Midwave IR capable | Yes | |
| Longwave IR capable | Yes | |
| Ultraviolet (UV) capable | Yes | |
| Visual capable | Yes | |
| Fusion capable | Yes | |
| Underwriters Laboratories (UL) recognized | Yes | |
| UL50 environmental | Type 3/12 | |
| UL746C | N/A (Polymer Free) | |
| UL94 | N/A (Polymer Free) | |
| Canadian Standards Association (CSA) approval | Yes | |
| Environmental | Type 3/12 | |
| KEMA (Arc-Testing) | ||
| ANSI C37.20.7 | 50 kA for 30 cycles @ 60 Hz | |
| EEMACS 14-1 Type-B | 40 kA for 30 cycles @ 60 Hz | |
| ASTA (Arc-Testing) | ||
| IEC 62271 | 20 kA for 5 cycles @ 50 Hz | |
| TUV | ||
| Cyclic humidity withstand | Yes | |
| Vibration withstand | Yes | |
| NEMKO | ||
| Resistance of insulating materials to 100° | Yes | |
| Resistance of insulating material to ball pressure (Brinell) | Yes | |
| Glow-wire test 650°C | Yes | |
| Lloyds Register | ||
| Up to 11 kV marine switchgear, indoor or outdoor | Yes | |
| General Specifications | ||
| Maximum temperature | Gaskets | 250°C (482°F) |
| Body | 659°C (1219°F) | |
| Optic | 1400°C (2552°F) | |
| Gaskets | Low smoke and fume (LSF) compliant silicone | |
| IP rating | IP65 | |
| NEMA rating | Type 3/12 (UL and CSA Third Party Certified) | |
| Vibration rating | IEC60068-2-6 | |
| Humidity rating | IEC60068-2-3 | |
| Pull-out strength | Up to 630 kg (1388 lb) | |
| Warranty | Lifetime replacement against manufacturing defects | |
