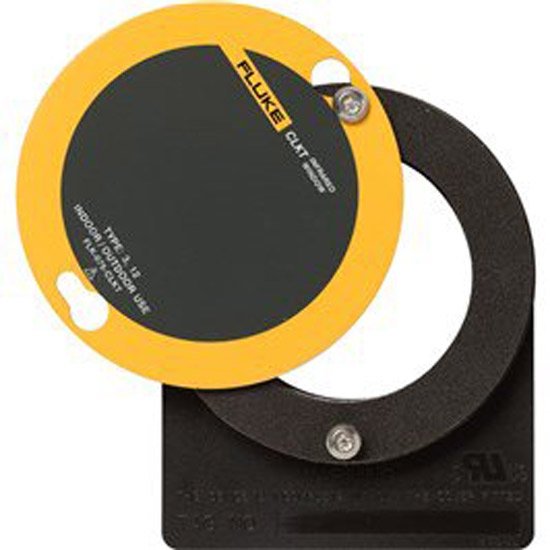

Image for Illustrative Purposes Only
Fluke 050 CLKT IR Window for Outdoor and Indoor Applications
SKU: FLUFLK-050-CLKT
FLK-050-CLKT
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Fluke 050 CLKT IR Window for Outdoor and Indoor Applications
Save Time and Conduct More Efficient Electrical Infrared Inspections
Once you've installed a Fluke infrared window there is no more need to power down or remove panel doors – you may never have to open the panel door again. Inspections are now conducted quickly, easily and safer than they were before.
Your greatest investment is not what's behind the panel door; your priority is to offer the ultimate protection for the electricians, engineers and inspectors who risk their lives every day doing their jobs.
Discover the Fluke 050 CLKT IR Window for Outdoor and Indoor Applications at Mektronics Australia – your trusted source for quality tools and equipment!
- 3 Inches (75 Millimeter) C-Range IR Window, KWIK TWIST
- Engineered and tested to withstand electric-arcs up to 50kA for a huge 30 cycles
- Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
- Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
- The CLIRVU coating – exclusive to Hawk IR Windows - seals the optic prior to assembly to protect against moisture degradation.
- The Quadraband optic is IR-Fusion compatible allowing the thermographer to see potential problems both ways.
- Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
Fluke 050-CLKT
Includes:
- 2 In. (50mm) C-Range IR Window
- Kwik Twist
| Optic Data Specifications | ||
| Crystal insert diameter | 100 mm (3.94 in) | |
| Viewing aperture diameter | 89 mm (3.5 in) | |
| Viewing aperture area | 6322 mm2 (9.79 in2) | |
| Thickness | 4 mm (0.16 in) | |
| ClirVu coating | Yes | |
| Shortwave IR capable | Yes | |
| Midwave IR capable | Yes | |
| Longwave IR capable | Yes | |
| Ultraviolet (UV) capable | Yes | |
| Visual capable | Yes | |
| Fusion capable | Yes | |
| Underwriters Laboratories (UL) recognized | Yes | |
| UL50 environmental | Type 3/12 | |
| UL746C | N/A (Polymer Free) | |
| UL94 | N/A (Polymer Free) | |
| Canadian Standards Association (CSA) approval | Yes | |
| Environmental | Type 3/12 | |
| KEMA (Arc-Testing) | ||
| ANSI C37.20.7 | 50 kA for 30 cycles @ 60 Hz | |
| EEMACS 14-1 Type-B | 40 kA for 30 cycles @ 60 Hz | |
| ASTA (Arc-Testing) | ||
| IEC 62271 | 20 kA for 5 cycles @ 50 Hz | |
| TUV | ||
| Cyclic humidity withstand | Yes | |
| Vibration withstand | Yes | |
| NEMKO | ||
| Resistance of insulating materials to 100° | Yes | |
| Resistance of insulating material to ball pressure (Brinell) | Yes | |
| Glow-wire test 650°C | Yes | |
| Lloyds Register | ||
| Up to 11 kV marine switchgear, indoor or outdoor | Yes | |
| General Specifications | ||
| Maximum temperature | Gaskets | 250°C (482°F) |
| Body | 659°C (1219°F) | |
| Optic | 1400°C (2552°F) | |
| Gaskets | Low smoke and fume (LSF) compliant silicone | |
| IP rating | IP65 | |
| NEMA rating | Type 3/12 (UL and CSA Third Party Certified) | |
| Vibration rating | IEC60068-2-6 | |
| Humidity rating | IEC60068-2-3 | |
| Pull-out strength | Up to 630 kg (1388 lb) | |
| Warranty | Lifetime replacement against manufacturing defects | |
