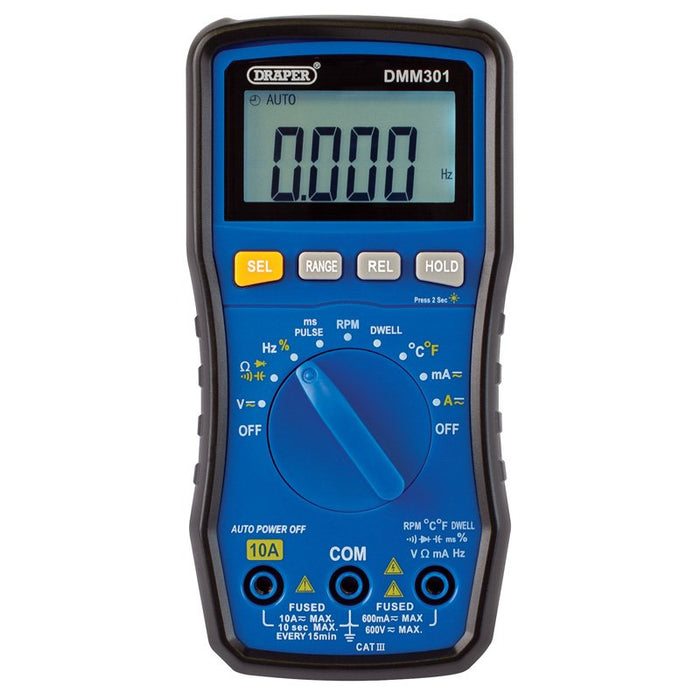

Draper Tools Automotive Digital Multimeter 1 x Temperature Probe 1 x Inductive Clamp 41822
SKU: DRA41822
41822 DMM301
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Draper Tools Automotive Digital Multimeter 1 x Temperature Probe 1 x Inductive Clamp 41822
Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x test probes.
Discover the Draper Tools Automotive Digital Multimeter 1 x Temperature Probe 1 x Inductive Clamp 41822 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing
-
Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features
-
Supplied with test leads, temp probe, inductive clamp, and a case
-
1 x Automotive Digital Multimeter
-
1 x Temperature Probe, 1 x Inductive Clamp
| AC Amps | 6mA/600mA/6A/10A |
| AC Current | 60mA/600mA/6A/10A |
| AC Voltage | 6V/60V/600V |
| Automatic Power Off | Yes |
| Capacitance | 40nF/400nF/4µF/40µF/400µF/4000µF |
| DC Amps | 6mA/600mA/6A/10A |
| DC Current | 60mA/600mA/6A/10A |
| DC Voltage | 6V/60V/600V |
| Diode on/off Test | Yes |
| Dimensions | 184mm x 186mm x 72mm |
| Duty Ratio | Yes |
| Dwell | 4CYL, 6CYL, 8CYL |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Resistance (Ohms) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold | Yes |
| TACH | RPM4 120-20000, RPM2 60-20000 |
| Temperature | -20 to 1000ºC |
| Temperature Range | -20°C - 1000°C/-4°F - 1832°F |
| Weight | 507g (approx.) |
| Battery Type | 1 x PP3 9V (not supplied) |
