Desco Ws Aware Monitor 4.20Ma Out Standard Remotes
SKU: DESCTC061-3-242-WW
CTC061-3-242-WW
DESCRIPTION
Features
Shipping & Delivery

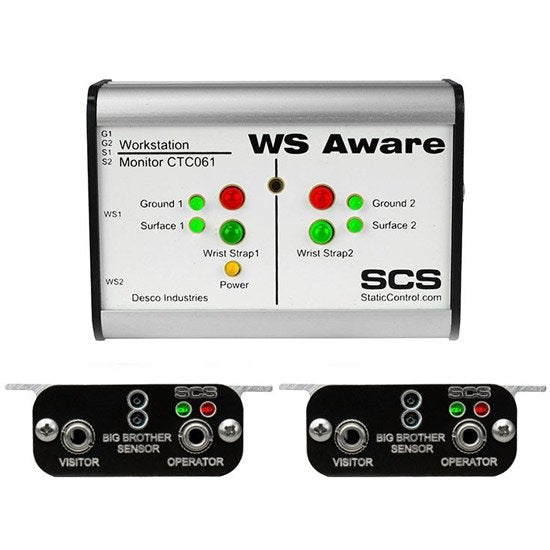

Desco Ws Aware Monitor 4.20Ma Out Standard Remotes
Dual Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
Digital Signal Processing Technology
Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
Operator Body Voltage Detection
Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
EMI Monitoring on Metal Grounds
Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
System Includes Monitor and Two Remote Terminals
Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
Discover the Desco Ws Aware Monitor 4.20Ma Out Standard Remotes at Mektronics Australia – your trusted source for quality tools and equipment!
- Remote Terminals with Big Brother Sensor
- Detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items
- Analog Data Output (4.20 mA)
- Interfaces with data acquisition systems that accept a 4.20 mA input signal
- Use with Dual-Wire Wrist Straps
- See SCS Dual-Wire Wrist Straps
- Replaceable Dual-Wire Operator Jack
- Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder
- Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
- NIST Calibrated with Certificate Included
- Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
- 100-240VAC Power Adapter with Interchangeable Plugs
- Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe
- Assembled in the United States of America with Globally Sourced Materials
