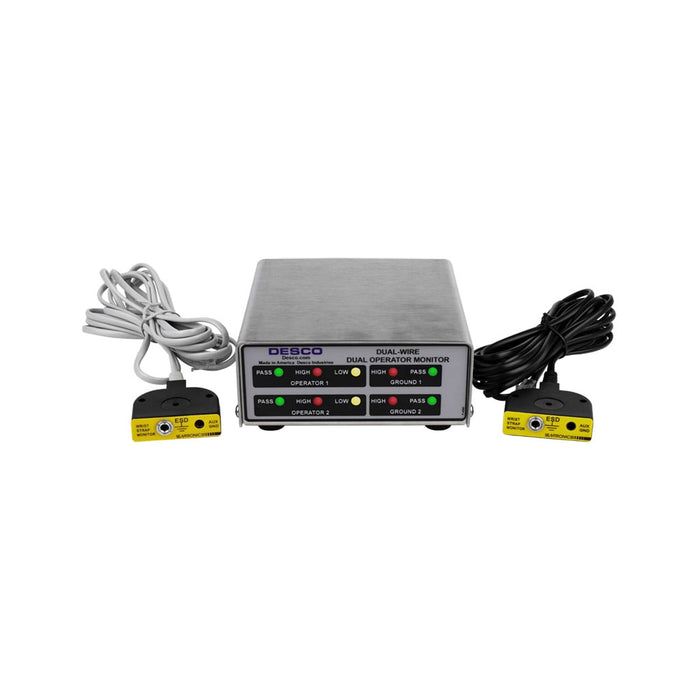

Desco Dual-Wire Dual Operator Monitor
SKU: DES19662
19662
DESCRIPTION
Shipping & Delivery
Desco Dual-Wire Dual Operator Monitor
-
NEW enclosure design features access slot to operator test limit and test voltage switches and includes embedded hardware for 19663 Mounting Brackets accessory
-
Dual Station Continuous Monitor for 2 Operators and 2 Worksurfaces: Continuously monitors the path-to-ground integrity of two operators and two ESD worksurfaces independently. Use with dual-wire wrist straps.
-
Dual Conductor Resistance Technology1: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 megohm safety resistor
-
Adjustable 5V or 8V Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
-
Adjustable (10 or 35 megohms) Operator Upper Test Limits2: Sets alarm limits to ESD susceptible device limits or other requirements
-
<1 Second Alarm Response Time: Identifies failures and intermittencies that inferior technologies miss
-
Replaceable Operator Remote Terminals: Replaces operator remotes should their jacks become worn (operator 1 remote, operator 2 remote)
-
Calibration Verification: Use the 50524 Dual-Wire Monitor Limit Comparator to check the test limits without removing from workstations
-
NIST Calibrated – Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
-
100-240VAC Power Adapter with Interchangeable Plugs: Works with standard electrical systems in North America, United Kingdom, Japan, Asia, and Europe
-
Made in the United States of America
-
Designed in accordance with ESD TR20.20-2016 Section: 18.3.2 Dual Conductor Resistance Continuous Monitors.
-
The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106ohms with product qualification testing per ANSI/ESD S1.1. The test range of the operator monitored circuits is 1.91 megohms to 10 megohms or 35 megohms. The 35 megohms high test limit is the default/factory set range. The 10 megohm range should be used when operators are handling more sensitive ESD susceptible devices or to detect failures in the wrist strap before reaching the 35 megohms limit.
Discover the Desco Dual-Wire Dual Operator Monitor at Mektronics Australia – your trusted source for quality tools and equipment!
