Desco Digital Surface Resistance Meter Kit
SKU: DES19290
19290
DESCRIPTION
Includes
Resources
Shipping & Delivery

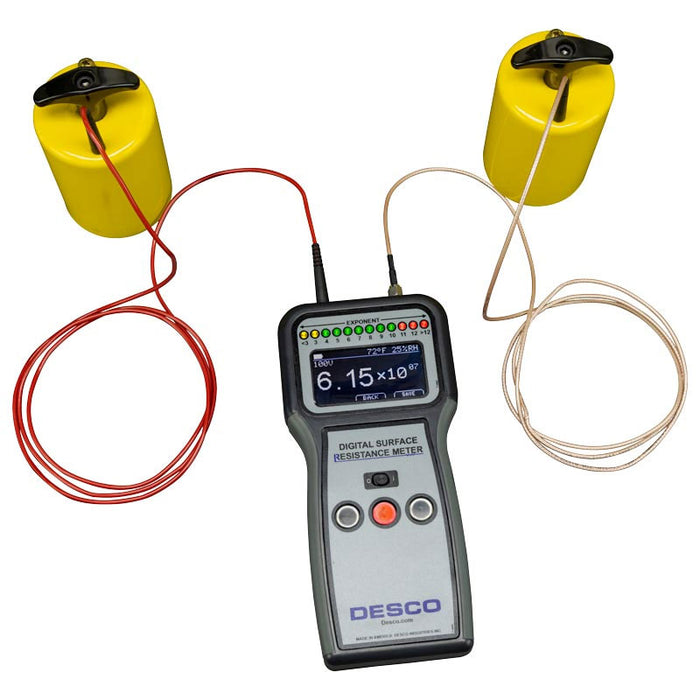

Desco Digital Surface Resistance Meter Kit
-

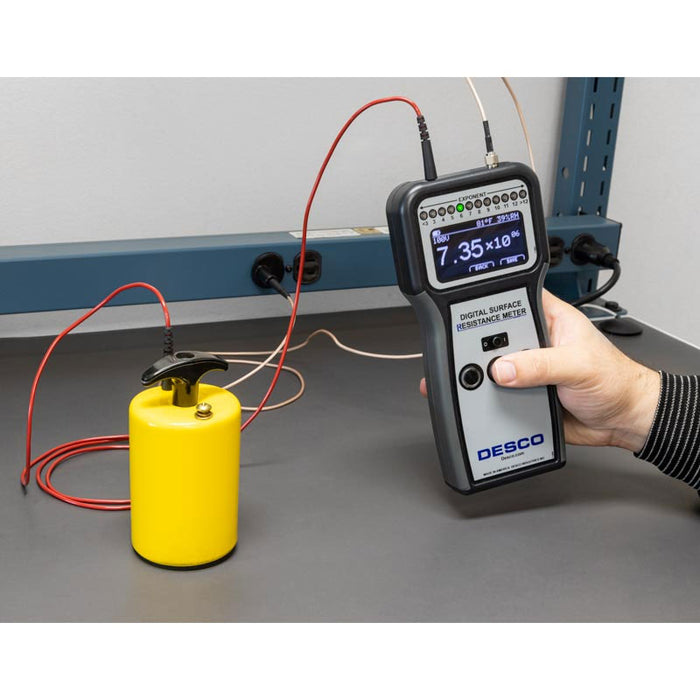

Large OLED Display: Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
-
Internal Memory: Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.
-
Measurement Stability Modes: Sets the 15-second electrification period for test requirements*
-
Electrode Spacers: Spaces the 5 lbs. electrodes to 10 and 36 inches for resistance point-to-point (Rtt) measurement requirements of ANSI/ESD S.1 and ANSI/ESD S4.1
-
Measurement Location Labels (Pack of 25): Labels and tracks areas and materials measured for surface resistance
-

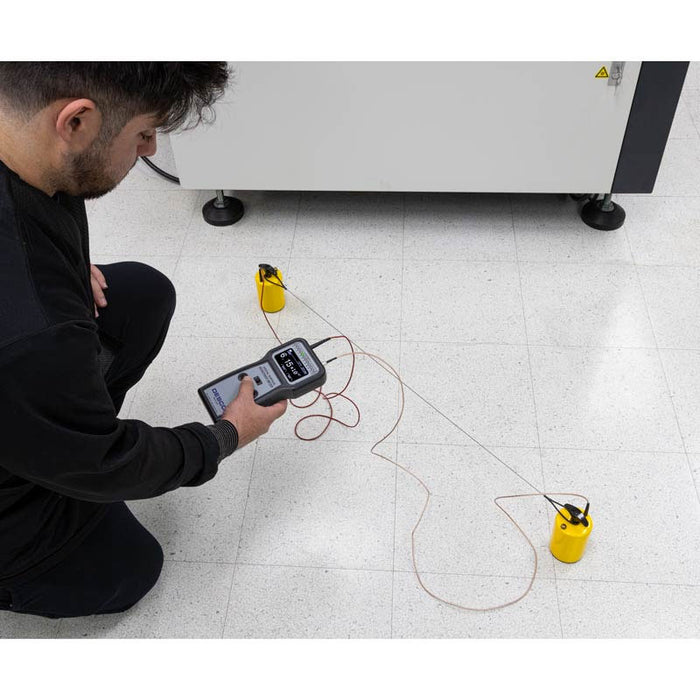

Digital Compliance Verification Surface Resistance Meter Kit: Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
-
Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms: Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
-
Under Load Test Voltages (10V or 100V ±5%): Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
-
50005 Concentric Ring Probe Accessory: Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
-
19295 Handheld Electrode Accessory: Meets resistance measurement requirements of TR53, ANSI/ESD STM97.1 and other documents
-
NIST Calibrated with Certificate Included: Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
-
Made in the United States of America
*Measurement Stability Modes: Auto Stabilization enables a 15-second electrification period when the measured resistance is 1 x 1010 ohms or greater to maintain test accuracy.
Fixed Stabilization complies with ANSI/ESD S4.1 and enables a 15-second electrification period when the measured resistance is 1 x 106 ohms or greater.
Discover the Desco Digital Surface Resistance Meter Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-

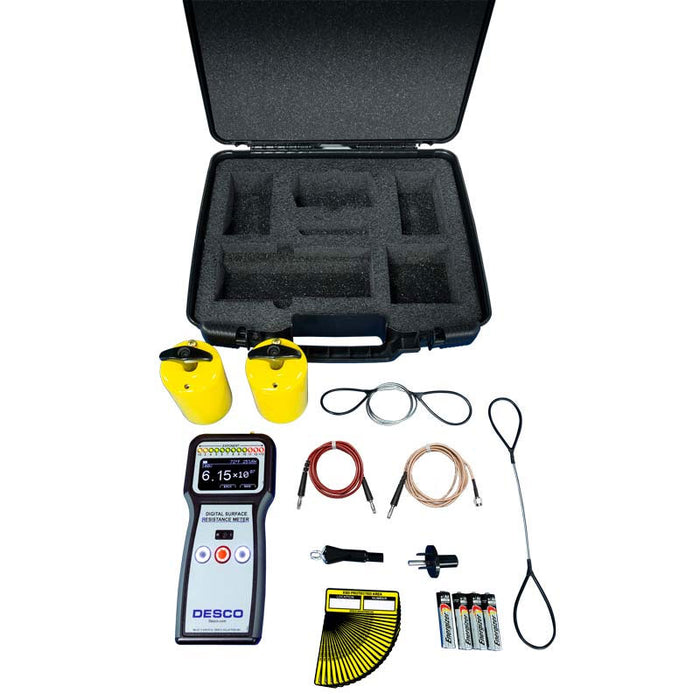

1 x Digital Surface Resistance Meter
-
2 x Test Leads, 5' Length
-
2 x 5 lbs. Electrodes
-
1 x Electrode Spacer, 10"
-
1 x Electrode Spacer, 36"
-
4 x AA Alkaline Batteries
-
1 x Ground Plug Adapter
-
1 x Gator Clip
-
25 x Measurement Location Labels
-

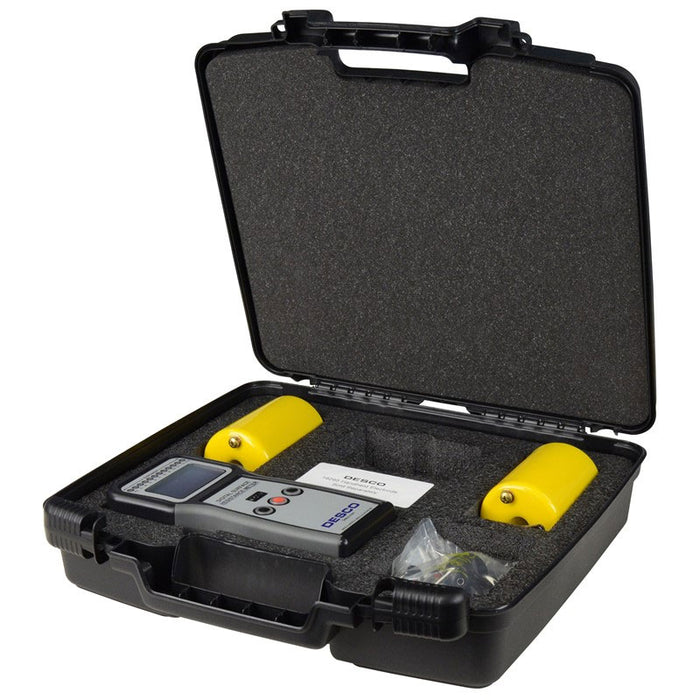

1 x Plastic Carrying Case
-
1 x Certificate of Calibration
