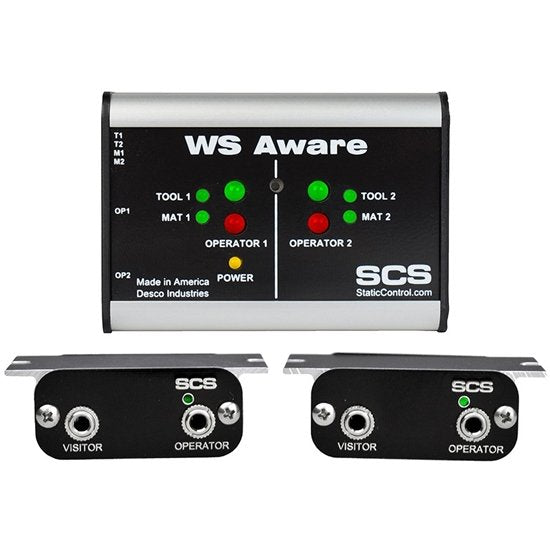

Desco 770061 - WS Aware Monitor, Standard Remotes, Ethernet Output

• NEW Ethernet Connectivity
  Provides network communication with Static Management Program (SMP). Data collected through SMP includes operator resistance, operator voltage, mat resistance, metal tool impedance and metal tool EMI voltage.
• NEW Optical Relay Terminal
  Pairs with lights and buzzers for increased visibility.
• Dual Workstation Continuous Monitor
  Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01.
• Digital Signal Processing Technology
  Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components.
• Operator Body Voltage Detection
  Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item.
• EMI Monitoring on Metal Grounds
  Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage.
• System Includes Monitor and Two Remote Terminals
  Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
• Use with Dual-Wire Wrist Straps
  See SCS Dual-Wire Wrist Straps.
• Replaceable Dual-Wire Operator Jack
  Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder.
• Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
  See SCS item CTE701.
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
• 100-240VAC Power Adapter with Interchangeable Plugs
  Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe.
• Assembled in the United States of America with Globally Sourced Materials
