Desco 19342 Mini Monitor with Universal Power Adapter
SKU: DES19342
19342
DESCRIPTION
Videos
Shipping & Delivery

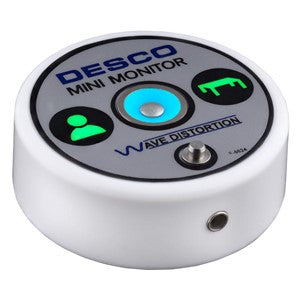

Desco 19342 Mini Monitor with Universal Power Adapter
-
Single Workstation Continuous Monitor: Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
-
NEW Illuminated Enclosure¹: Makes the status of the operator and worksurface highly visible to the operator and supervisor
-

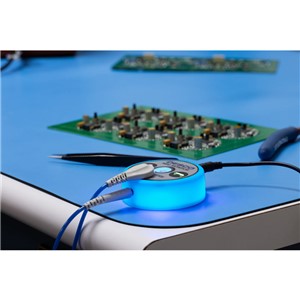

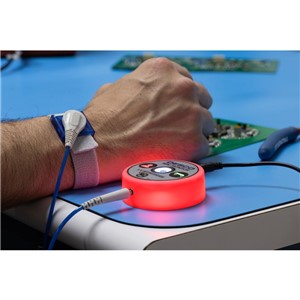

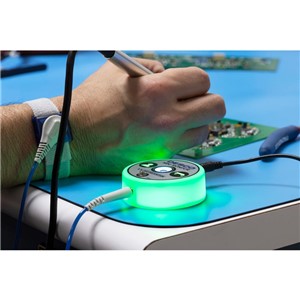

IMPROVED Continuous Visual and Audible Alarms: Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode
-
NEW Park Delay Timer and ParkSnap™: Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
-
NEW Mat Monitor Switch: Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
-
NEW Audible Alarm Adjustment: Sets the audible alarm volume from loud to louder
-
Wave Distortion Technology: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground² and the presence of its 1 megohm safety resistor
-
Threaded Worksurface Grounding and Mounting: Grounds and monitors the worksurface with no additional wire
-
Single-Wire Impedance Design: Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
-
1.2 Volt Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
-
<50 Millisecond Alarm Response Time: Identifies failures and intermittencies that inferior technologies miss
-
Desco 19344 Ring Magnets: Mounts the monitor in areas without a worksurface
-
Calibration Verification: Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
-

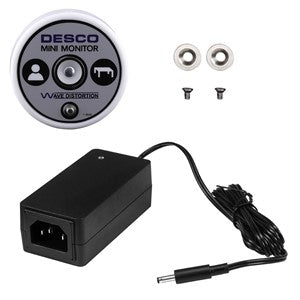

100-240VAC Safety Certified Power Adapter with IEC C14 Style Inlet: Connects to a power cord with an IEC C13 connector. See items 50545 and 50546.
-
Made in the United States of America
Discover the Desco 19342 Mini Monitor with Universal Power Adapter at Mektronics Australia – your trusted source for quality tools and equipment!
