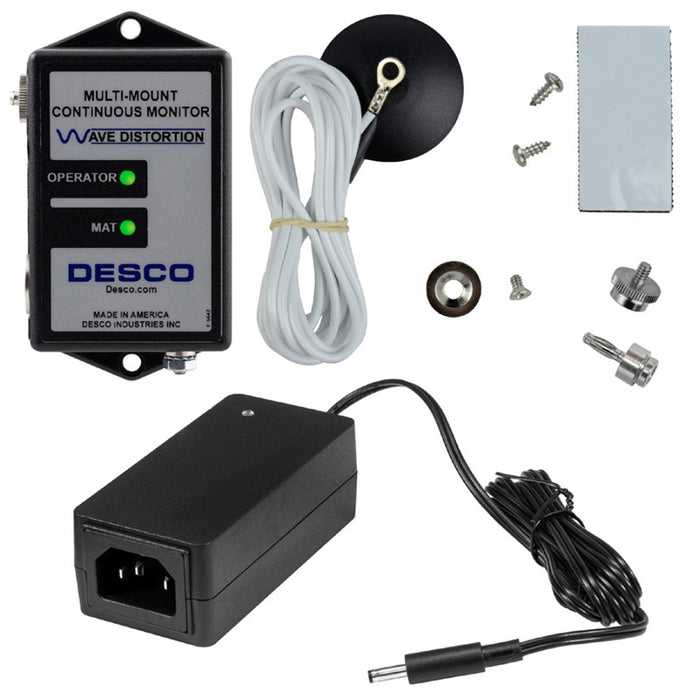

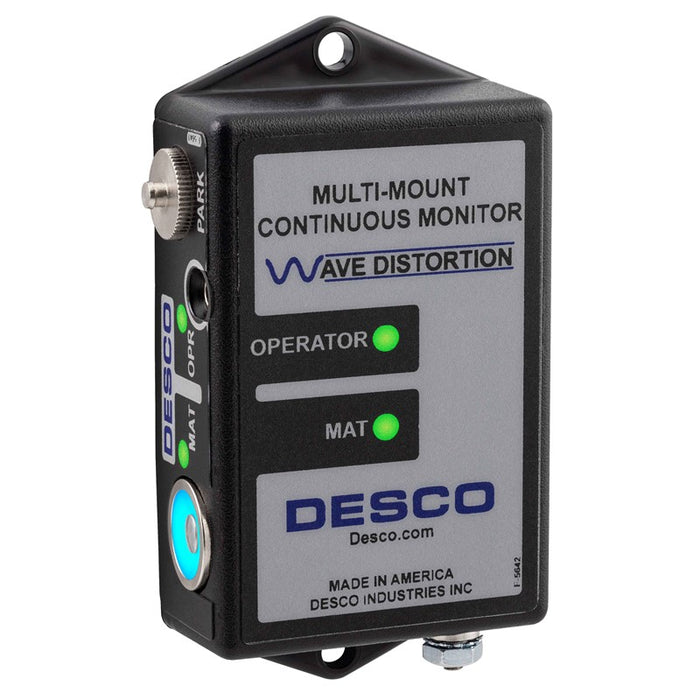

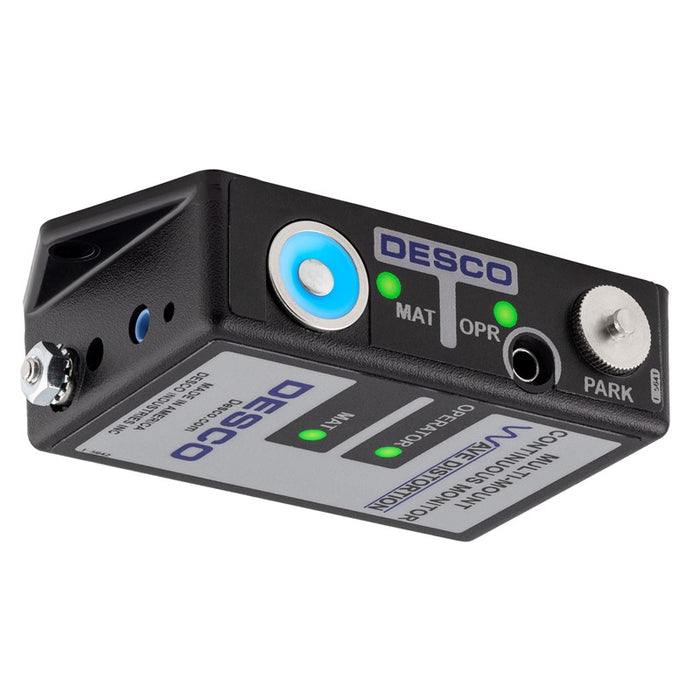

Desco 19337 Multi-Mount Continuous Monitor with Universal Plug
SKU: DES19337
19337
Features
Shipping & Delivery
-

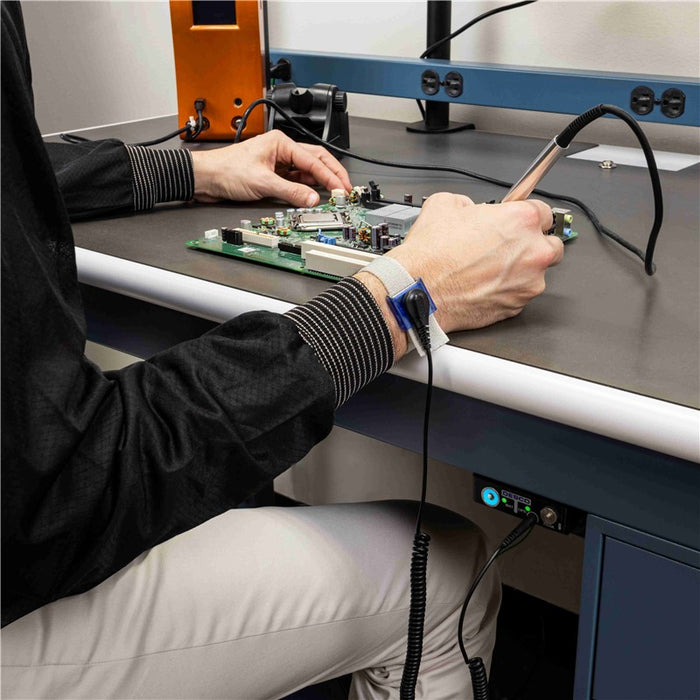

Single Workstation Continuous Monitor: Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
-
Park Delay Timer and ParkSnap™: Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
-

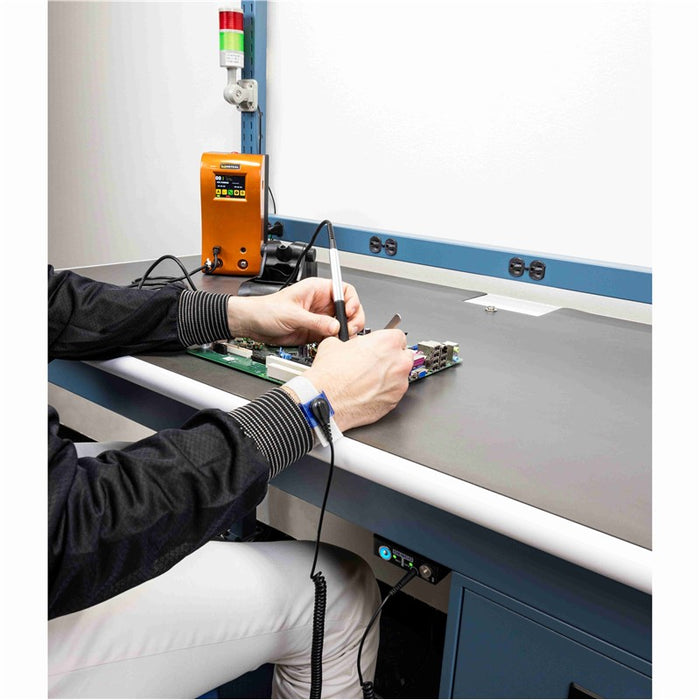

Light Tower Compatibility: Connects with the 19332 Light Tower accessory
-
Wave Distortion Technology: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
-
Mat Monitor Switch: Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
-
Audible Alarm Adjustment: Sets the audible alarm volume from loud to louder
-

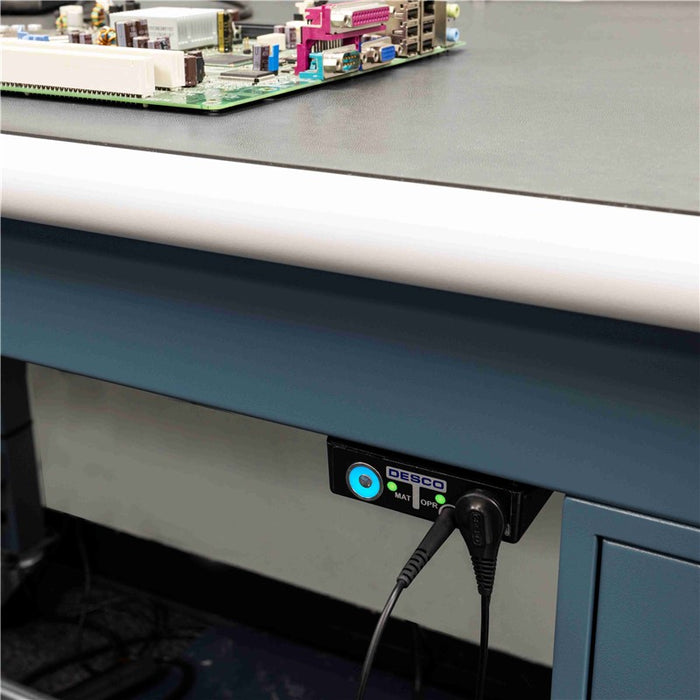

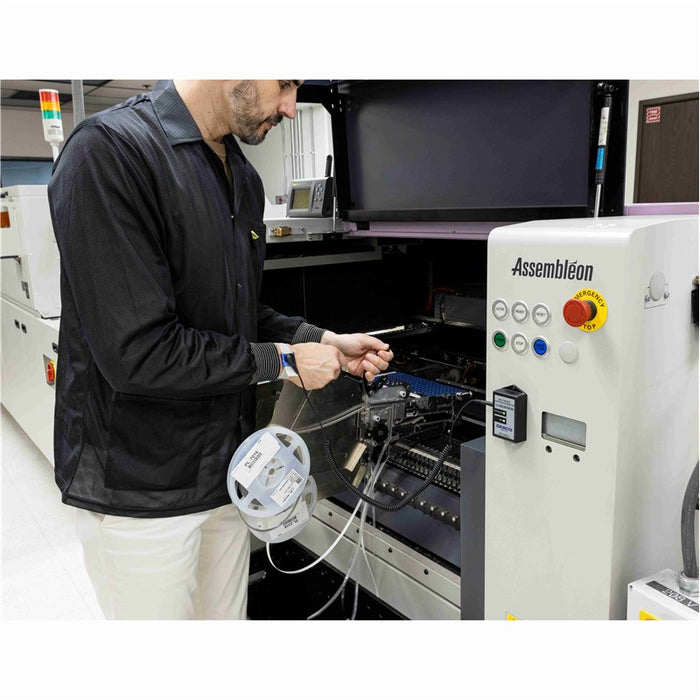

Enclosure with Mounting Tabs: Installs in workbench and equipment environments
-
Single-Wire Impedance Design: Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
-
1.2 Volt Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
-
<50 Millisecond Alarm Response Time: Identifies failures and intermittencies
-
Calibration Verification: Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
-
NIST Calibrated – Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
-
100-240VAC NRTL Listed Power Adapter with IEC C14 Style Inlet: Connects to a power cord with an IEC C13 connector.
-
Made in the United States of America
*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing perANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
