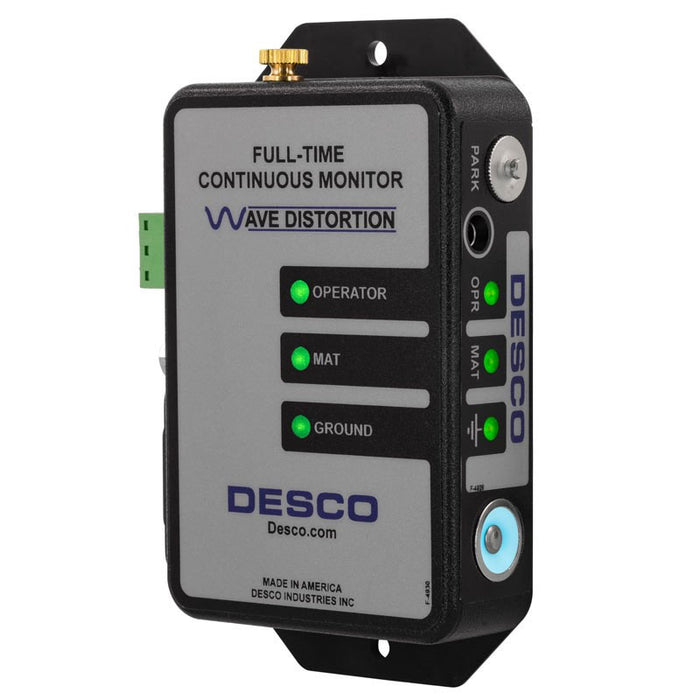

Desco 19330 Ful-Time Continuous Monitor
Image for Illustrative Purposes Only
Desco Logo

Desco 19330 Ful-Time Continuous Monitor

SKU: DES19330

$677.78

EX. GST
$745.56
INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

Features
Shipping & Delivery

  • Single Workstation Continuous Monitor: Continuously monitors the path-to-ground integrity of one operator, one ESD worksurface, and the electrical ground used to by the monitor.

  • Monitored Ground Terminal: Provides a verified ground point for mats, carts, tools, and other items. Connect with the 09842 Multi-Ground Hub.

  • Light Tower Jack: Connects with 19332 Light Tower Accessory

  • Auxiliary Jack: Connects with 19333 Power Relay Accessory

  • Wave Distortion Technology: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor

  • AC Outlet Monitor Circuit: Verifies the wiring of an AC outlet and continuously monitors its path-to-ground integrity; fulfills the ANSI/ESD S6.1 section 6.3.1 requirement

  • Park Delay Timer and Park Snap: Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm

  • Embedded Relay Terminal: Activates when a failure is reported by the monitor. Integrates with electronic locks, lights, and buzzers.

  • Mat Monitor Switch: Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface

  • Audible Alarm Adjustment: Sets the audible alarm volume from loud to louder

  • Enclosure with Mounting Tabs: Installs in workbench and equipment environments

  • Single-Wire Impedance Design: Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0

  • 1.2 Volt Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components

  • <50 Millisecond Alarm Response Time: Identifies failures and intermittencies

  • Continuous Visual and Audible Alarms: Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs

  • Calibration Verification: Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations

  • NIST Calibrated – Original Calibration Certificate can be Downloaded Here

    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.

  • Made in the United States of America

Discover the Desco 19330 Ful-Time Continuous Monitor at Mektronics Australia – your trusted source for quality tools and equipment!
