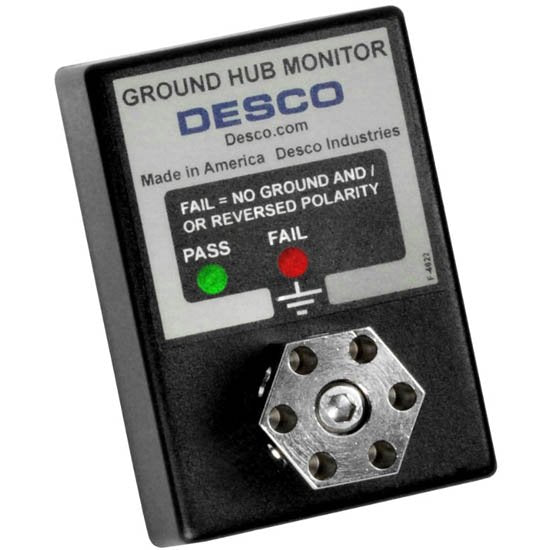

Image for Illustrative Purposes Only
Desco 19224 Ground Hub Continuous Monitor, 220VAC
SKU: DES19224
19224
DESCRIPTION
Features
Shipping & Delivery
Desco 19224 Ground Hub Continuous Monitor, 220VAC
The Desco Ground Hub Continuous Monitor confirms the integrity of the resistance path from the common ground point to electrical ground. It is designed in accordance with ESD TR 12-01 to “monitoring equipment ground connections.”
When the Ground Hub Continuous Monitor is plugged into an AC outlet, the green LED illuminates when both the outlet’s wiring is correct and the path to equipment ground via the equipment grounding conductor is intact. The monitor provides 12 verified ground points when in PASS condition. The red LED illuminates when either the outlet’s wiring is incorrect or the path to equipment ground is defective.
The outlet ground line is tested by measuring voltage between it and the neutral line. It is normal to have a few volts of AC induced on the neutral line. If the Ground Hub Continuous Monitor measures only a few volts, the ground line to neutral impedance is low and the ground line would make a suitable ESD ground point. If the monitor measures more than just a few volts between ground and neutral, this indicates either that they are not referenced to each other or that the outlet and associated wiring should be checked for loose connections. In this case, the Ground Hub Continuous Monitor will sound a warning alarm and display a red FAIL indication and should not be used for an ESD grounding point until corrected.
Discover the Desco 19224 Ground Hub Continuous Monitor, 220VAC at Mektronics Australia – your trusted source for quality tools and equipment!
-
Monitors AC Outlet’s Wiring and Path to Earth Ground
Continuously monitors the path to ground integrity of the outlet meeting the ANSI/ESD S6.1 requirement for verifying wiring orientation. -
Constant Visual Indicator
LEDs provide a visual indication that outlet is properly wired for grounding purposes of an in an ESD Control Plan. -
Visual and Audio Fault Alarms
Alarms activate instantly when a failure occurs, alerting user and supervisor of a problem. -
Six Banana Jacks and Six Screws for #8 Ring Terminals
Provides numerous groundable points for wrist straps, mats, carts, tools, and other items. May also be connected to other grounding hubs. See Part# 09837 -
is made in the United States of America
