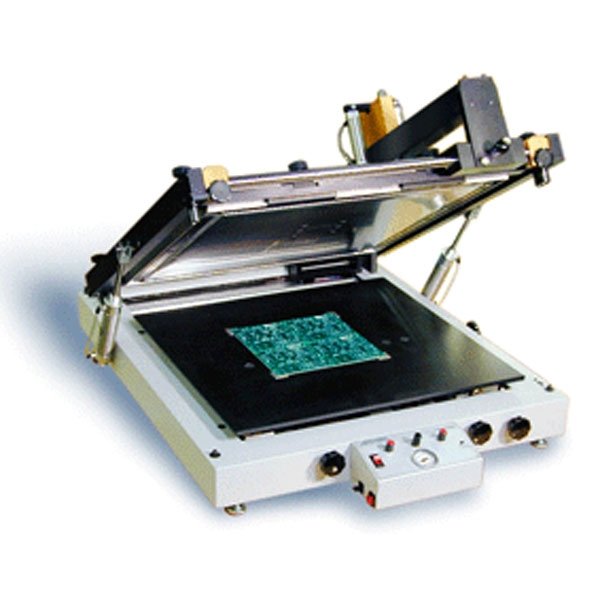

DDM Novastar SPR-45 Stencil Printer
The DDM Novastar SPR-45 is an automated stencil printer for medium volume surface mount assembly.
Discover the DDM Novastar SPR-45 Stencil Printer at Mektronics Australia – your trusted source for quality tools and equipment!
- Power sweep squeegee makes solder paste deposition accurate and repeatable
- Precision controls make operation simple and easy
- Adjustable speed squeegee for single or dual passes
- Fine X, Y, Z and Ø adjustments for exact stencil-to-board alignment
- Single knob Z axis self leveling adjustment
- Automatic linear squeegee guide
- Dual squeegee
- Pneumatic adjustable dual squeegee pressure/speed
- Automatic power frame lift
- X & Y adjustment: +0.500" (12.7mm)
- Z axis adjustment: 0 to 5/8" (16mm) single knob, self leveling
- Theta adjustment: Counter rotating dual knobs, +5° range
- Accepts stencil frames up to 23 x 23"
- Clear Lexan® fixture for initial registration: yes (for X, Y and Ø)
- Maximum print area: 16 x 18" (406 x 457mm)
- Outside frame dimensions: 23 x 23" (584 x 584mm)
- Approximate weight: 160 lbs (93.1 kg)
- Overall dimensions: 30"W x 35"L x 16"H (762 x 900 x 406mm)
Specification Name | Value |
Maximum Print Area | 16" x 18" (406mm x 457mm) |
Dual Squeegee | Yes |
Linear Squeegee Guide | Automatic |
Automatic Power Frame Lift | Automatic |
Vacuum Hold-Down Option | Yes |
Optional Stand | Yes |
Accessory Type | N/A |
Other Information | Value |
Estimated Weight(lbs) | 180 |
Standard Carton Qty | 1 |
GSA/NSN Number | N/A |
Country of Origin | UNITED STATES |
