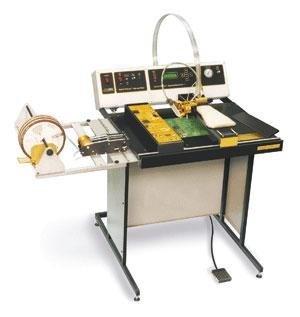

Image for Illustrative Purposes Only
DDM Novastar MPP-21 Pick and Place System
SKU: DDMMPP21
MMP-21
DESCRIPTION
Features
Specifications
Shipping & Delivery
DDM Novastar MPP-21 Pick and Place System
These systems have precise X, Y, Z and theta axis controls allowing accurate, consistent manual pick up and placement of surface mount components. This durable and easy-to-use system greatly increases efficiencies during hand assembly operations.
Discover the DDM Novastar MPP-21 Pick and Place System at Mektronics Australia – your trusted source for quality tools and equipment!
- Ergonomically designed arm rest and assembly provides for further accuracy and ease of component placement
- Theta adjustment movement in pick & place tool to enhance ease of alignment
- System comes equipped with 40 movable ESD safe component bins
- (32 - 1" x 1" and 8 - 2" x 2" bins)
- Innovative, movable padded hand and elbow rest designed to alleviate operator fatigue and discomfort
- Left/Right handed pick & place head
- Inline design with track hook-up provides progressive production (Push-Line) capabilities
| Max board size | 16" x 24" (406mm x 610mm) |
| Smallest component capability | 0402 component |
| Largest component size | 1.378" (35mm) square body |
| Max placement rate | 400 components per hour |
| Overall dimensions | 25" x 28.5" x 7" (635mm x 724mm x 178mm) Height w/stand = 35" (889mm) |
| Dispenser Option | 4-Mode programmable dispenser |
| Annual Duty Cycle | TBD |
