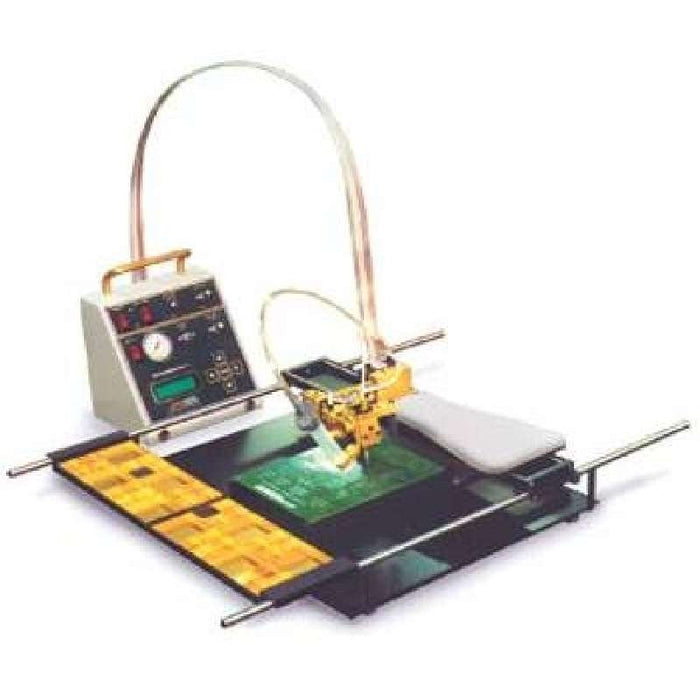

DDM Novastar MPP-11 Pick and Place System


Call for Pricing
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

Shipping & Delivery

DDM Novastar MPP-11 Pick and Place System

Component placement is accomplished by the operator manually moving the pick & place head over the component, picking up the component with vacuum pick up tool, moving to the component placement position, aligning the component and placing the component on the board.

Discover the DDM Novastar MPP-11 Pick and Place System at Mektronics Australia – your trusted source for quality tools and equipment!

  • Includes both the pick & place and 4 mode dispenser functions
  • Equipped with 40 movable ESD safe component bins (32 - 1" x 1" and 8 - 2" x 2", reconfigurable) which slide in close to placement area
  • Movable padded hand rest
  • A left/right handed pick & place head
  • Tape feeders can be optionally added
  • Economical manual benchtop pick & place system

Max board size 14" x 14" (356mm x 356mm)
Smallest component capability     0402 component
Largest component size 1.378" (35mm) square body
Max placement rate 400 components per hour
Overall dimensions 27.5" x 30" x 9" (700mm x 762mm x 230mm)
Dispenser Option 4-Mode programmable dispenser
Annual Duty Cycle TBD
