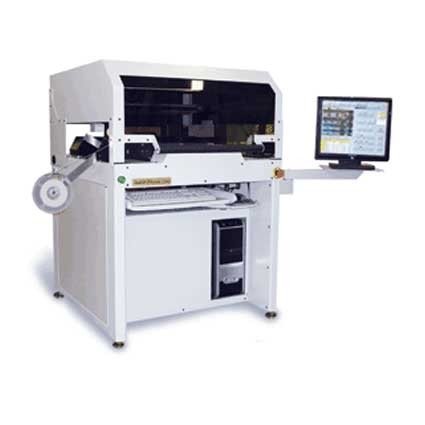

DDM Novastar LS-40V Pick and Place Machine with Vision
SKU: DDMLS40V
LS-40V
DESCRIPTION
Features
Specifications
Shipping & Delivery
DDM Novastar LS-40V Pick and Place Machine with Vision
The LS40V is our most popular model with Vision. The LS40V offers technologically advanced features with a 13" x 22" (330mm x 559mm) work area, 96 feeder positions where quick setup, ease of operation and high reliablity are paramount.
Discover the DDM Novastar LS-40V Pick and Place Machine with Vision at Mektronics Australia – your trusted source for quality tools and equipment!
- The highest quality with the most advanced equipment at a cost-effective solution
- Accuracy ± .001” (0.025mm)
- Placement rates up to 4800 cph
- The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
- Accurately place, manager, and track components withSMTrue™ Smart Feeders
- Up to 56 tape feeders, 84 - 8mm tape feeders with bank feeders
- Accurately places a wide range of components including 0201s, LED’s, BGAs,15mil pitch QFPs,SMT Connectors and many others
- Servo driven, position feedback from a 2 micron linear scales coupled with a precision placement head
- Integrated on-the-fly component centering using Vision (Cognex®), Laser Technology (Cyberoptics®) or Mechanical fingers
- Cut tape, loose, tube, or tray feeders
| Max board size | 13.5" x 22" (343mm x 560mm) |
| Smallest component capability | 0201 components |
| Largest component size | 2.00 |
| Placement accuracy | ± 0.001" (0.025mm) |
| Max placement rate | 4800 cph |
| Typical verifiable placement rate | 2500-3600 cph |
| Fine pitch capability | To 15 mil pitch (0.381mm) |
| Max travel area | 22" (X axis) x 22" (Y axis) (560mm x 560mm) |
| Overall dimensions | 40" x 42" x 53"h (1016mm x 1067mm x 1336.2mm) |
| Max no. of feeders (8mm tape) | 56 |
| Max no. of feeders with L-GB-12 bank feeders | 84 |
| Tape feeders | 8, 12, 16, 24, 32, 44 mm (Electrical) |
| Vibratory Feeders | Loose, tube, stick (frequency & amplitude control) |
| Matrix Tray Feeders | With Board/Matrix tray holders |
| Laser Centering | Touchless Cyberoptics® laser |
| Vision system | Cognex® Vision |
| Dispenser Option | Up to 10,000 dots/hour |
