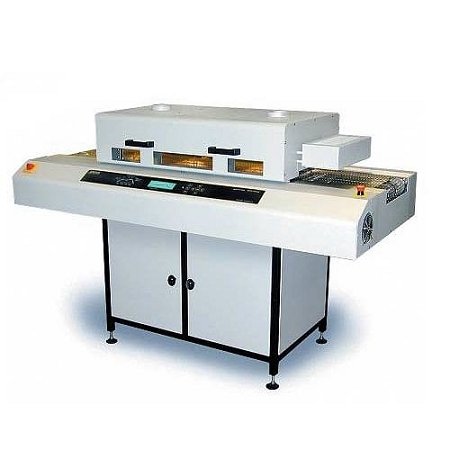

DDM Novastar GF-120HT Reflow Oven
SKU: DDMGF120HT
GF-120HT
DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery
DDM Novastar GF-120HT Reflow Oven
Three (3) zone PCB reflow oven for low-volume or batch production runs utilizing our patented Horizontal ConvectionTM Heating technology for extremely uniform temperature profiling across the entire printed circuit board face up to 12" wide for enhanced process control. The GF-120HT is lead-free compatible for RoHS compliant soldering or can heat up to 400°C for lead-free reflow.
NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES
Discover the DDM Novastar GF-120HT Reflow Oven at Mektronics Australia – your trusted source for quality tools and equipment!
-
100 menu profile storage
-
Lead-free solder reflow capable
-
Real time graphic temperature profiler to assist in profiling of board
-
PC interface software optionally available
-
Nitrogen gas inerting option available
-
Compatible with Lead and Lead-free reflow applications
| Max board width | 12" (305mm) |
| Max board height | 1.375" (35mm) |
| Heating zones | 3 top, 3 bottom |
| Max temperature | 400°C (752°F) |
| Heat tunnel length | 41" (1042mm) |
| CyclonicsTM (forced air) | Six (6) |
| Conveyor extensions | Option |
| Cooling station(s) | One (1) |
| Venting | Two 4" (102mm) flanges, 100 CFM each max. |
| Cooling Zone Venting | N/A |
| Nitrogen option | Yes |
| PC Interface | Option |
| Overall dimensions (L x W x H) | 73" x 34" x 19" (1854mm x 864mm x 483mm) |
Click to view further information - Conveyor and Batch Reflow Ovens
