CircuitMedic Professional Circuit Board Repair Kit
SKU: CIR2012102
201-2102
DESCRIPTION
Inclusions
Shipping & Delivery

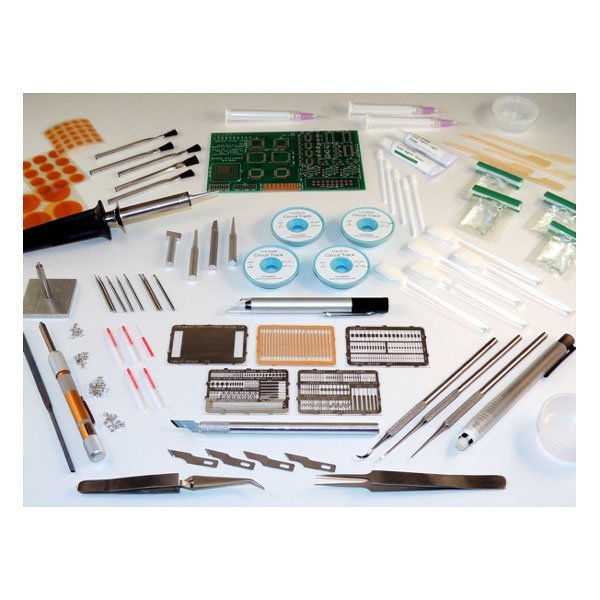

CircuitMedic Professional Circuit Board Repair Kit
The Professional Repair Kit is the most complete and most versatile circuit board repair kit you'll find anywhere. It's the total package.
Includes unique replacement circuits that do not use messy liquid adhesives for bonding.
Includes a Digital Temperature Controller, Bonding Iron and Bonding Tips to delivers the optimal heat required for curing the adhesive bonding film on the back side of the replacement edge contacts.
Includes eyelets and setting tools for plated through hole repair, Circuit Tracks to repair damaged circuit traces, adhesives and color agents for solder mask or base board repair all packed in a convenient ESD safe carrying case.
If you need to repair damaged circuit boards, the all-in-one Professional Kit is what you need.
* Model 201-2102 Professional Repair Kit, 230 VAC includes 115-3105 Bonding Station, 230 VAC
-
Adhesive-backed replacement lands and surface mount pads that do not use messy epoxies
-

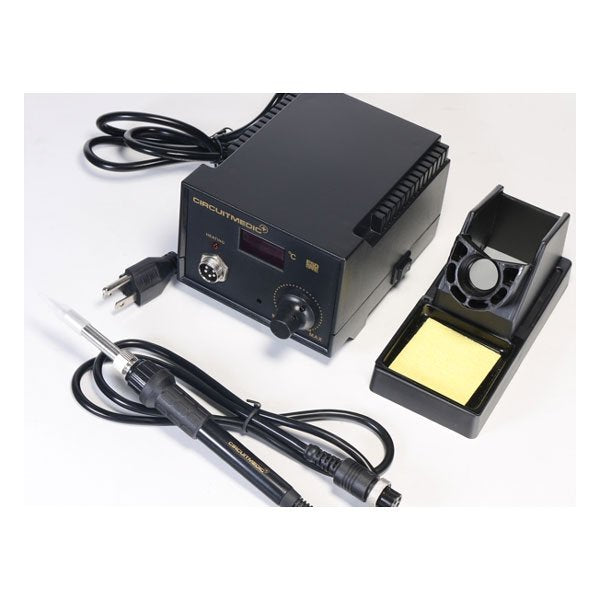

Digital Temperature Controller, Bonding Iron and Bonding Tips
-
Eyelets for plated through hole repair
-
Circuit Tracks to repair damaged circuits
-
Colour agents for cosmetic colour matching
-
Package in a conductive, ESD safe carrying case
-
Tools and materials confirm to IPC guidelines
Discover the CircuitMedic Professional Circuit Board Repair Kit at Mektronics Australia – your trusted source for quality tools and equipment!
1 x Abrader
Alcohol Swabs
1 x Ball Mill Pack (Sizes #1/2 - #7) - Pkg/8
1 x Bonding Film
1 x Bonding Station 230 VAC
1 x Bonding Tip, Tapered
1 x Bonding Tip, .080" (2.03mm) Diameter
1 x Bonding Tip, .120" (3.05mm) Diameter
1 x Bonding Tip, .080" x .120" (2.03mm x 3.05mm)
1 x Circuit Board

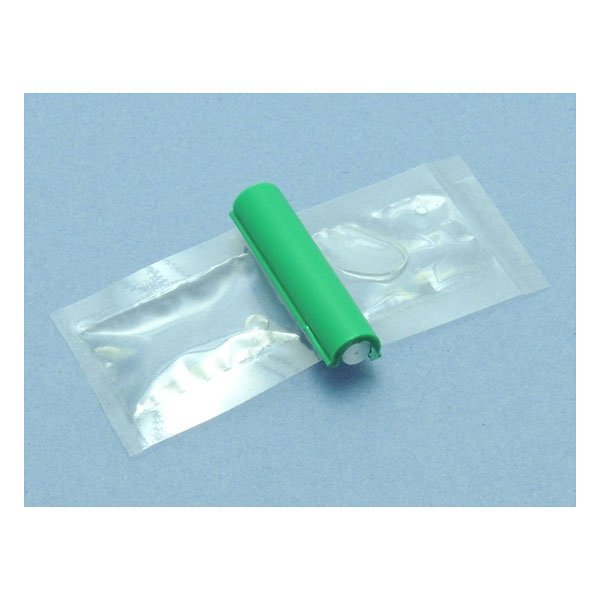

4 x Circuit Bond Packs

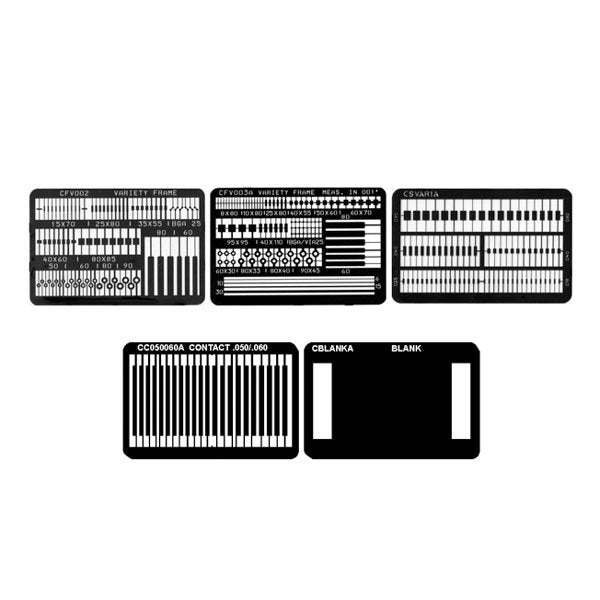

1 x Circuit Frame CP050060AS
1 x Circuit Frame CBLANKAS
1 x Circuit Frame CFV002AS
1 x Circuit Frame CFV003AS
1 x Circuit Frame CSVAR1AS

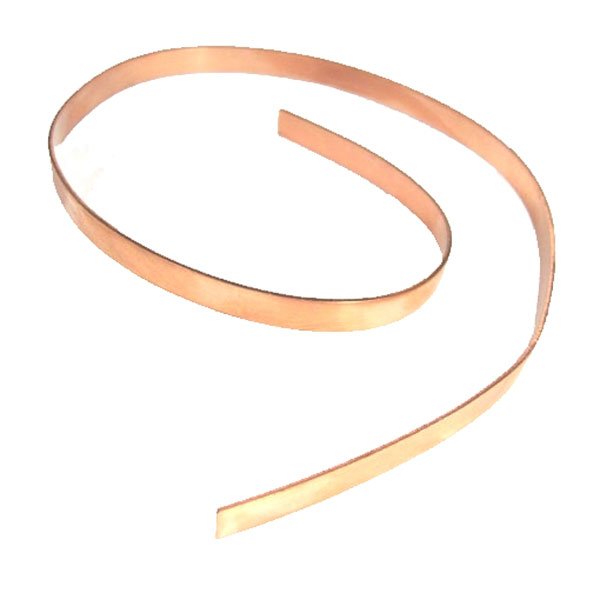

1 x Circuit Track .002" x .006"
1 x Circuit Track .002" x .010"
1 x Circuit Track .003" x .015"
1 x Circuit Track .005" x .030"
5 x Cleaning brushes

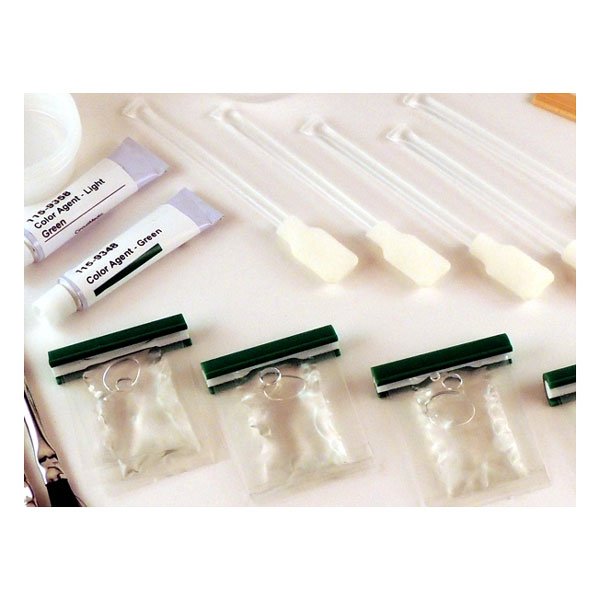

1 x Colour Agent, Green
1 x Colour Agent, Light Green
25 x Brass Eyelets, Flat Flange ID .030" OD .040" Length .093" Flange .060"
25 x Copper Eyelets, Flat Flange ID .036" OD .046" Length .093" Flange .076"
25 x Copper Eyelets, Flat Flange ID .045" OD .059" Length .090" Flange .090"
25 x Copper Eyelets, Flat Flange ID .057" OD .067" Length .095" Flange .111"
5 x Foam Swabs
126 x High Temp Tape Discs .25" Diameter
60 x High Temp Tape Discs .50" Diameter
1 x Knife with #16 blade
Measuring microscope pen, 25X
5 x Micro probes
5 x Mixing picks
5 x Plastic Cups
1 x Sharp dental style probe
1 x Scraper
2 x setting tools
3 x Syringes
1 x Tool base
1 x Tool grip
1 x Tweezer, Crossover
1 x Tweezer, Point Tip
1 x Wire guide
