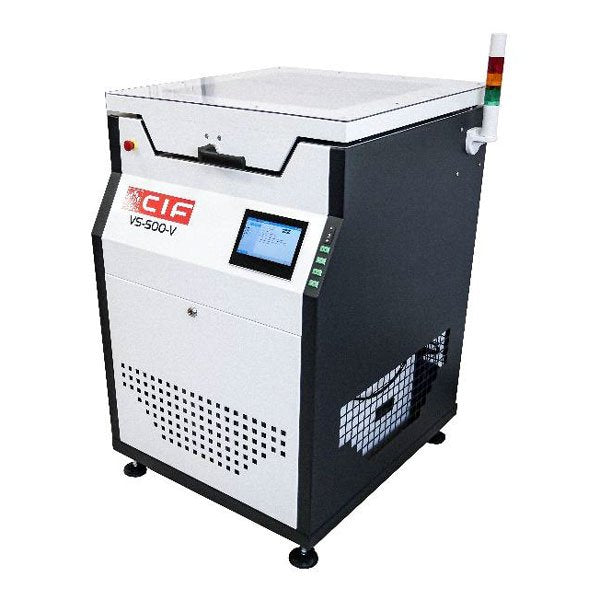

CIF VS-500-V Vapour Phase Reflow Soldering Machine
SKU: EXMVS-500
VS-500-V
DESCRIPTION
Specifications
Shipping & Delivery
CIF VS-500-V Vapour Phase Reflow Soldering Machine
The design of the machine allows to solder even the most complex cards with a format of max. 500 x 500 x 60 mm while ensuring optimal quality thanks to:
-
The inert atmosphere resulting from the fluid (medium) used
-
An incomparable temperature delta across the entire component
-
No possible handling error during the cycle
Note the upgrades since the VS-500-IV include:
-
A high efficiency chiller included
-
It can go up to 10 temperature levels
-
ESD paint
-
ESD top glass
-
Display of the real-time reflow profile integrated into the machine
-
Light signal column
-
Lead & lead-free soldering
-
Conductive adhesives
-
Repair
-
Reducing fluid consumption (medium) using a unique vapor recovery system; this greatly reduces production costs
-
Quick return on investment and high capacity for mixed productions
-
Optimum soldering quality in inert atmosphere and vacuum (without void)
-
Compensation for pressure fluctuations in the tank
-
Minimum temperature delta throughout the working area - not achievable with other technologies
-
Reduced energy consumption
-
Sub-assembly repair: desoldering and resoldering
-
High reliability for all types of soldering
-
Precision and repeatability
-
Possibility of soldering large format 500 x 500 x 60 mm cards in a small footprint
-
Massive reduction in medium consumption
-
Big fume reduction
-
Reduced medium smell
-
Reduced cycle time
-
Reduced downtime
Discover the CIF VS-500-V Vapour Phase Reflow Soldering Machine at Mektronics Australia – your trusted source for quality tools and equipment!
-
Model: VS-500-V
-
Max PCB Dimensions: 500 x 500 x 60mm
-
Max. Load Capacity: 2kg
-
Medium Capacity: 5kg
-
Dimensions (L x W x H): 830 x 775 x 1140mm
-
Installed Power: 7,5 KW/H
-
Power Supply: 3 x 400 V + N / 50 Hz
