Brady PermaSleeve Heat Shrink Wire and Cable Labels -44.45mm (W) x 21.62mm (H) for M6 & M7 Printers
SKU: BRA174491
174491 115020
DESCRIPTION
Features
Specifications
Shipping & Delivery
Brady PermaSleeve Heat Shrink Wire and Cable Labels -44.45mm (W) x 21.62mm (H) for M6 & M7 Printers
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Part No: 174491
Colour: Yellow
Printer Compatibility: M611, M610, BMP61, M710, BMP71
Printer Material: Heat-shrink Polyolefin
Product Number: BM-500-175-342-YL
Printer Compatibility: M611, M610, BMP61, M710, BMP71
Printer Material: Heat-shrink Polyolefin
Product Number: BM-500-175-342-YL
Discover the Brady PermaSleeve Heat Shrink Wire and Cable Labels -44.45mm (W) x 21.62mm (H) for M6 & M7 Printers at Mektronics Australia – your trusted source for quality tools and equipment!
-
3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
-
Fade-resistant and smudge-proof for superior aesthetic appearance
-
Cold resistant and flame-retardant with an operating temperature of -55°C to 135°C
-
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant; and UL Recognized
-
Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
| Colour | Yellow |
|---|---|
| Brand Name | Brady® |
| Quantity or Roll Length | 1000 |
| Sold | Roll of 1000 Each |
| Industry | Electrical, Aerospace |
| Finish | Matte |
| Barcode | 88843460342 |
| Trade Name | PermaSleeve® |
| Material | Heat-shrink Polyolefin |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Label Properties | Heat Shrink |
| Maximum Service Temperature (°C) | 135 °C |
| Minimum Service Temperature (°C) | 135 °C |
| Print Technology | Thermal Transfer |
| Resistance Properties | UV-Resistant, Weather-Resistant, Humidity-Resistant, Chemical-Resistant, Corrosion-Resistant, Smear-Resistant |
| Max. Lines of Text | 41 |
| Maximum Characters per Line | 41 |
| Maximum Wire Gauge | 1 AWG |
| Wire Gauge (mm) | 8 AWG - 1 AWG |
| Application | Electrical labelling, Wire and cable labelling |
| Printer and Label Applications | Wire & Cable |
| Height (mm) | 21.62 |
| Width (mm) | 44.45 |

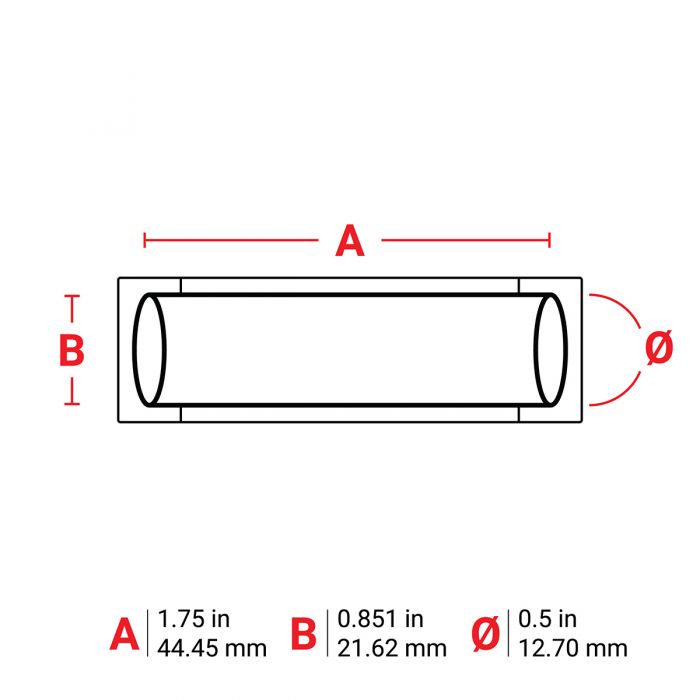

| Overall Dimension | 44.45mm (W) x 21.62mm (H) |
| Recovered Wall Thickness (mm) | 0.64 |
| Roll Width (mm) | 44.45 |
| Secondary Label Diameter (mm) | 44.45 |
| Sleeve Dimension (metric) | 12.7mm (Dia) x 44.45mm (W) |
| Sleeve Width (mm) | 44.45 |
| Diameter as Supplied (mm) | 12.70 mm |
| Quantity per Roll | 1000 |
| Quantity per Row | 1 |
| Web Width (mm) | 57.15 |
| Vertical Repeat (mm) | 31.75 |
| Package Weight (kg) | 1.20 kg |
| Recommended Ribbon Series | R6600, R4300, R6700, R4502S, R5000 |
| Recommended Ribbon | M61-R6610, M7-R6600 |
| Printer Compatibility | M611, M610, BMP61, M710, BMP71 |
| Continuous or Die-cut | Die-cut |
