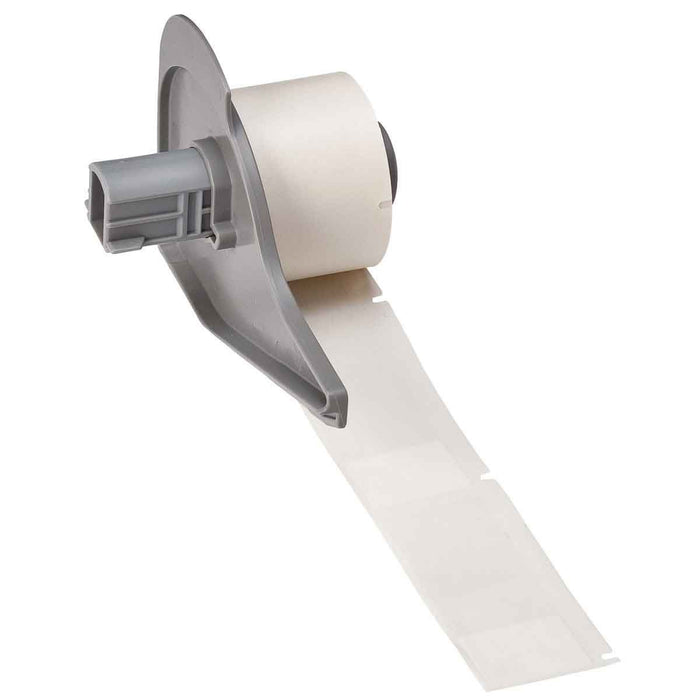

Brady Self-Laminating Vinyl Wrap Around Wire & Cable Labels for M7 Printers - 63.5mm (H) x 25.4mm (W), 100 Roll
SKU: BRA173378
173378 115101
DESCRIPTION
Specifications
Shipping & Delivery
Brady Self-Laminating Vinyl Wrap Around Wire & Cable Labels for M7 Printers - 63.5mm (H) x 25.4mm (W), 100 Roll
Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.
-
Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
-
Durable, permanent acrylic adhesive has outstanding water and oil resistance
-
UL approved
-
Service temperature of -40°C to 70°C
-
Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
Discover the Brady Self-Laminating Vinyl Wrap Around Wire & Cable Labels for M7 Printers - 63.5mm (H) x 25.4mm (W), 100 Roll at Mektronics Australia – your trusted source for quality tools and equipment!
| Colour | Clear, White |
|---|---|
| Brand Name | Brady® |
| Primary Noun, Basic Function | Label |
| Quantity or Roll Length | 100 |
| Sold | Roll of 100 Labels |
| Industry | Aerospace, Automotive, Biotechnology, Defense, Electrical, Electronics, ICT, Laboratory, Manufacturing, Mass transit, Pharmaceutical, Voice & data communication |
| Finish | Matte |
| Barcode | 88843459006 |
| Brady Printer Material Number | B-427 |
| Trade Name | M710 |
| Printer Material | Self-laminating Vinyl |
| Material Type | Vinyl |
| Material Properties | Flame-retardant, Self-laminating |
| Surface | For smooth & textured/rough surfaces |
| Label Properties | Self Laminating & Wrap Around |
| Maximum Service Temperature (°C) | 70 °C |
| Minimum Service Temperature (°C) | 70 °C |
| Adhesive Type | Permanent Acrylic |
| Print Technology | Thermal Transfer |
| Resistance Properties | Chemical-Resistant, Humidity-Resistant, Oil-Resistant, Water-Resistant, Weather-Resistant |
| Max. Lines of Text | 24 |
| Maximum Characters per Line | 24 |
| Corner Type | Rounded Corners |
| Printer supply or Pre-printed | Printer supply |
| Wire Diameter (mm) | 6.70mm - 14.20mm |
| Maximum Wire Gauge | 000 AWG |
| Wire Gauge (mm) | 6 AWG - 000 AWG |
| Application | Data and telecommunications Labelling, Electrical Labelling, Wire and cable Labelling |
| Lab Application | Straws, Rods |
| Printer and Label Applications | Laboratory, Wire & Cable |
| Indoor or Outdoor Use | Outdoor Use |
| Smart Cell | Yes |
| Shape | Rectangle |
| Height (mm) | 63.5 |
| Width (mm) | 25.40 |

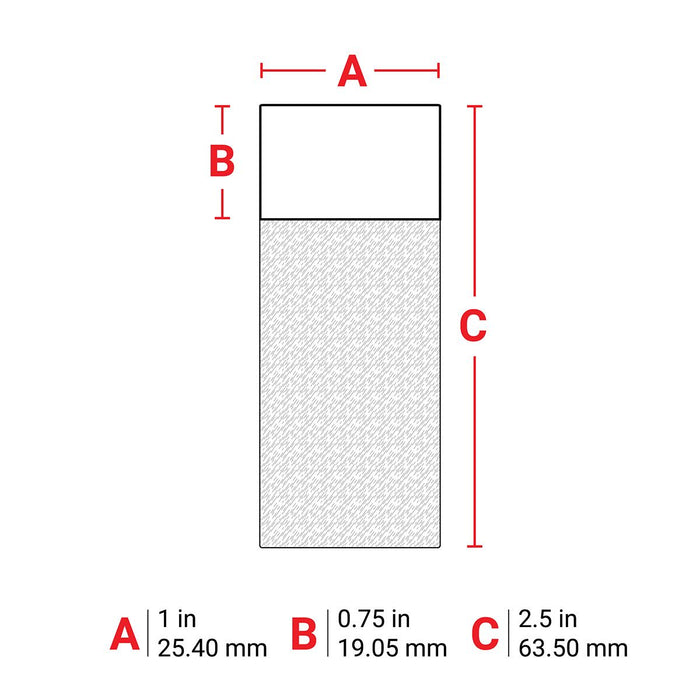

| Overall Dimension | 25.40mm (W) x 63.50mm (H) |
| Thickness (mm) | 0.102 |
| Label/Tape Dimension | 50.80 mm (H) x 25.40 mm (W) |
| Printable Area dimensions (mm) | 25.40 mm (W) x 19.05 mm (H) |
| Printable Area Height (mm) | 19.05 |
| Printable Area Width (mm) | 19.05 |
| Recovered Diameter (mm) | 19.05 |
| Quantity per Roll | 100 |
| Quantity per Row | 1 |
| Web Width (mm) | 33.32 |
| Vertical Repeat (mm) | 66.68 |
| Package Weight (kg) | 0.10 kg |
| Package Depth (mm) | 131 mm |
| Package Height (mm) | 90 mm |
| Package Width (mm) | 79 mm |
| Lab Environment | Freezer, Liquid Nitrogen |
| Recommended Ribbon Series | R4300 |
| Recommended Ribbon | M7-R4300 |
| Printer Compatibility | M710, BMP71 |
| Continuous or Die-cut | Die-cut |
| Compatible Surface Types | General |
| Enables Industry Compliance (North America) | No |
