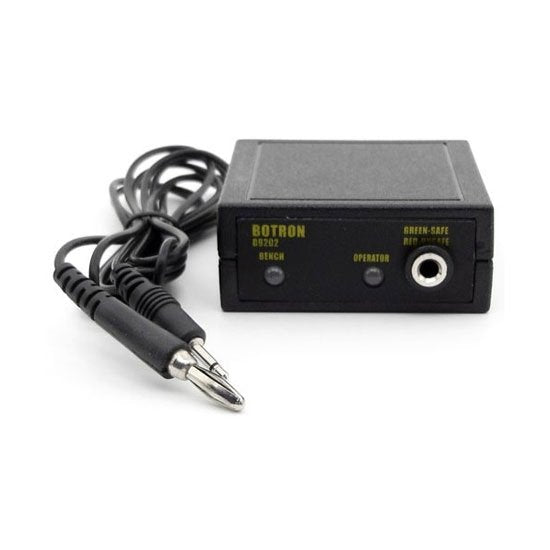

Image for Illustrative Purposes Only
Botron Continuous Monitor
SKU: BOT9202
B9202
DESCRIPTION
Features
Applications
Specifications
Resources
Shipping & Delivery
Botron Continuous Monitor
The Botron B9202 is designed to monitor resistance of both the work surface and the operator’. It comes with a built in audible alarm and LED, triggering either when either the operator or work surface falls out of spec, becomes disconnected, or ground is lost. It is a fixed resistor system and is go no go, there is no calibration needed. A full time monitoring system is necessary to reduce latency on the assembly line.
Discover the Botron Continuous Monitor at Mektronics Australia – your trusted source for quality tools and equipment!
- Pass/Fail LED Alarm
- Banana Jack Input
- Ground Wire
To be used in work environments in accordance with S20.20 standard for monitoring resistance from worker to ground. It is recommended to use constant monitoring in work environments handling components that are more susceptible to ESD damage.
|
|
|
| Operating Parameters | |
| Mat | Pass = >0 to < 6.75M Fail = >6.75M +/- 10% |
| Operator | Pass <8Meg Fail High >8.5Meg +/- 10% |
| Size | 0.88" x 1.75" x 1.25" |
| Mounting | Screws on |
| Safe Condition | 1 Meg Ohm |
| Fault Condition | 6.5 Meg Ohm |
| Power | 230V |
| Visual Alarm | Power pack green (safe), red (fault) |
| Operation | Active when plugged in |
