Image for Illustrative Purposes Only
Bordo UNC Intermediate Chrome Taps
SKU: BOR4232-3/8I
DESCRIPTION
Specifications
Shipping & Delivery

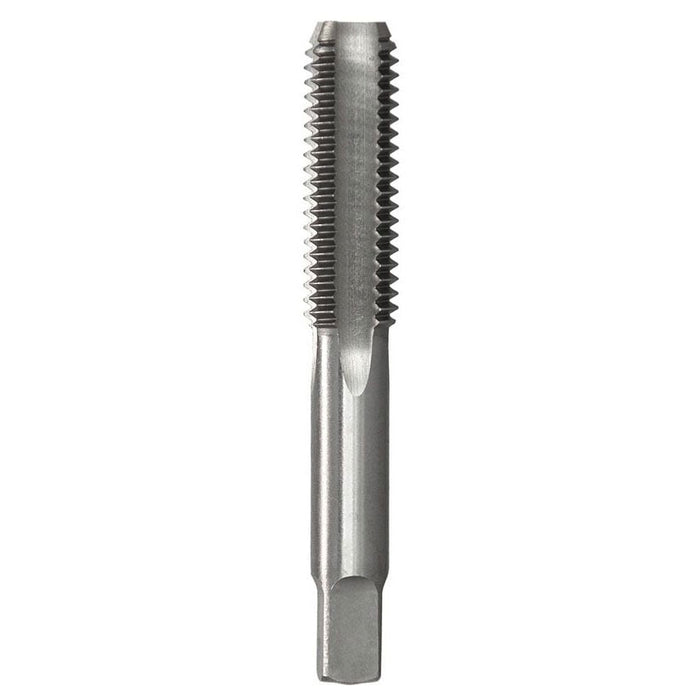

Bordo UNC Intermediate Chrome Taps
UNC - Unified National Coarse
This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Intermediate taps
Have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Discover the Bordo UNC Intermediate Chrome Taps at Mektronics Australia – your trusted source for quality tools and equipment!
BOR4232-1/4I
-
Diameter (inch): 1/4
-
Pitch (tpi): 20
-
Overall Length (mm): 66
-
Tapping Drill (mm): 5.1
BOR4232-3/8I
-
Diameter (inch): 3/8
-
Pitch (tpi): 16
-
Overall Length (mm): 80
- Tapping Drill (mm): 8
BOR4232-5/16I
-
Diameter (inch): 5/16
-
Pitch (tpi): 18
-
Overall Length (mm): 72
- Tapping Drill (mm): 6.6
BOR4232-1/2I
-
Diameter (inch): 1/2
-
Pitch (tpi): 13
-
Overall Length (mm): 89
- Tapping Drill (mm): 10.8
