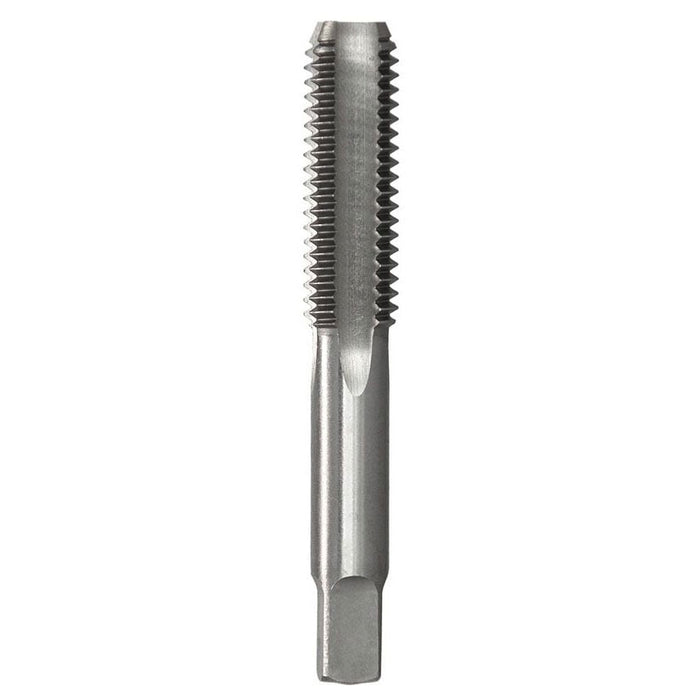

Bordo UNC Bottoming Chrome Taps
Bordo UNC Bottoming Chrome Taps
Image for Illustrative Purposes Only
Bordo Industrial Tools Logo

Bordo UNC Bottoming Chrome Taps

SKU: BOR4232-3/8B

$10.48

EX. GST
$11.53
INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

Bordo UNC Bottoming Chrome Taps

UNC - Unified National Coarse

This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.

The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.

The thread is described by its major diameter and the number of threads per inch of length (TPI).

This thread series is commonly used in the mass production of bolts, screws and nuts.

It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.

It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.

Bottoming Taps

Have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.

Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.

Discover the Bordo UNC Bottoming Chrome Taps at Mektronics Australia – your trusted source for quality tools and equipment!

BOR4232-1/4B

  • Diameter (inch): 1/4

  • Pitch (tpi): 20

  • Overall Length (mm): 66

  • Tapping Drill (mm): 5.1

BOR4232-3/8B

  • Diameter (inch): 3/8

  • Pitch (tpi): 16

  • Overall Length (mm): 80

  • Tapping Drill (mm): 8

BOR4232-5/16B

  • Diameter (inch): 5/16

  • Pitch (tpi): 18

  • Overall Length (mm): 72

  • Tapping Drill (mm): 6.6

BOR4232-1/2B

  • Diameter (inch): 1/2

  • Pitch (tpi): 13

  • Overall Length (mm): 89

  • Tapping Drill (mm): 10.8
