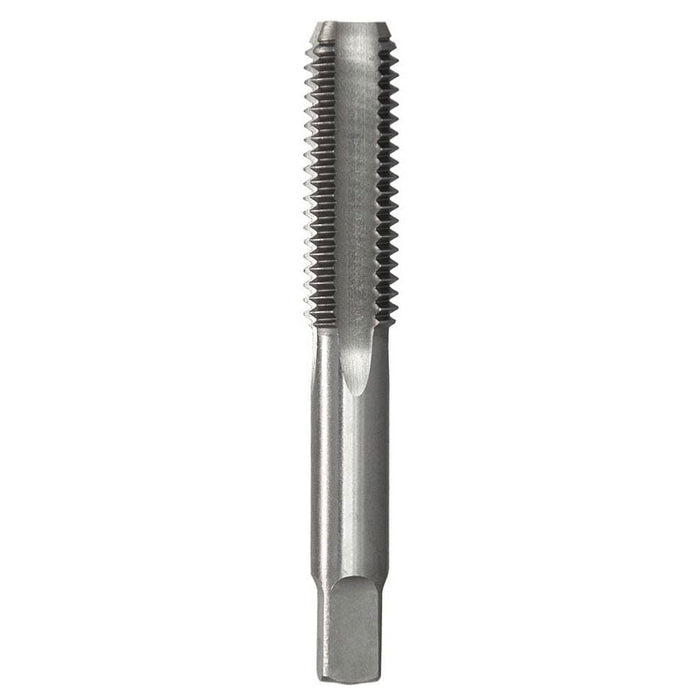

Bordo MC Taper Chrome Taps
SKU: BOR4220-4.00T
DESCRIPTION
Specifications
Shipping & Delivery
Bordo MC Taper Chrome Taps
Metric Coarse & Fine
Angle of thread is 60°.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Discover the Bordo MC Taper Chrome Taps at Mektronics Australia – your trusted source for quality tools and equipment!
4220-4.00T
-
Diameter: 4mm
-
Pitch: 0.7mm
-
Overall Length: 54mm
-
Tapping Drill: 3.4mm
4220-5.00T
-
Diameter: 5mm
-
Pitch: 0.8mm
-
Overall Length: 60mm
-
Tapping Drill: 4.3mm
4220-6.00T
-
Diameter: 6mm
-
Pitch: 1mm
-
Overall Length: 64mm
-
Tapping Drill: 5.1mm
4220-8.00T
-
Diameter: 8mm
-
Pitch: 1.25mm
-
Overall Length: 70mm
-
Tapping Drill: 6.9mm
4220-10.00T
-
Diameter: 10mm
-
Pitch: 1.5mm
-
Overall Length: 75mm
-
Tapping Drill: 8.5mm
4220-12.00T
-
Diameter: 12mm
-
Pitch: 1.75mm
-
Overall Length: 86mm
-
Tapping Drill: 10.2mm
