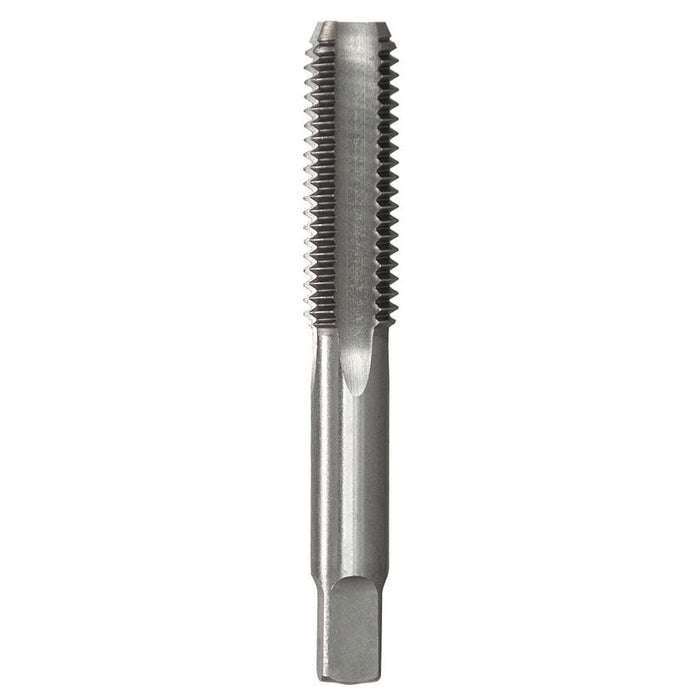

Bordo BSPT Chrome Alloy Taps - Bottoming

SKU: BOR4248-1/8B

$33.08

EX. GST
$36.39
INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

Bordo BSPT Chrome Alloy Taps - Bottoming

BRITISH STANDARD PIPE TAPER (RC SERIES PIPE TAPER)

This is based on the Whitworth thread form - a symmetrical V-thread with an angle of 55°.

BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread.

The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other.

The taper is "1 to 16", meaning that for each 16 mm increase in the distance from the end, the diameter increases by 1 mm.

BOTTOMING TAPS have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.

Discover the Bordo BSPT Chrome Alloy Taps - Bottoming at Mektronics Australia – your trusted source for quality tools and equipment!

Part no. Diameter (mm) Pitch (mm) Lead Overall Length (mm) Tapping Drill (mm)
4220-4.00B 4 0.7 Bottoming 54 3.4
4220-5.00B 5 0.8 Bottoming 60 4.3
4220-6.00B 6 1 Bottoming 64 5.1
4220-8.00B 8 1.25 Bottoming 70 6.9
4220-10.00B 10 1.5 Bottoming 75 8.5
4220-12.00B 12 1.75 Bottoming 86 10.2
