Image for Illustrative Purposes Only
BOFA V350E Dual Arm Fume Extraction System (Without Arms) Powder Coated
SKU: BOFE1042A0000
E1042A0000V350E
DESCRIPTION
Features
Specifications
Shipping & Delivery

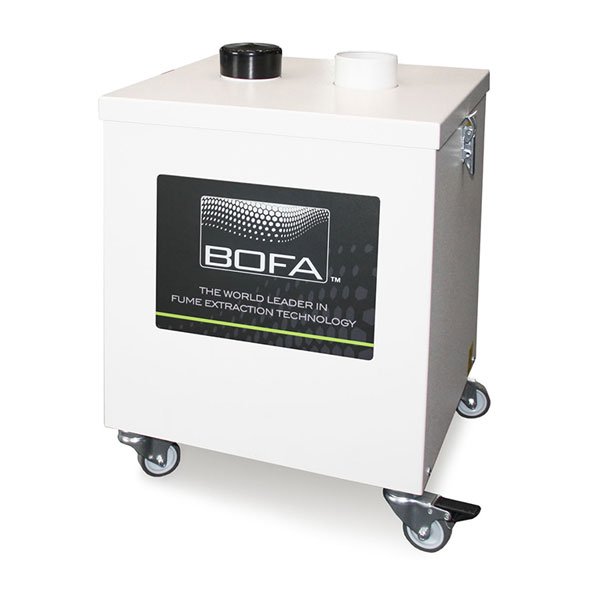

BOFA V350E Dual Arm Fume Extraction System (Without Arms) Powder Coated
Entry level dual arm fume extraction system for electronics hand soldering processes.
The V 350E extraction unit is a compact, low cost system which is capable of generating high air flow rates from a range of bench top attachments.
The extraction unit can be positioned comfortably under a bench with a simple installation kit to connect to the most suitable extraction accessory.
Note: Arms not included
Discover the BOFA V350E Dual Arm Fume Extraction System (Without Arms) Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
Simple installation
-
High air flow rates
-
Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
-
Dimensions (HxWxD): 517x370x370mm
-
Cabinet Construction: Powder coated mild steel
-
Airflow / Pressure: 540m³/hr / 4mbar
-
Electrical data: 230v 50/60Hz; full load current: 1.1amps / 0.25kw
-
Noise Level: <60dBa (at typical operating speed)
-
Weight: 18kg
-
Duct Size: 2 x 75mm
-
Max duct run: 6mtrs
-
Gas Filter: Carbon sponge pad
- Pre filter efficiency: M6
Suitable Applications
-
Arm
-
Lead free soldering
-
Arm extraction
-
Local ventilation / fume extraction and filteration systems
-
Hand soldering
-
Volume
-
Lead-free
Replacement Filter Part Numbers
Filter Set: A1030110
