BOFA TVT2 Portable Fume Extraction System Powder Coated
SKU: BOFE0242A0000
E0242A0000TVT2
DESCRIPTION
Features
Specifications
Shipping & Delivery

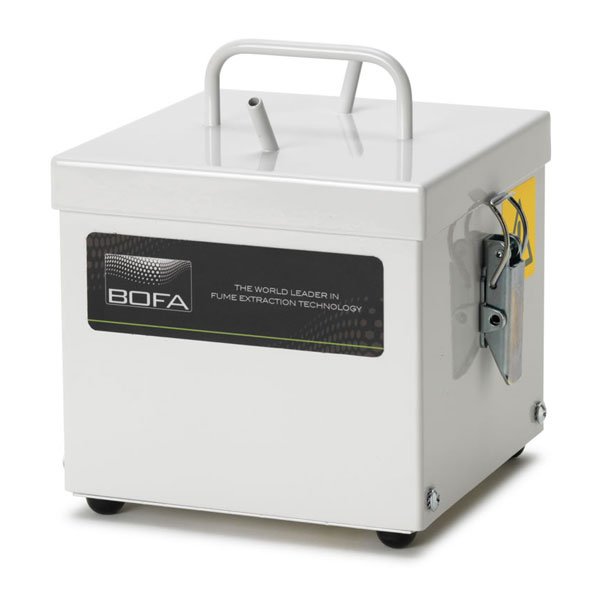

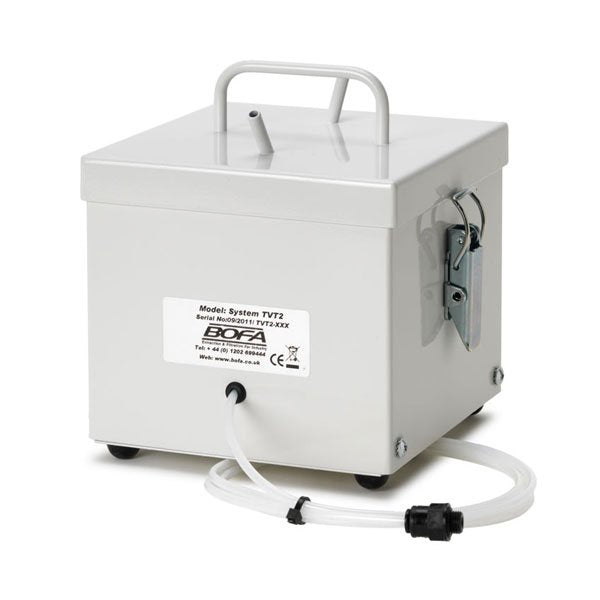

BOFA TVT2 Portable Fume Extraction System Powder Coated
A light weight and portable fume extraction system, which runs from compressed air rather than an electric supply, making it extremely quiet in operation.
The TVT 2 high vacuum unit is designed to extract and filter fumes and debris through small bore hoses and attachments. Ideally suited for soldering iron tip extraction, vac pens and any application requiring close proximity, micro extraction.
The light weight and portable TVT2 unit only requires 6 bar of compressed air to operate. This venturi system is capable of extracting fume from 2 operations.
-
HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are test and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse
-
Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
Discover the BOFA TVT2 Portable Fume Extraction System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
Compact design
-
High vacuum pumps
-
Low noise level
-

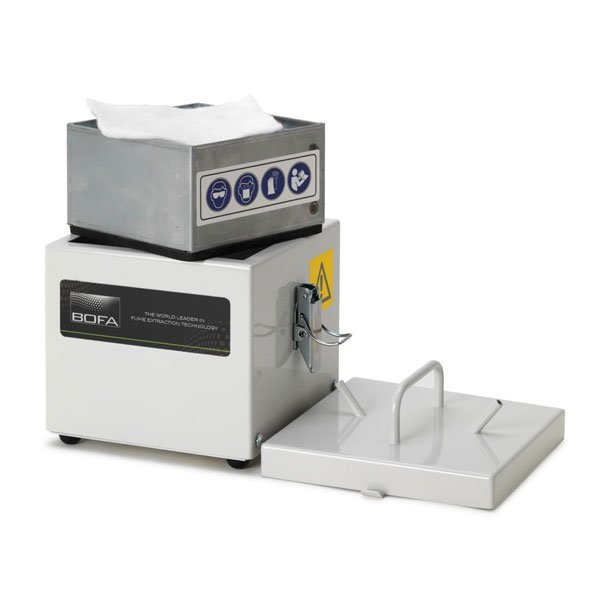

3 stage filtration
-
Dimensions (HxWxD): 170x170x150mm
-
Cabinet Construction: Powder coated mild steel
-
Recommended flow rate with filters fitted (per tip): 22L/M
- Compressed air data: Air ejector
- Noise level: <48dBa (at typical operating speed)
- Weight: 3kg
-
Pre filter efficiency: 85% @ 0.8 microns
-
HEPA filter efficiency: 99.997% @ 0.3 microns
-
Gas filter: Treated activated carbon
Replacement Filter Part Numbers
-
Pre Filter: A1030087
-
Combined Filter: A1030086
