BOFA PrintPRO Universal Fume Extraction System Powder Coated
SKU: BOFL2044A
L2044APrintPRO Universal
DESCRIPTION
Features
Specifications
Shipping & Delivery

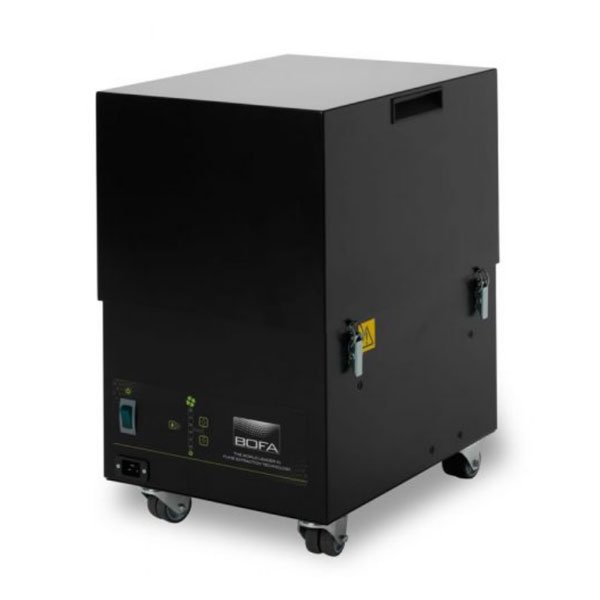

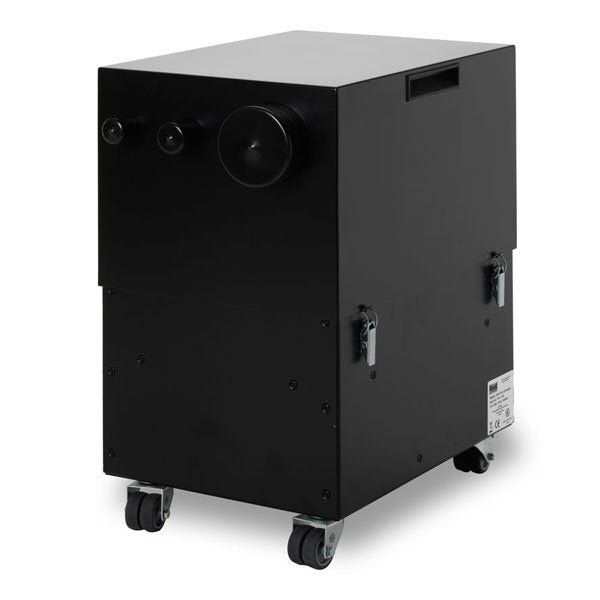

BOFA PrintPRO Universal Fume Extraction System Powder Coated
The PrintPRO Universal is a compact unit with a large gas filter.
It is designed exclusively for the print and print finishing industries with unique features to effectively capture and remove a wide range of solvents generated within these environments, including MEK, ketones and ozone from UV applications.
The unit is easily adapted to a huge range of environments, including wide format printers, inkjet coding printers (CIJ) (both solvent and UV) and numerous mailroom applications such as UV coating, hot melt glue binding and mailwrap polywrapping.
-
HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.
-
Multi voltage sensing (MVS) unit: Automatically senses the local voltage and adjusts accordingly, between 90-275V.
- Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
Discover the BOFA PrintPRO Universal Fume Extraction System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
VOC gas sensor (Volatile Organic Compound)
-
Auto sensing voltage (90-257v) for global use
-
Extended life carbon for low cost of ownership
-
Specially treated carbon for safe containment of print fumes
-
Low noise level
-
Small footprint
-
Compact size enables extraction unit to be positioned within the printer footprint
-
Castors for portability
-
Powder coated
-
Digital speed control
-
Filter change indicator
-
Dimensions (HxWxD): 625x385x525mm
-
Cabinet construction: Powder coated mild steel
-
Max airflow/pressure: 380³/hr / 96mbar
-
Electrical data: 90 - 257v 1ph 50/60Hz Full load current: 12.5 amps/ 1.1kw
-
Noise level: < 68dBA (at typical operating speed)
-
Weight: 51kgs

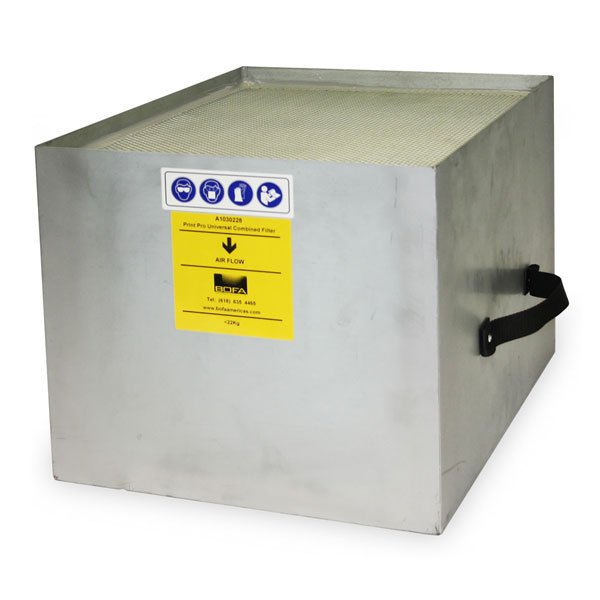

Combined HEPA/Gas Filter Specifications
-
HEPA Filter media: Glass fibre
- Filter housing: Zintec mild steel
-
Treated activated carbon: 20kgs (44 lbs)
-
Surface media area: 3.5m² approx (37.66 ft²)
Replacement Filters
-
Combined HEPA/Gas Filter: A1030157
