Image for Illustrative Purposes Only
BOFA DustPRO 400 Particulate & Dust Extraction System Powder Coated
SKU: BOFD0944A0000
D0944A0000
DESCRIPTION
Features
Specifications
Shipping & Delivery

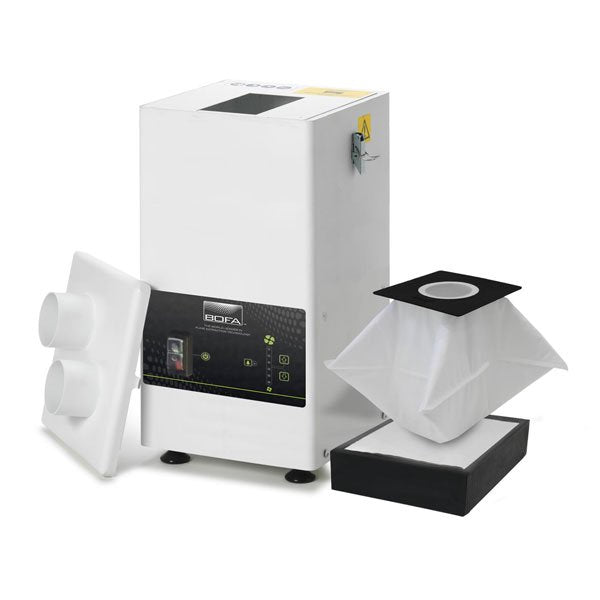

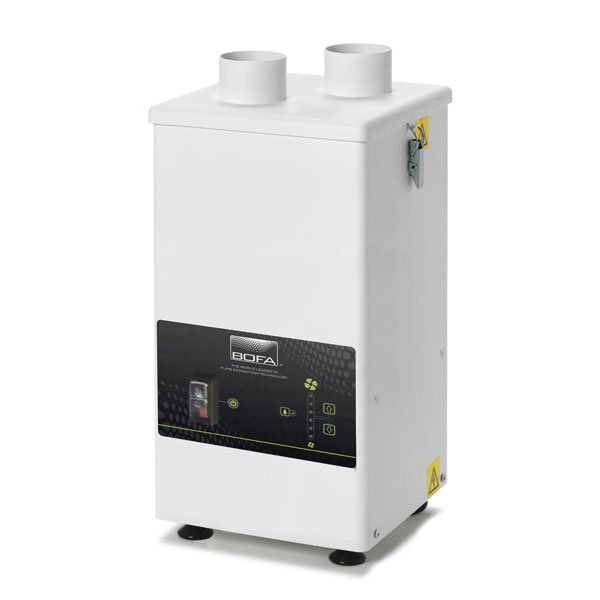

BOFA DustPRO 400 Particulate & Dust Extraction System Powder Coated
Particulate and dust extraction system for a variety of industrial applications.
BOFA’s DustPRO 400 extraction unit has been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and turning.
One of the main problems with other router extraction relates to the type of pump used. Most have brushed which are noisy in operation and frequently burn out.
It is brushless and designed for continuous running for longer periods of time before requiring servicing.
The bag filter has a large 6.4 litre capacity and the HEPA filter has very high efficiency.
-
HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.
- Multi Voltage Sensing Unit (MVS): Automatically senses the local voltage and adjusts accordingly, between 90-275V.
Discover the BOFA DustPRO 400 Particulate & Dust Extraction System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter full indicator
-
Digital speed control
-
High efficiency filters (99.997% @ 0.3 microns)
-
Large capacity filter bag
-
Simple operation
-
Low running costs
-
Small footprint
-
Dimensions (HxWxD): 600x290x270mm
-
Cabinet Construction: Powder coated mild steel
-
Airflow / Pressure: 380m³/hr / 96mbar
-
Electrical data: 90 - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw.
-
Noise level: <66dBa (at typical operating speed)
-
Weight: 143kg
Bag Filter Specifications
-
Filter holding capacity: 6.4 ltrs
-
Filter media: Polyester
-
Filter media construction: Bag filter
-
Filter efficiency: 95% @ 0.9 microns
HEPA Filter Specifications
-
HEPA Filter Media: Glass fibre
-
HEPA Media Construction: Maxi pleat construction with webbing spacers
-
Filter efficiency: 99.997% @ 0.3 microns
Replacement Filters
-
Bag Filter: A1030241
- HEPA Filter: A1030287
