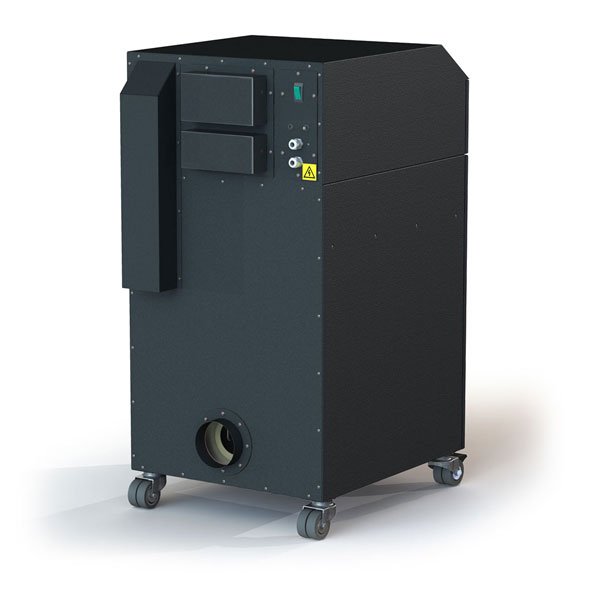

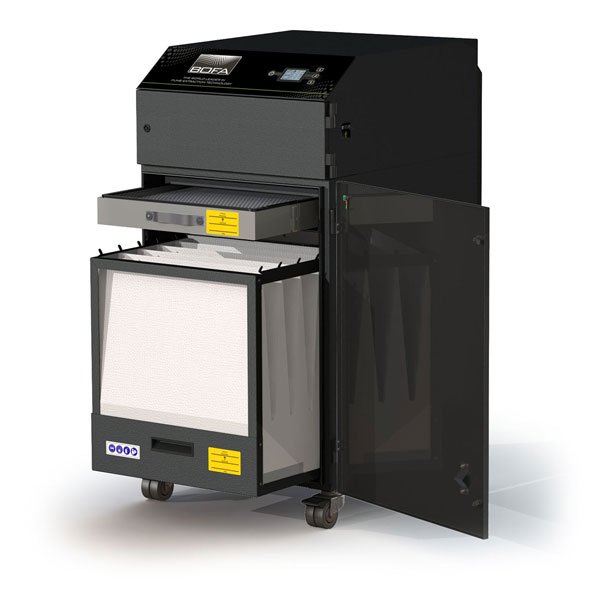

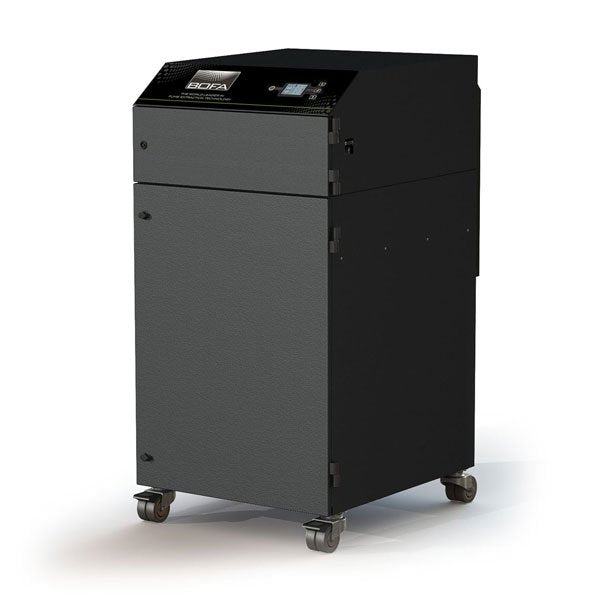

BOFA DustPRO 1500 iQ Fume Extraction System (Powder Coated)

• Intelligent (iQ) Operating System: Advanced extraction monitoring and control system bringing multiple performance enhancements for higher efficiency of extraction, independant filter status monitoring and integral design features that combine to deliver a low cost of ownership. It monitors the status of both the pre filter and the combined (main) filter.

• HEPA Filter: BOFA uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This features not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collaps.

• Reverse flow air (RFA) technology: The RFA technology feature causes a fall in velocity and air direction change. Large particulate falls out of the airstream into the filter's drop out chamber. With less particulate entering the filter media the filter life is significantly increased, enhancing filter capture performance and ensure longer life.

• Automatc flow control (AFC) technology: Automatic flow control (AFC) allows the operator to preset the correct airflow rates for the specific application, subsequently maintaining the airflow. This generates lower noise levels and ensures further protection of the more expensive HEPA filters.

• Patented technology: BOFA invests in innovation and our products and technology have a heritage of being tried, tested and trrusted for over 30 years. As the market leader, we are proud of our product designs and technology and take great care in protecting this intellectual property and our integrity. Our product range includes aspects which are protected under patent copyright, design copyright, registered design and trade mark laws.

• Dimensions (H x W x D): 1205 x 615 x 790mm

• Cabinet Construction: Powder coated mild steel

• Airflow / Pressure: 1250m³/hr / 735mbar

• Electrical Data: 230v 1ph 50/60Hz Full load current: 21.6 amps / 3.3kw

• Noise Level: <68dBA (at typical operating speed)

• Weight: 102kgs

Pre Filter Specifications

• Volume Area: 100ltrs approx

• Filter Media: Polyester

• Filter Media Construction: 8 pocket bag filter

• Surface Media Area: 2.5m² approx (26.9 ft²)

• Filter Efficiency: 95% @ 0.9 microns

HEPA Filter Specifications

• HEPA Filter Media: Glass fibre

• HEPA Media Construction: Maxi please construction with webbing spacers

• Surface Media Area: 7.5m² approx (80.7 ft²)

• Filter Efficiency: 99.997% @ 0.3 microns

Replacement Filters

• Bag Filter Part Number: A1030395

• HEPA Filter Part Number: A1030394

• Drilling

• Mechanical Engraving

• CNC

• Rotary Engraving

• Chip Collectors

• Routing

• Grinding

• Weld Cleaning

IQ Operating System Data Sheet
