Bofa DentalPRO Base Dust Extraction System
Image for Illustrative Purposes Only
BOFA International Logo

BOFA DentalPRO Base Dust Extraction System

SKU: BOFDL1342A0000

DL1342A0000
Call for Pricing
Out of Stock: Available to Order
Get a Price Match

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

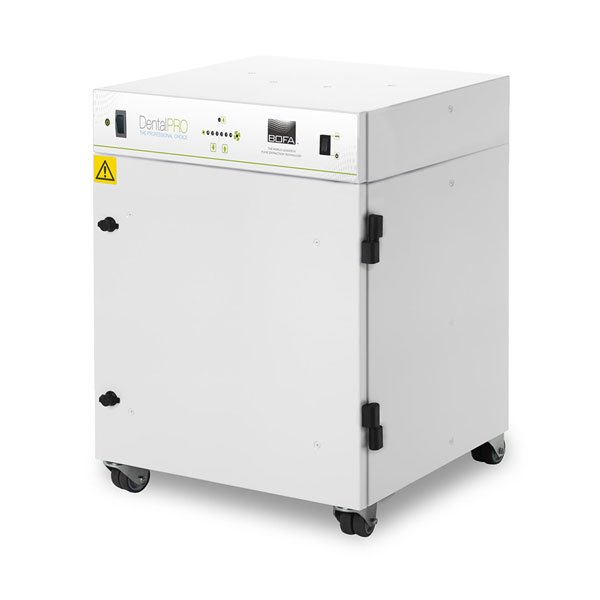

BOFA DentalPRO Base Dust Extraction System

BOFA's DentalPRO Base is a ride on dust extraction system, which effectively removes smaller particulates generated during the CAD/CAM milling of dental implants.

The unit is designed for the milling machine to be securely placed on top of the extraction system, which itself doubles up as a space saving stand.

The unit's high efficiency two-stage filtration process allows technicians to work safe in the knowledge that dust particles
are being effectively removed, to maintain a clean working environment. The bag filter has a large 18 litre capacity and the HEPA filter has an efficiency of 99.997% down to 0.3 microns.

The high vacuum blower is brushless and designed for longer continuous running before requiring servicing. Comes with an onboard compressor providing the miller with clean oil-free air for all compressed air requirements.

  • HEPA Filter: Bofa uses mini pleaset design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

  • Multi voltage sensing (MVS) Unit: Automatically senses the local voltage and adjusts accordingly, between 90-275V.

Discover the BOFA DentalPRO Base Dust Extraction System at Mektronics Australia – your trusted source for quality tools and equipment!

  • Sit on unit - providing a space saving stand

  • Digital speed control - for variable airflow rates

  • Auto sensing voltage (9-257v) for global use

  • High vacuum pump for effective captured from source

  • HEPA filtration

  • Filters with long life and low replacement cost

  • High efficiency 5 layer large capacity easy change filter

  • Filter full indicator

  • Quiet in operation

  • Dimensions (HxWxD): 610x670x765mm

  • Cabinet construction: Powder coated mild steel

  • Max airflow/pressure: 285m³/hr / 96mbar

  • Electrical data: 115-230v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw

  • Noise level: < 66dBA (at typical operating speed)

  • Weight: 50kgs

Pre Filter Specifications

  • Filter media: Glass fibre

  • Filter media construction: Bag filter

  • Filter capactiy: 18 litres

  • Filter efficiency: 99% @ 0.3 microns

HEPA Filter Specifications

  • HEPA filter media: Glass fibre

  • HEPA media construction: Maxi pleat construction with webbing spacers

  • Filter efficiency: 99.997% @ 0.3 microns

Replacement Filters

  • Bag Filter: A1030382

  • HEPA Filter: A1030383
