Bofa AD Oracle SA iQ Laser Fume Extractor Stainless Steel
Image for Illustrative Purposes Only
BOFA International Logo

BOFA AD Oracle SA iQ Laser Fume Extractor Stainless Steel

SKU: BOFL2374

L2374AD Oracle SA iQ

$6,312.31

EX. GST
$6,943.54
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

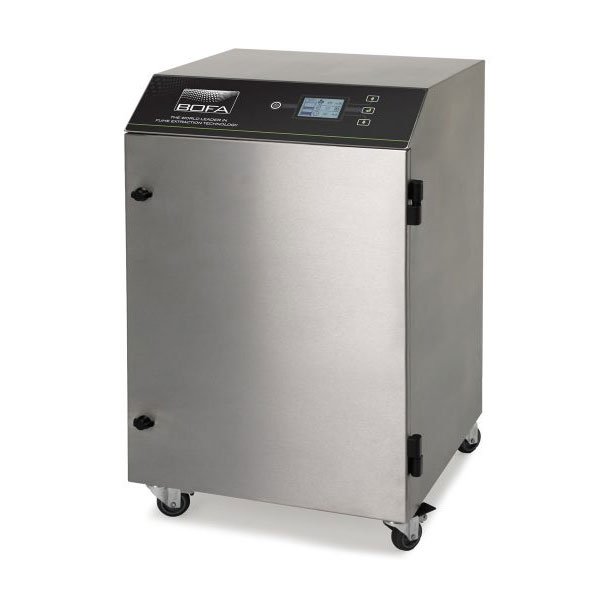

BOFA AD Oracle SA iQ Laser Fume Extractor Stainless Steel

This is our most technically advanced laser fume extractor.

This is our most technically advanced laser fume extractor. The AD Oracle SA iQ has been enhanced with BOFA's iQ Operating System, RFA and ACF technology and packs a powerful range of unique features into one compact unit. It uses a smaller pre filter to the AD Oracle iQ making it ideal for lighter use applications.

  • Intelligent (iQ) Operating System: Advanced extraction monitoring and control system bringing multiple performance enhancements for higher efficiency of extraction, independant filter status monitoring and integral design features that combine to deliver a lower cost of ownership. It monitors the status of both the pre filter and combined (main) filter.

  • HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

  • Automatic Flow Control (AFC) Technology: Automatic flow control (AFC) alows the operator to preset the correct airflow rates for the specific application, subsequently maintaining the airflow. This generates lower noise levels and ensures further protection of the more expensive HEPA filters.

  • Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.

  • Reverse Flow Air (RFA) Technology: The RFA technology feature causes a fall in velocity and air direction change. Larger particulate falls out of the airstream in the filter's drop out chamber. With less particulate entering the filter media the filter life is significantly increased, enhancing filter capture performance and ensure longer life.

  • Multi voltage sensing (MVS) unit: Automatically senses the local voltage and adjusts accordingly, between 90-275V.

Discover the BOFA AD Oracle SA iQ Laser Fume Extractor Stainless Steel at Mektronics Australia – your trusted source for quality tools and equipment!

  • iQ Operating system

  • Automatic flow control

  • Auto sensing voltage (90v-257v)

  • Reverse flow air filter technology (RFA)

  • Advanced carbon filter technology (ACF)

  • High contrast display

  • Real time airflow reading

  • Independant filter condition monitoring

  • 'Run safe' operation

  • Remote diagnostics via USB

  • Low cost replacement filters

  • HEPA and Gas Combined Filter

  • Low noise levels

  • Lockable castors

Optional Features (can be added at additional cost)

  • 24V Stop/start (A2001)

  • Filter change / System failure signal (A2002)

  • VOC Monitoring (A2003)

  • Hose Kit (A1020008)

  • Dimensions (HxWxD): 745x450x515mm

  • Cabinet construction: Brushed stainless steel

  • Airflow/pressure: 380³/hr / 96mbar

  • Electrical data: 90v - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw

  • Noise level: < 60dBA (at typical operating speed)

  • Weight: 58kg

Combined HEPA/Gas Filter Specifications

  • HEPA Filter Media: Borosilicate

  • HEPA Media Construction: Maxi pleat construction with glue bead spacers

  • Filter Housing: Zintec mild steel

  • Treated Activated Carbon: 15kg (33lbs)

  • Filter efficiency: 99.997% @ 0.3 microns

Pre Filter Specifications

  • Surface Media Area: 3.15m² approx (33.894ft²)

  • Filter media: Borosilicate

  • Filter media construction: Folded pleat

  • Filter housing: Cardboard

  • Filter efficiency: 95% @ 0.9 microns

Replacement Filters

  • Pre-filter: A1030344

  • Combined filter: A1030155
