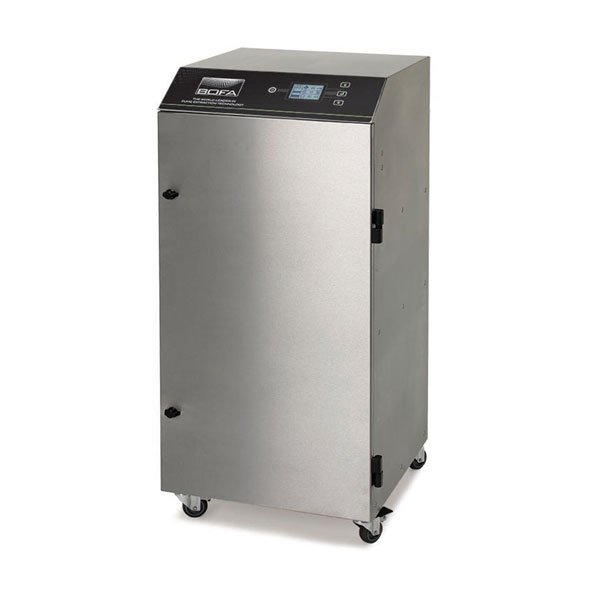

BOFA AD Oracle iQ Dust & Fume Extraction System Stainless Steel
SKU: BOFL1974
L1974AD Oracle iQ
DESCRIPTION
Features
Specifications
Shipping & Delivery
BOFA AD Oracle iQ Dust & Fume Extraction System Stainless Steel
The premier choice and best in class solution with unique features in a compact unit.
The 'Best in Class' high performance AD Oracle has now been further enhanced with BOFA's iQ Operating System, combining a range of unique features into one compact unit.
The iQ Operating System performs at two distinct levels. Operators benefit from ease of operation and clarity of real time information, the system also provides a case of analytical data, enabling users to download performance and operating parameters for evaluation purposes.
The iQ system takes performance and safety parameters to a new level and ensures that maintenance downtime and ownership costs are kept to a minimum.
-
Intelligent (iQ) Operating System: Advanced extraction monitoring and control system bringing multiple performance enhancements for higher efficiency of extraction, independent filter status monitoring and integral design features that combine to deliver a lower cost of ownership. It monitors the status of both the pre filter and combined (main) filter.
-

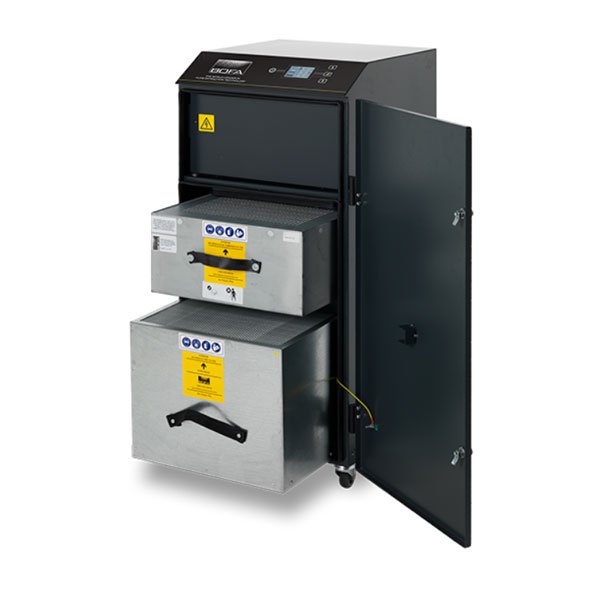

DeepPleat DUO pre filter: This pre filter comes in three main sizes and incorporates a massive drop-out chamber and large volume area within the base of the filter. Above the drop-out chamber but still within the housing there is a sealed 200mm deep please layer of F8 media giving an impressive surface area.
-
HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.
-
Automatic flow control (AFC): Automatic flow control (AFC) allows the operator to preset the correct airflow rates for the specific application, subsequently maintaining the airflow. This generates lower noise levels and ensures further protection of the more expensive HEPA filters.
- Reverse flow air (RFA) technology: Smart filter technology provides assured filter performance by incorporating proven RFID technology: Each filter has a uniquely coded non-removable label allowing the iQ Operating System to establish authenticity and suitability of the filter being used. The iQ system keeps the extraction system working at the best possible level, with the highest performance of airflow and filtration.
-
Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
- Multi voltage sensing (MVS) unit: Automatically senses the local voltage and adjusts accordingly, between 90-275V.
Discover the BOFA AD Oracle iQ Dust & Fume Extraction System Stainless Steel at Mektronics Australia – your trusted source for quality tools and equipment!
-
Reverse flow filter technology
-
Automatic flow control
-
Auto sensing voltage (90v-257v)
-
Advanced carbon filter technology
-
HEPA and Gas combined filter
-
High contrast display
-
Real time airflow reading
-
Independant filter condition monitoring
-
Filter status warnings
-
'Run Safe' operation
-
Remote diagnostics via USB
Optional Features (can be added at additional cost)
-
24V Stop / Start (A2001)
-
Filter Change Signal (A2002)
- VOC Gas Sensor (Volatile Organic Compound) (A2003)
-
Dimensions (HxWxD): 975x455x505mm
-
Cabinet construction: Stainless steel
-
Airflow/pressure: 380³/hr / 96mbar
-
Electrical data: 90v - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
-
Noise level: < 60dBA (at typical operating speed)
- Weight: 65kg
DeepPleat Pre Filter Specifications
-
Surface media area: 12m² approx (129.12 ft²)
-
Filter media: Glass fibre
-
Filter media construction: Maxi pleat with webbing spacer
-
Filter housing: Zintec mild steel
-
Filter efficiency: F8, 95% @ 0.9 microns
-
Inlet size: 75mm (0.24ft)
-
Dropout chamber size: 16.2 litres
-
Filter media pleat size: 200mm (0.65 ft)
Combined Filter Specifications
-
HEPA Filter Media: Glass fibre
-
HEPA Media Construction: Maxi fold construction with webbing spacers
-
Filter Housing: Zintec mild steel
-
Treated Activated Carbon: 15gs approx (33 lbs)
-
Filter efficiency: H14 99.997% @ 0.3 microns
Replacement Filters
-
DeepPleat Pre filter: A1030156
- Combined HEPA/Gas Filter: A1030155
