BOFA AD Access Fume Extraction System Powder Coated

A compact and competitively priced fume extraction system for light duty laser marking, coding and engraving applications.

The introduction of low cost laser systems has led to the development of an entry level fum extraction solution in order to maintain safe operator working conditions and product quality.

The AD Access combines economic ownership with performance to match the small laser user. A three stage filter condition indicator is included as a standard feature, together with three stage filtration; DeepPleat pre filter, HEPA and chemical section.

  • DeepPleat Pre Filter: The DeepPleat pre filter incorporates a sealed pleated layer of F8 media of at least 100mm in height, giving an impressive surface area for its size.

  • HEPA Filter: Bofa uses mini pleast design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

  • Advanced Carbon Filter (ACF) Technology: ACF assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emmitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.

Discover the BOFA AD Access Fume Extraction System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!

  • Filter condition indicator

  • DeepPleat pre filter

  • Advanced carbon filter technology (ACF)

  • Long life, low cost replacement filters

  • Low noise levels

  • Small footprint

Optional Features (can be added at additional cost)

  • Remote stop/start interface (A2001)

  • Filter Change Signal (A2002)

  • VOC Gas Sensor (Volatile Organic Compound) (A2003)

  • Dimensions (HxWxD): 505x335x315mm

  • Cabinet construction: Powder Coated

  • Airflow/pressure: 180³/hr / 30mbar

  • Electrical data: 230v 1ph 50/60Hz Full load current: 0.9 amps / 135 watts

  • Noise level: < 61dBA (at typical operating speed)

  • Weight: 24kg

DeepPleat Pre Filter Specifications

  • Surface media area: 1.74m² approx

  • Filter media: Glass fibre

  • Filter media construction: 50mm maxi fold construction with webbing spacers (0.16 ft)

  • Filter efficiency: 95% @ 0.9 microns

Combined Filter Specifications

  • HEPA Filter Media: Glass fibre

  • HEPA Media Construction: Maxi fold construction with webbing spacers

  • Filter Housing: Zintec mild steel

  • Treated Activated Carbon: 7kgs approx (15.4 lbs)

  • Filter efficiency: 99.997% @ 0.3 microns

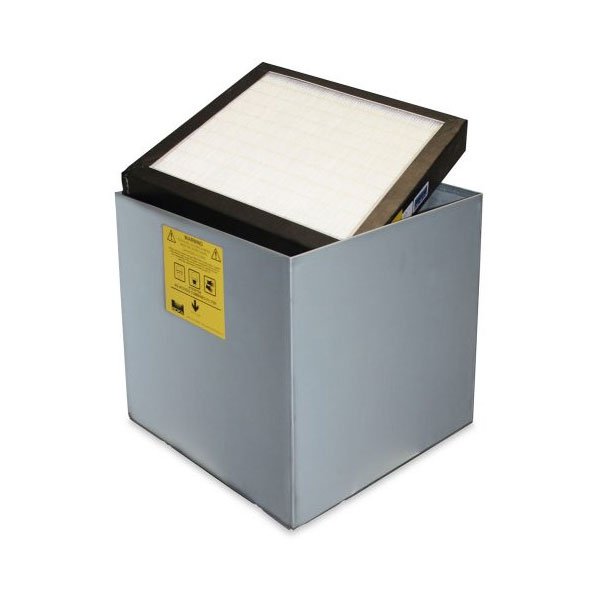

Replacement Filters

  • DeepPleat Pre filter: A1030153

  • Combined HEPA/Gas Filter: A1030154
