Image for Illustrative Purposes Only

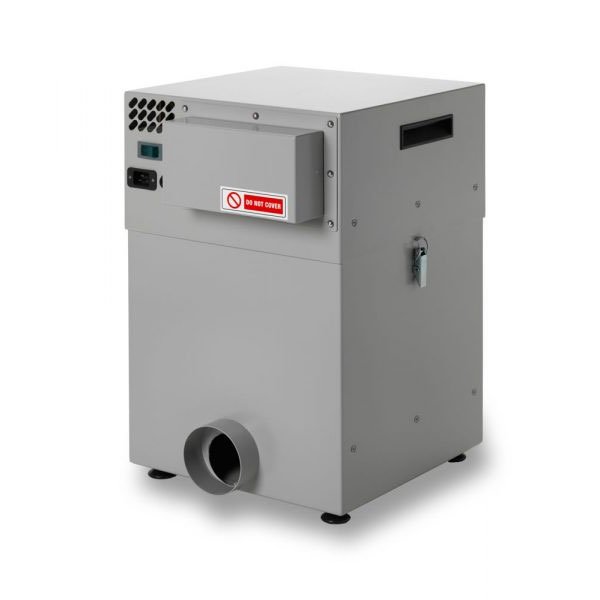

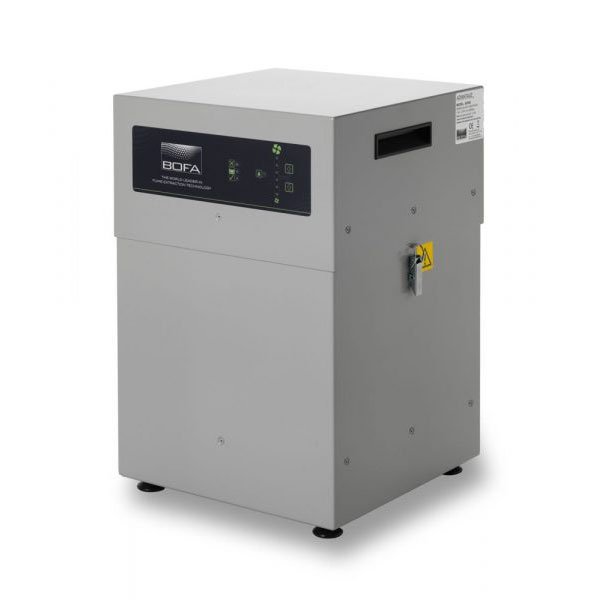

BOFA AD 350 Laser Fume Extraction & Filtration System Powder Coated
SKU: BOFL0542A
L0542AAD 350
DESCRIPTION
Features
Specifications
Shipping & Delivery
BOFA AD 350 Laser Fume Extraction & Filtration System Powder Coated
Fume extraction system for light duty laser marking, coding and engraving applications.
BOFA's AD 350 fume extraction and filtration system effectively removes potentially harmful fumes and particulates created during the laser marking process. By maintaining a dust-free operating area, the system helps to protect valuable equipment, maintain a higher quality mark, and reduce the number of rejects and contaminants.
The quiet and compact AD 350 effectively removes potentially harmful fumes and particulate created during light duty laser marking, coding and engraving applications making it ideal for use in schools, sign making workshops and small scale industrial environments.
- DeepPleat: The DeepPleat pre filter incorporates a sealed pleated layer of F8 media of at least 100mm in height, giving an impressive surface area for its size.
-
HEPA Filter: Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.
- Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
-
Reverse Flow Air (RFA) Technology: The RFA technology feature causes a fall in velocity and air direction change. Larger particulate falls out of the airstream in the filter's drop out chamber. With less particulate entering the filter media the filter life is significantly increased, enhancing filter capture performance and ensure longer life.
- Multi voltage sensing (MVS) unit: Automatically senses the local voltage and adjusts accordingly, between 90-275v.
Discover the BOFA AD 350 Laser Fume Extraction & Filtration System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
Blower with high airflow and pressure
-
Low cost replacement filters
-
Filter condition indicator
-
Low noise levels
-
Digital flow control system
Optional Features (can be added at additional cost)
-
24V Stop/start (A2001)
-
Filter change / System failure signal (A2002)
-
VOC monitoring (A2003)
-
Dimensions (HxWxD): 590x405x465mm
-
Cabinet construction: Powder coated mild steel
-
Airflow/pressure: 380³/hr / 96mbar
-
Electrical data: 115-230v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
-
Noise level: < 62dBA (at typical operating speed)
- Weight: 35kg
Coated Combined Filter Specifications
-
HEPA Filter Media: Borosilicate
-
HEPA Media Construction: Pleasted with glue bead spacers
-
Filter Housing: Zintec mild steel
-
Treated Activated Carbon: 9kgs approx
-
Filter efficiency: 99.997% @ 0.3 microns
DeepPleat Pre Filter Specifications
-
Surface Media Area: 6m² approx
-
Filter media: Borosilicate
-
Filter media construction: 100mm DeepPleat construction with glue bead spacers (0.32ft)
-
Filter efficiency: 95% @ 0.9 microns
Replacement Filters
- Combined HEPA/Gas Filter: A1030055
-
DeepPleat pre filter: A1030056
