BOFA AD 350 CU Cooling Filtration System
SKU: BOFL1652A
L1652AAD 350 CU
DESCRIPTION
Features
Specifications
Shipping & Delivery

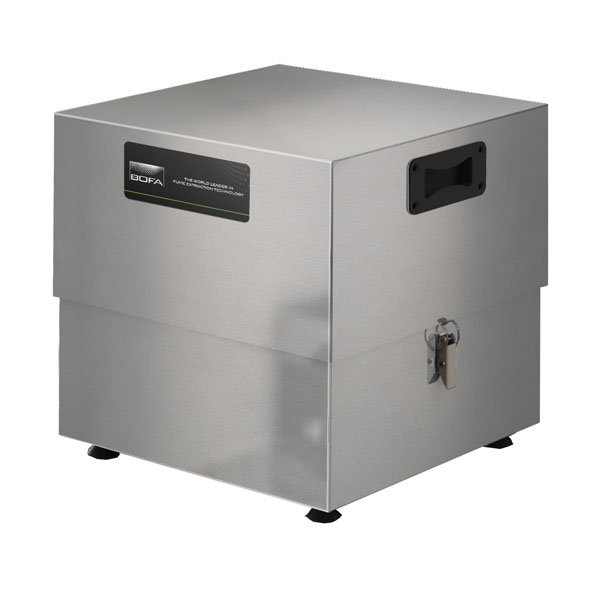

BOFA AD 350 CU Cooling Filtration System
This filtered cooling air system ensures optimal laser performance and reliability.
BOFA's Advantage 350 cooling filtration system has been designed to supply cool, filtered air to both the laser and power supply module. This clean, cool air ensures optimal laser performance and reliability. It can also be used as a seal to increase the IP rating of the laser.
DeepPleat Pre Filter: The DeepPleat pre filter incorporates a sealed pleated layer of F8 media of at least 100mm in height, giving an impressive surface area for its size.
Reverse Flow Air (RFA) Technology: The RFA technology features causes a fall in velocity and air direction change. Larger particulate falls out of the airstream into the filter's drop out chamber. With less particulate entering the filter media the filter life is significantly increased, enhancing filter capture performance and ensure longer life.
Discover the BOFA AD 350 CU Cooling Filtration System at Mektronics Australia – your trusted source for quality tools and equipment!
-
Reverse air flow technology
-
Low cost replacement filters
-
Low noise levels
-
Stainless steel unit
Optional Features (can be added at cost)
-
Remote stop/start interface (A2001)
- Filter Change Signal (A2002)
-
Dimensions (HxWxD): 595x380x380mm
-
Cabinet construction: Brushed stainless steel
-
Airflow/pressure: 350³/hr
-
Electrical data: 230v 1ph 50/60Hz Full load current: 2.0 amps
-
Noise level: < 68dBA (at typical operating speed)
- Weight: 18.5kg
DeepPleat Pre Filter Specifications
- Surface media area: 6m² approx (64.5 ft²)
-
Filter media: Glass fibre
-
Filter media construction: 100mm maxi fold construction with webbing spacers (0.32 ft)
-
Filter efficiency: 95% @ 0.9 microns
Replacement Filters
-
DeepPleat Pre filter: A1030056
