Bernstein ESD Personal Grounding Handling Set 900 x 610 x 2mm 5 Piece
SKU: BER9-361
9-361
DESCRIPTION
Features
Contents
Shipping & Delivery
Bernstein ESD Personal Grounding Handling Set 900 x 610 x 2mm 5 Piece
Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated plastic fibers (close skin contact necessary) and a spiral cable, which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC.
EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone).
Adjustable elastic wristband with woven in silver-plated synthetic fibers, allergy-free. Meets the safety requirements for wrist grounding according to BGFE. To ensure adequate insulation, the bracelet may only be stored in a dry place. Washing instructions for the bracelet: machine wash up to 30 ° C with soft washing powder, drying at low temperature (warm not hot), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for about 30 washing process.
Discover the Bernstein ESD Personal Grounding Handling Set 900 x 610 x 2mm 5 Piece at Mektronics Australia – your trusted source for quality tools and equipment!
-
Content: see parts list
-
ESD safe protection and workplace support for soldering and assembly
-
resistance 10^6 to 10^7 ohm (back side 10^3 to 10^4 ohm)
-
Platinum gray on top, black back of electrostatically dissipative synthetic rubber
-
with 2 press buttons 10 mm for ground connection
-
solder-resistant workplace pad with professional equipment for personal grounding
-
heat-resistant, abrasion-resistant, scratch proof
-
extremely wear-resistant, permanently elastic, Halogen free
-
measures 900 x 610 x 2 mm
-
weight 1472 g

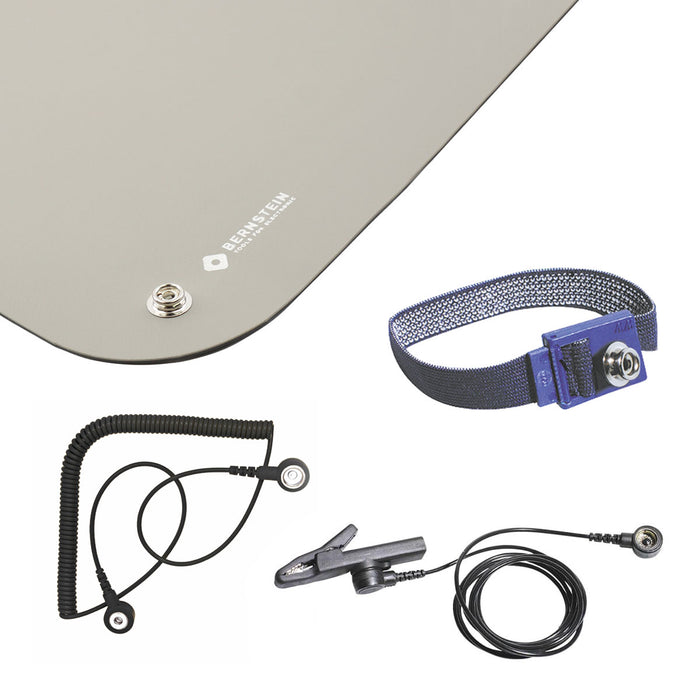

ESD handling set consists of:
-
9-361-0 ESD grounding mat grey 900x610x2 mm
-
9-342-1 ESD contact bracelet blue
-
9-342-2 ESD spiral cord for bracelet 70 - 200 cm black
-
9-343-1 ESD grounding cable 1 MOhms, 1800 mm 2 press-studs 10/10 mm
-
9-353 ESD crocodile clip
