Bernstein ESD Personal Grounding Handling Set 500 x 400 x 0.35mm Foldable 5 Piece
SKU: BER9-354
9-354
DESCRIPTION
Features
Contents
Shipping & Delivery
Bernstein ESD Personal Grounding Handling Set 500 x 400 x 0.35mm Foldable 5 Piece
Antistatic mat with a surface resistance of less than 10^8 Ohm (DIN 54345-1, DIN 53482), extremely tear-resistant, cold resistance -10 °C (DIN EN 1876-1), heat resistance +70 °C, flame-retardant (according to LOBA regulation, NFP 92507: M2), abrasion-resistant, antimicrobial.

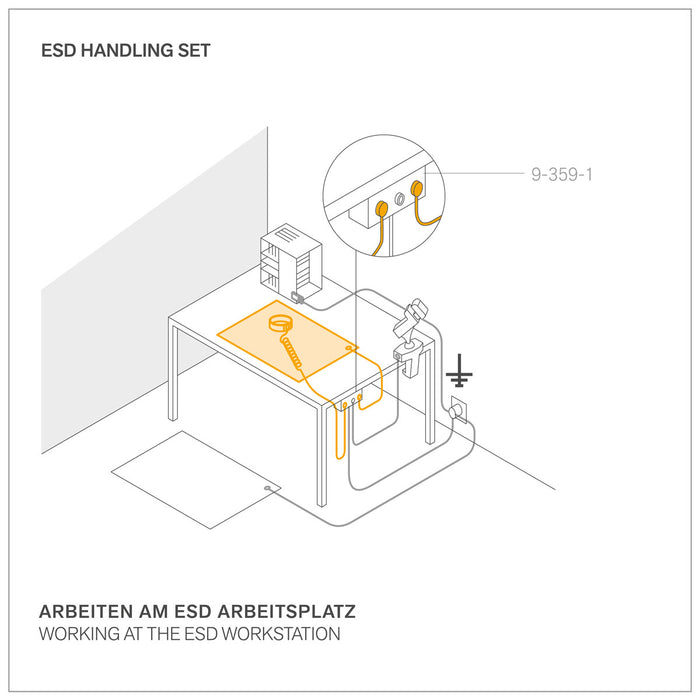

EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone).
Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated plastic fibers (close skin contact necessary) and a spiral cable, which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC. To ensure adequate insulation, the bracelet may only be stored in a dry place. Washing instructions for the bracelet: machine wash up to 30 ° C with soft washing powder, drying at low temperature (warm not hot), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for about 30 washing process.
Discover the Bernstein ESD Personal Grounding Handling Set 500 x 400 x 0.35mm Foldable 5 Piece at Mektronics Australia – your trusted source for quality tools and equipment!
-
Content: see parts list
-
foldable workplace pad 500 x 400 x 0.5 mm
-
black, dissipative 10^8 ohm (surface resistance to DIN IEC 61340-4-1)
-
mat with 2x 10 mm press buttons
-
adjustable elastic wristband with woven in silver-plated synthetic fibres, allergy-free.
-
Meets the safety requirements for wrist grounding according to BGFE.
-
spiral cable 2.4 m highly elastic
-
earthing cable 1.5 m with 2 press buttons
-
for connection to a grounding plug
-
weight 160 g

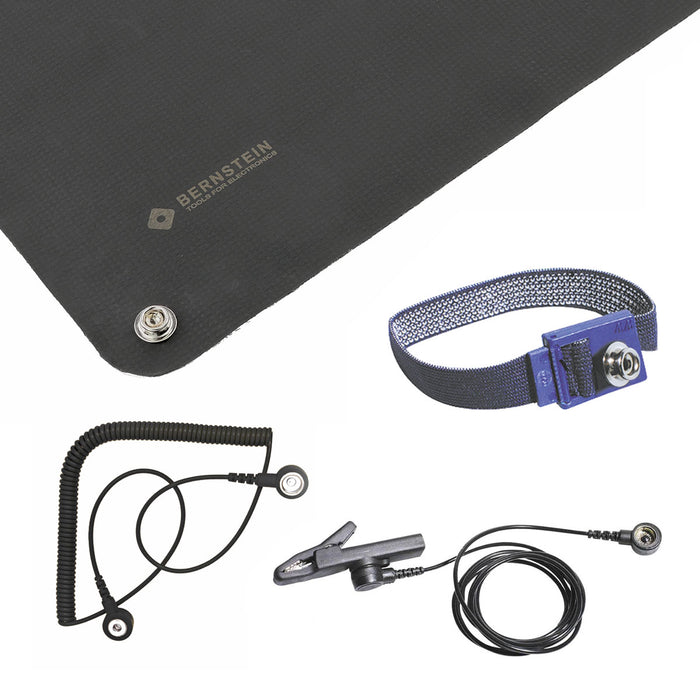

ESD handling set consists of:
-
9-354-100 ESD table mat 500x400x0.5 mm
-
9-342-1 ESD contact bracelet blue
-
9-342-2 ESD spiral cord for bracelet 70 - 200 cm black
-
9-343-1 ESD grounding cable 1 MOhms, 1800 mm 2 press-studs 10/10 mm
-
9-353 ESD crocodile clip
