Bernstein ESD Contact Bracelet with Spiral Cord and Crocodile Clip
SKU: BER9-342
9-342
DESCRIPTION
Features
Contents
Shipping & Delivery

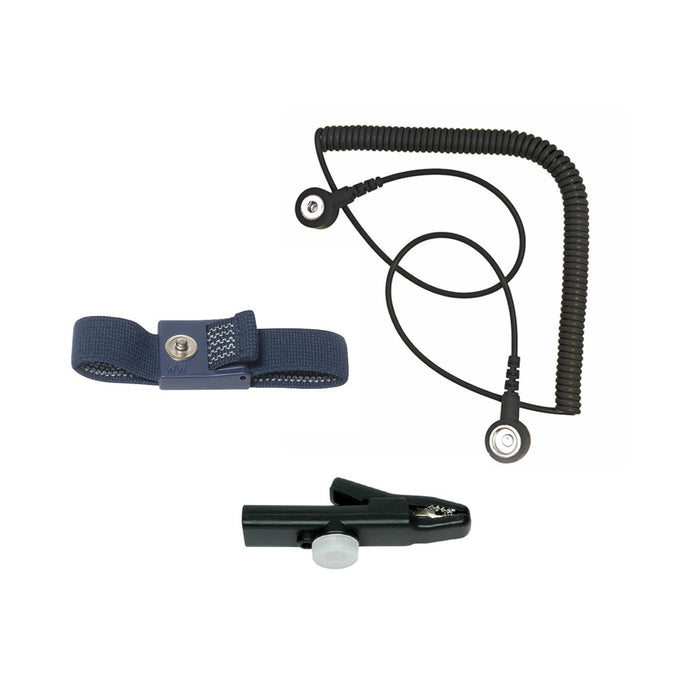

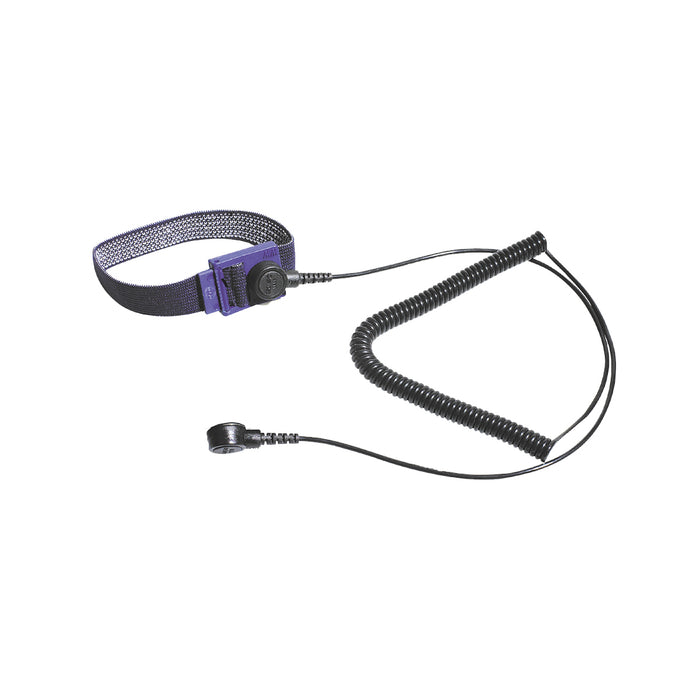

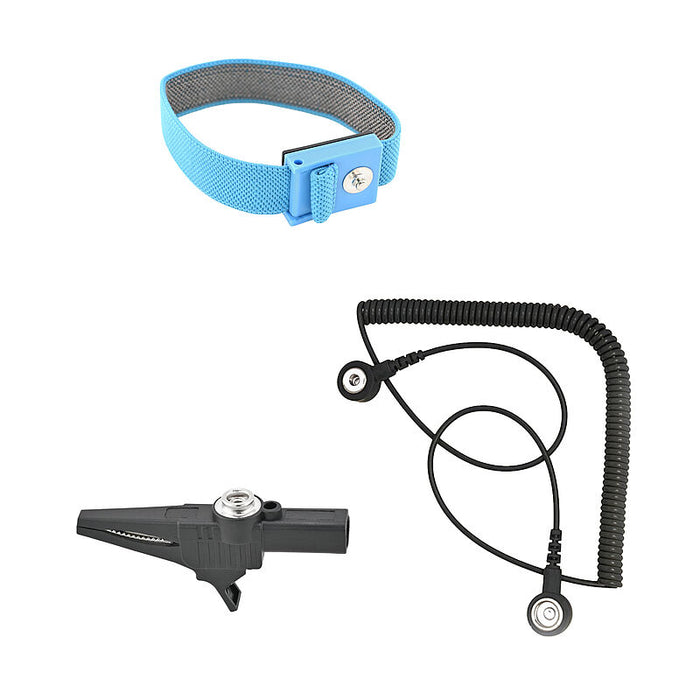

Bernstein ESD Contact Bracelet with Spiral Cord and Crocodile Clip
Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated synthetic fibers (close skin contact necessary) and a spiral cable which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC. To ensure adequate insulation, the bracelet may only be stored in a dry place.
Washing instructions for the bracelet: machine wash up to 30 ° C with soft washing powder, drying at low temperature (warm not hot), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for about 30 washing process.
Discover the Bernstein ESD Contact Bracelet with Spiral Cord and Crocodile Clip at Mektronics Australia – your trusted source for quality tools and equipment!
-
Bracelet and cable EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone).
-
Meets the safety requirements for wrist grounding according to BGI 818 (DIN EN 61340-5-1)
-
adjustable, anti-allergic, washable (woven silver-plated synthetic fibres)
-
belt length 200 mm
-
press buttons 3-4 mm for wrist strap and 10 mm for ground contact connection
-
highly elastic 2400 mm long spiral cable
-
cable: 2 x 1 megohm safety resistor, bracelet: Resistance inside 10^3-10^5, outside 10^7-10^9
-
additionally insulated crocodile clip for grounding with clamp connection
-
color dark blue
-
weight 60 g
ESD contact bracelet consists of:
-
9-342-1 ESD contact bracelet blue
-
9-342-2 ESD spiral cord for bracelet 70 - 200 cm black
-
9-353 Crocodile clip, insulated banana plug with 10 mm push button
