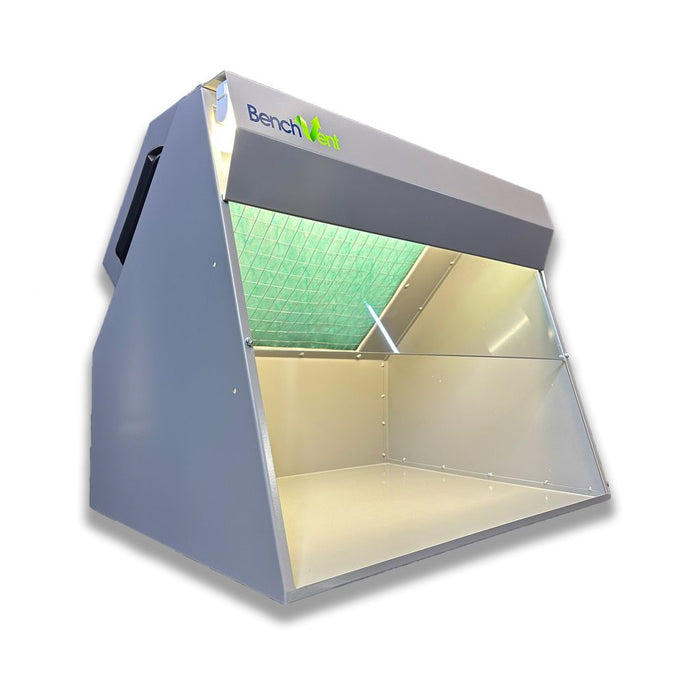

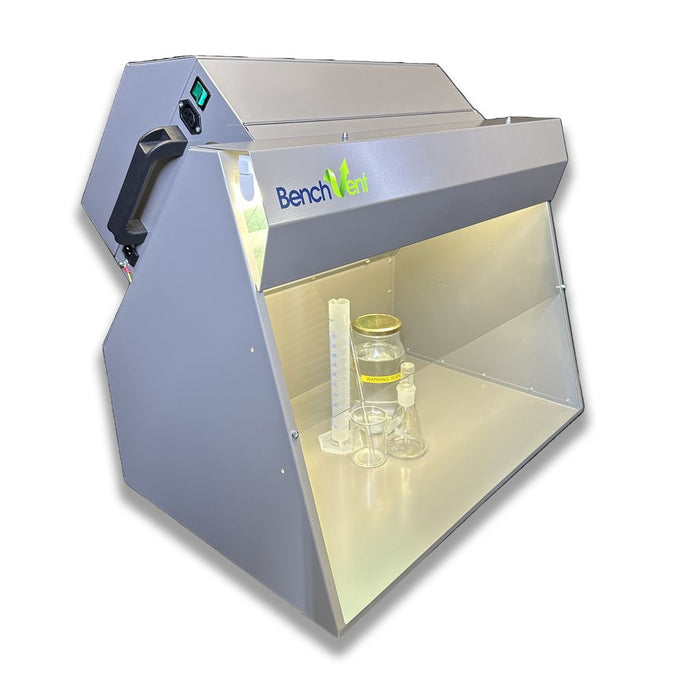

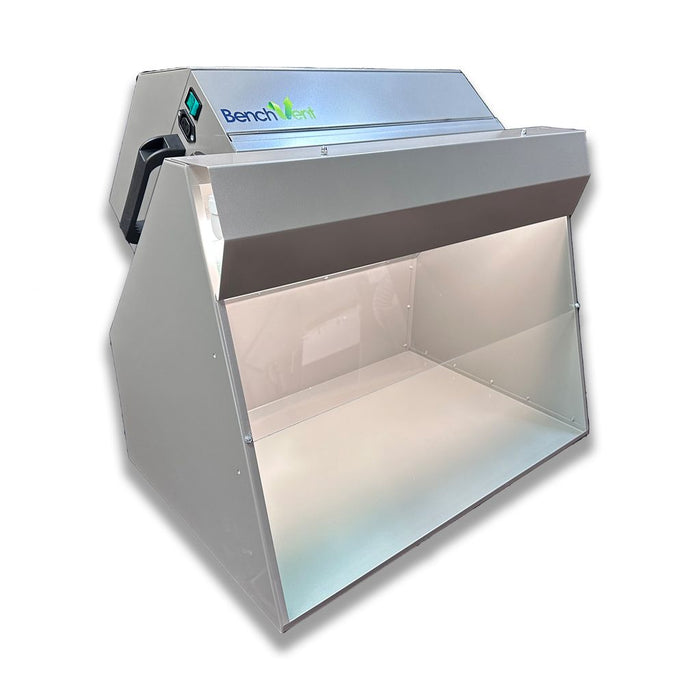

BenchVent Recirculating Fume Cabinet (Hood 570 x 525 x 450) BV660H-C
The BenchVent BV660H-C a re-circulatory hood mounted filtration cabinet with a high-efficiency carbon filter specifically designed to provide local exhaust ventilation in areas where it's not possible to use ducted lev unit or fume filtration cabinet. This unit has a similar specification as the BV660H-D, but features a higher-efficiency carbon filter which cleans the air before circulating it back in the room.
All BenchVent filtration and extraction systems carry a lifetime guarantee giving customers full peace of mind when it comes to providing a cleaner and healthier working environment for both employees, customers and students.
High Quality Filtration and Filters
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to 5 micron particles. (Optional EPA filters available). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated. These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates within the hood enclosure are filtered and cleaned air is exhausted to the top rear of the cabinet.
NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES
Discover the BenchVent Recirculating Fume Cabinet (Hood 570 x 525 x 450) BV660H-C at Mektronics Australia – your trusted source for quality tools and equipment!
The BV660H-C is for use in areas where external venting is impractical and hydrocarbon vapor and gas filtration is necessary. This unit is capable of filtering fumes, vapours and particles from:
- Applications include the handling and use of Electrochemicals (cleaning solvents, conformal coatings etc.) resins, sealants and adhesives both in aerosol and static form, solder pots and solder irons. Also used in orthopaedics and dental laboratories for controlling staff exposure to, typically, methyl methacrylate, cyanoacrylate adhesives and for the safe weighing of hazardous powders.
-
Clear polycarbonate panel for protection
-
Hood lighting
-
Large capacity making it ideal for a wide range of uses
-
Filter unit with centrifugal fan
-
Hood Enclosure
-
Hood Light
-
Polycarbonate hinged front panel
-
1 x Particulate filter
-
1 x Activated Carbon Filter
-
Power Lead
-
Data/Warranty Booklet
View the datasheet HERE
| Weight |
56 kg |
|---|---|
| Dimensions |

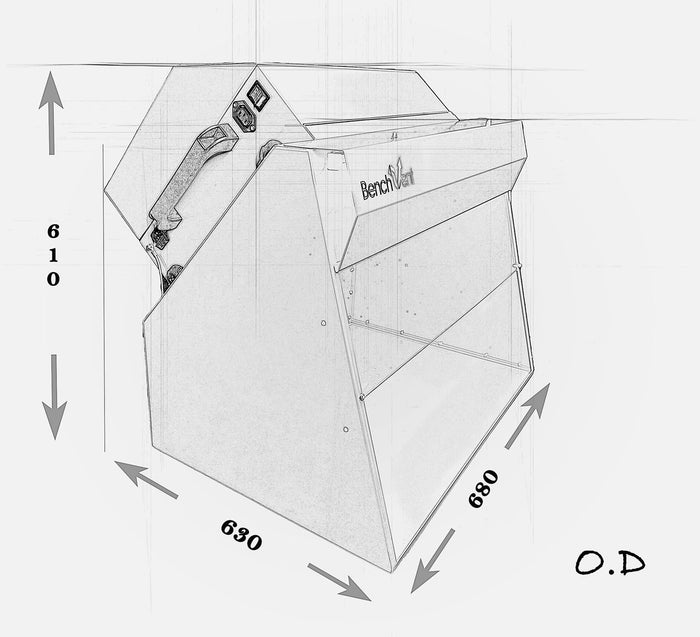

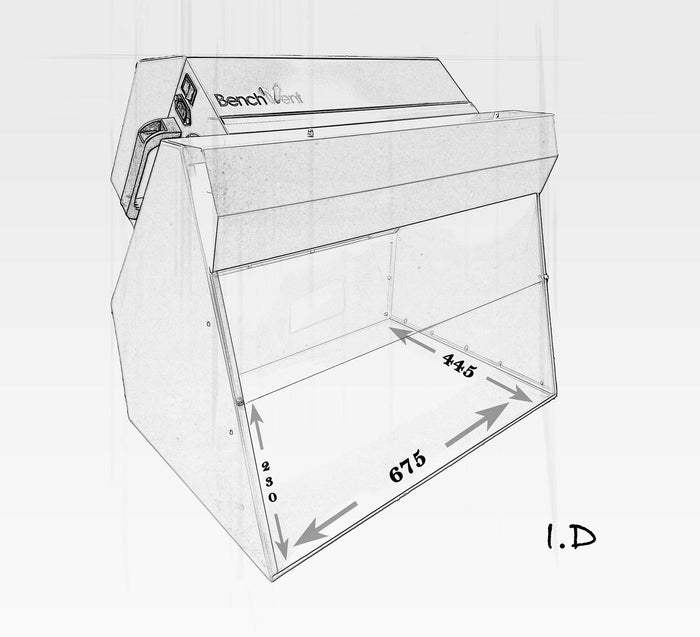

670x525x450 (wxhxd) [internal] 680x600x450 (wxhxd) [overall] |
| Description |
Steel construction finished in grey - fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting - particulate (intake) filter - bonded carbon filter - centrifugal blower, external rotor motor type brush-less, UL, VDE and CSA approved - sealed electricals, downstream of filters. |
| Air Volume at Free Air |
355m3/hr |
| Ave. Air Velocity at Filter Face |
0.50 m/sec |
| Ave. Air Velocity at Hood Face |
0.50 m/sec |
| Filters |
Particulate: IFA3 - Carbon: AC200 - Optional EPA: HE495 |
| Noise Level LAeq dB(A |
60 db(A) |
