BenchVent Hooded & Ducted Air Extraction Cabinet BV200H-D
SKU: BV200H-D
BV200H-D
DESCRIPTION
Inclusions
Application
Features
Resources
Specifications
Shipping & Delivery
BenchVent Hooded & Ducted Air Extraction Cabinet BV200H-D

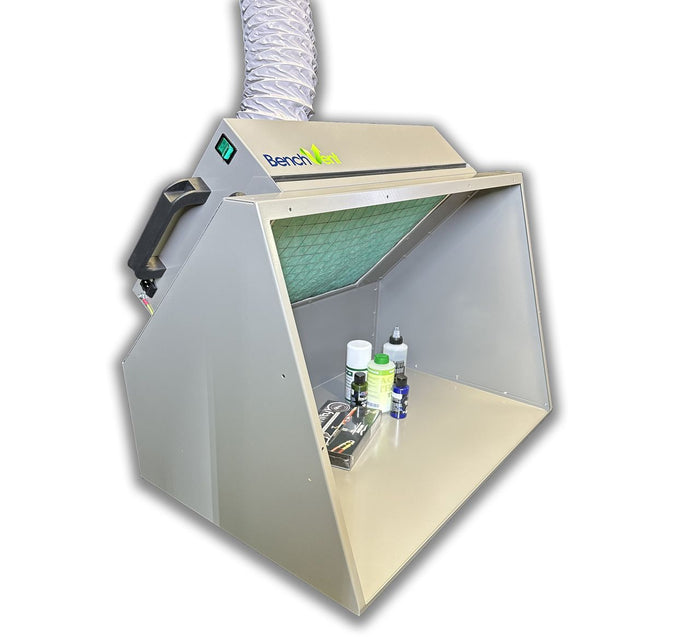

The BenchVent BV200H-D A2 ducted hood mounted extraction cabinet is a general purpose workstation for light aerosol spray and airbrush use. It is designed to capture dust and eliminate fumes/vapours for a safer working environment that meets the CoSHH regulations.

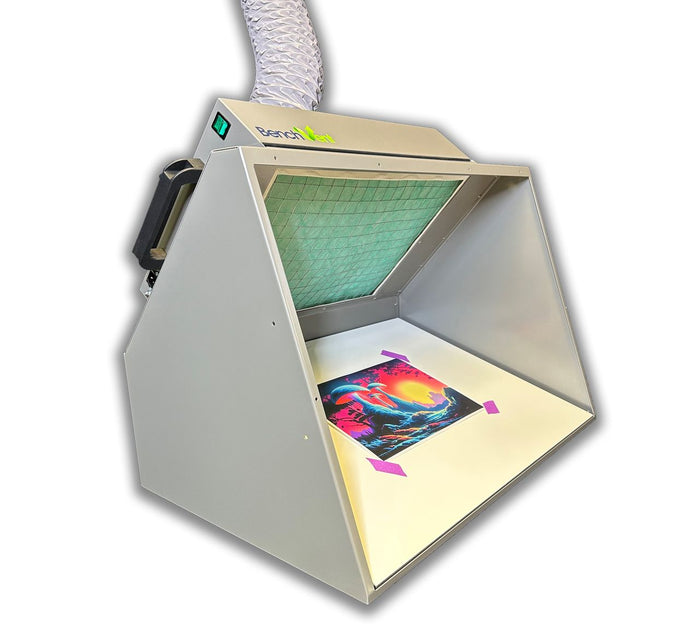

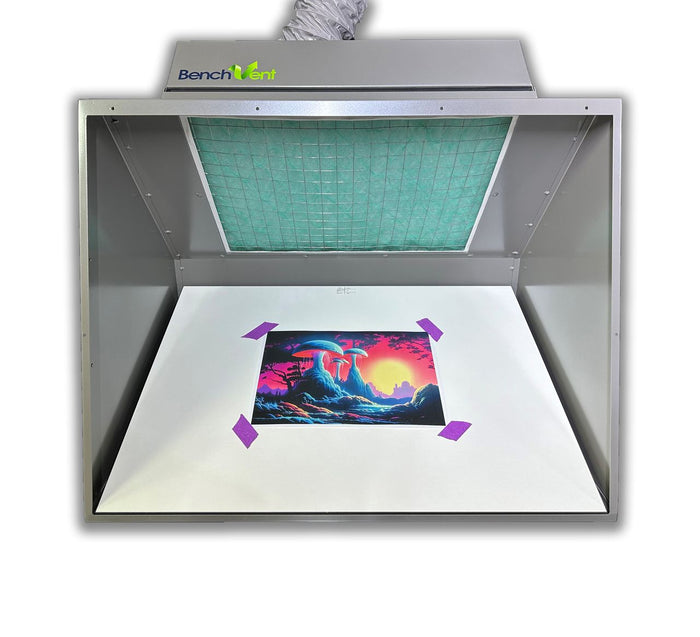

All BenchVent filtration and extraction systems carry a lifetime guarantee, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on. For artwork applications, standard A2 drawing boards can be placed within the hood enclosure.
The boards fit at an angle for efficient overspray capture. 3D items, models, printed circuit boards etc. may be placed onto the hood base for spraying, cleaning, sanding, gluing etc. The Flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window to facilitate portability or convenience.
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to approx. 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
NOTE: ADDITIONAL FREIGHT CHARGES APPLY FOR BULKY PRODUCTS
Discover the BenchVent Hooded & Ducted Air Extraction Cabinet BV200H-D at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter unit with fan(s)
-
Hood Enclosure
-
1 x Particulate filter
-
Power Lead
-
Data/Warranty Booklet
Filtration of:
-
Aerosol adhesives (glue booth for Spray Mount)
-
Aerosol lacquers and fixatives
-
Airbrush sprays applied to artwork up to A1 size. A2 or A1 drawing boards can be placed into the hoods at an angle for efficient overspray capture.

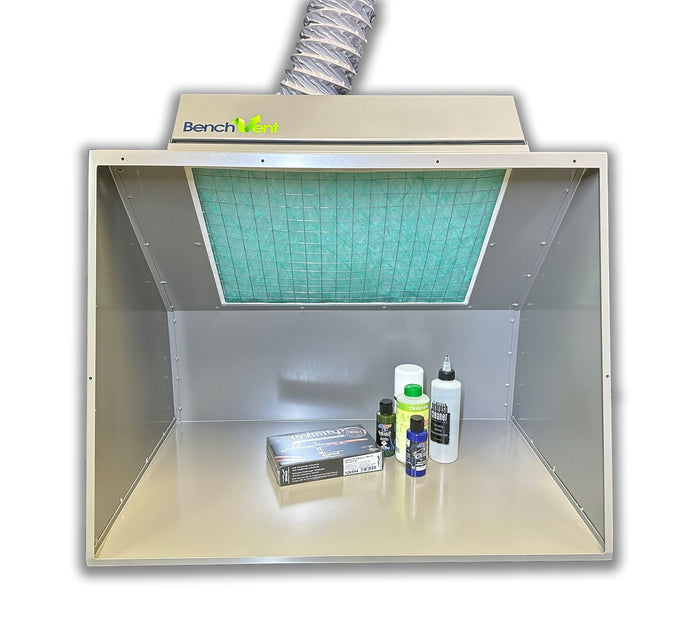

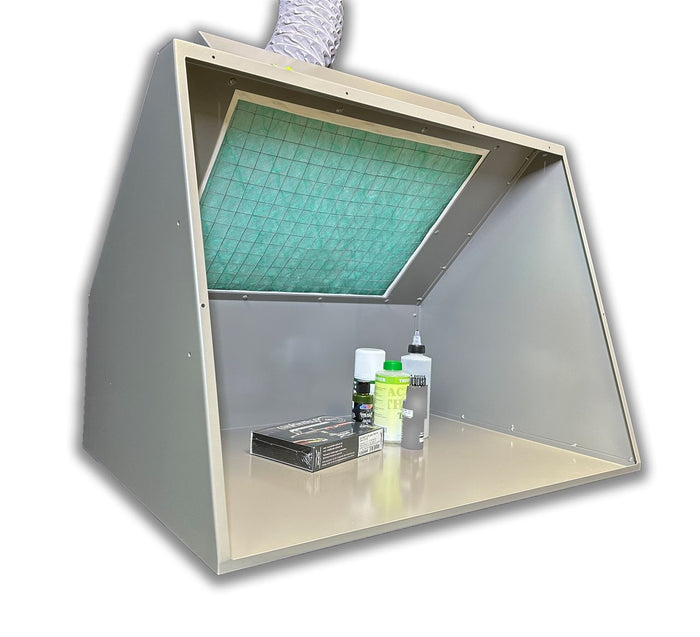

The workstation hood also accommodates prototypes, models, ceramic parts, PCB's etc, placed onto the hood base to be sprayed, soldered, cleaned, glued, moulded or sanded etc.
These cabinets are designed for studio / classroom / workshop cleanliness and for immediate operator protection whereby 'large' particulates (> 5 microns) are filtered out and 'fine' particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct.
-
355m³/hr air volume suitable for a wide range of extraction applications
-

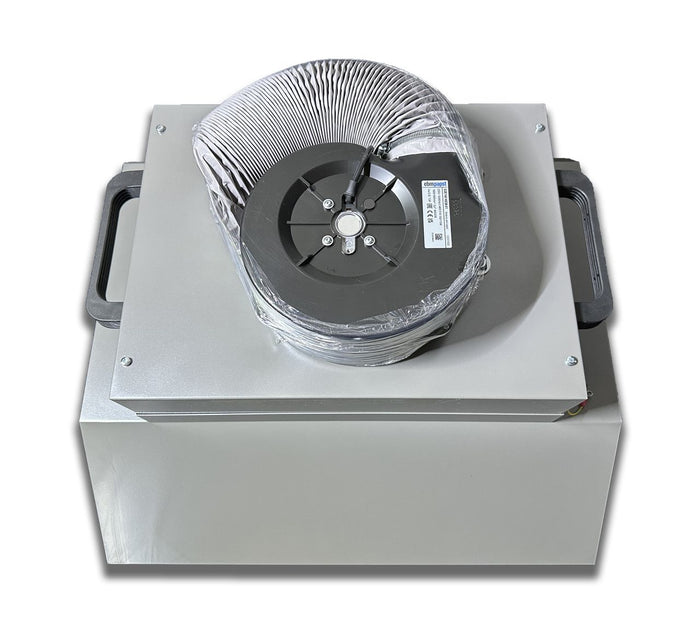

Built with a centrifugal blower via a three stage graduated fibre particulate filter complete with a high particle holding capacity, ensuring long filter life
-
Carry handle to aid with portability
View the datasheet HERE
| Weight |
56 kg |
|---|---|
| Dimensions |

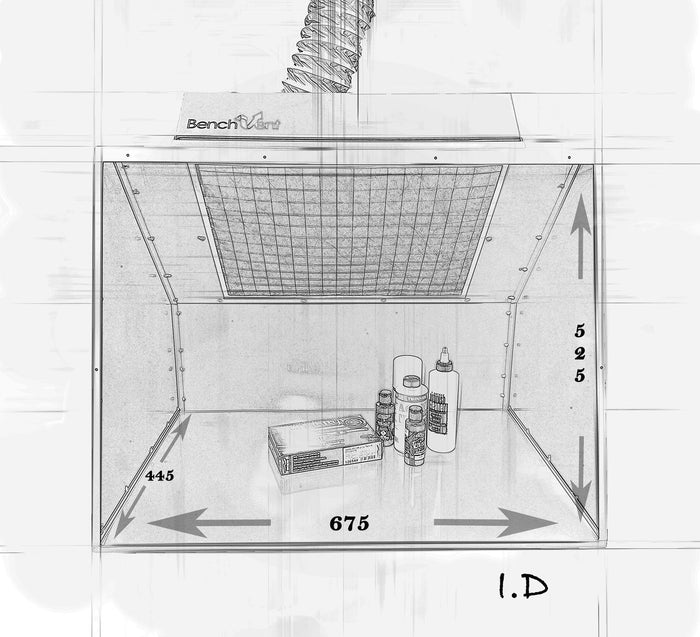

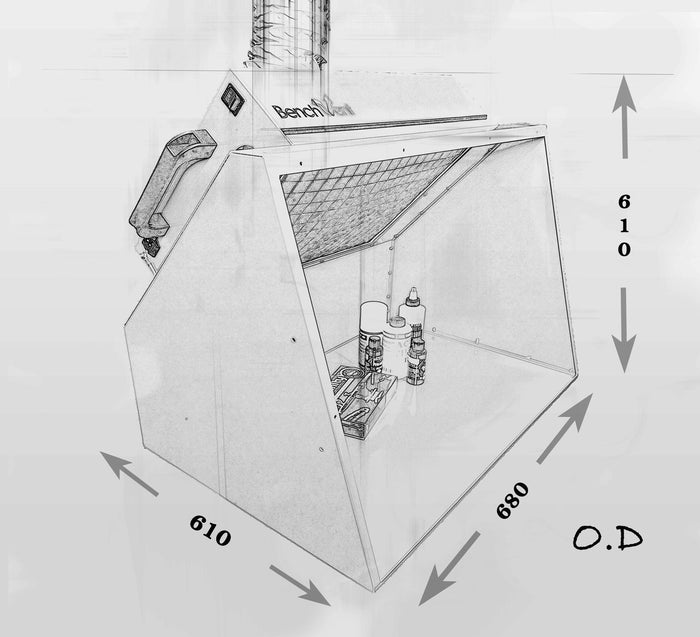

670x525x450 (w x h x d) [internal] 680x600x450 (w x h x d) [overall] |
| Description |
Steel construction finished in grey €“ fan/filter unit mounted onto hood enclosure €“ particulate filter €“ centrifugal blower €“ external rotor motor type, brushless, UL, VDE and CSA approved -sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. |
| Air Volume at Free Air |
355 m3/hr |
| Ave. Air Velocity at Filter Face |
0.60 m/sec |
| Ave. Air Velocity at Hood Face |
0.25 m/sec |
| Fan Motor Spec |
230V, 50Hz, 105W, 115V 60 Hz 115W |
| Filters |
Particle Filter: IFA3 |
| Noise Level LAeq dB(A) |
58 db(A) |
