BenchVent Hooded Air Filtration Cabinet BV200H

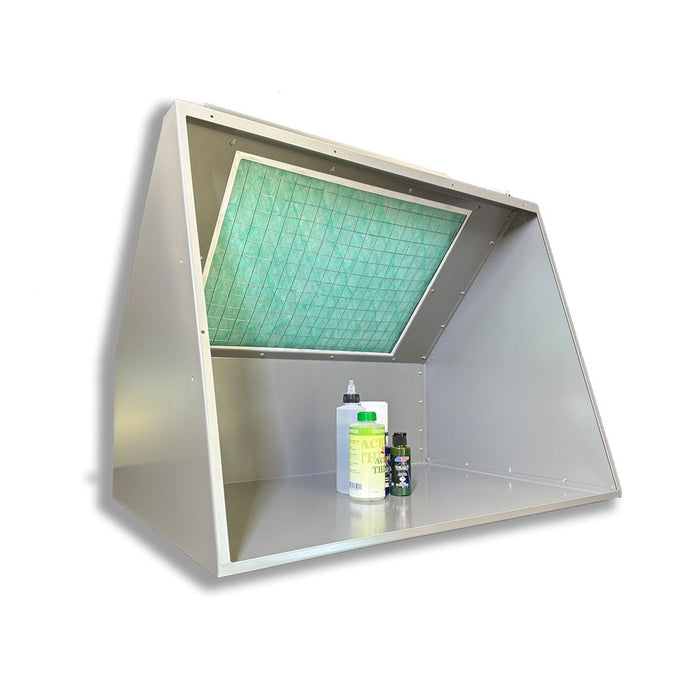

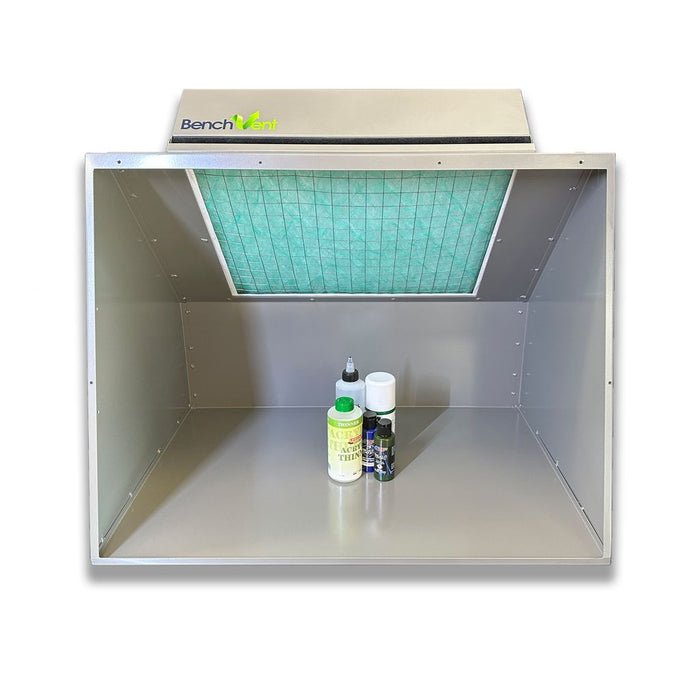

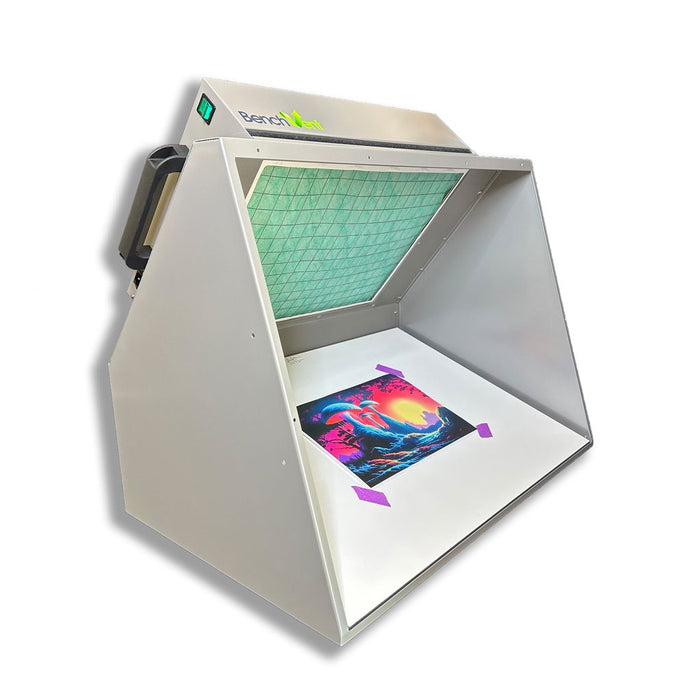

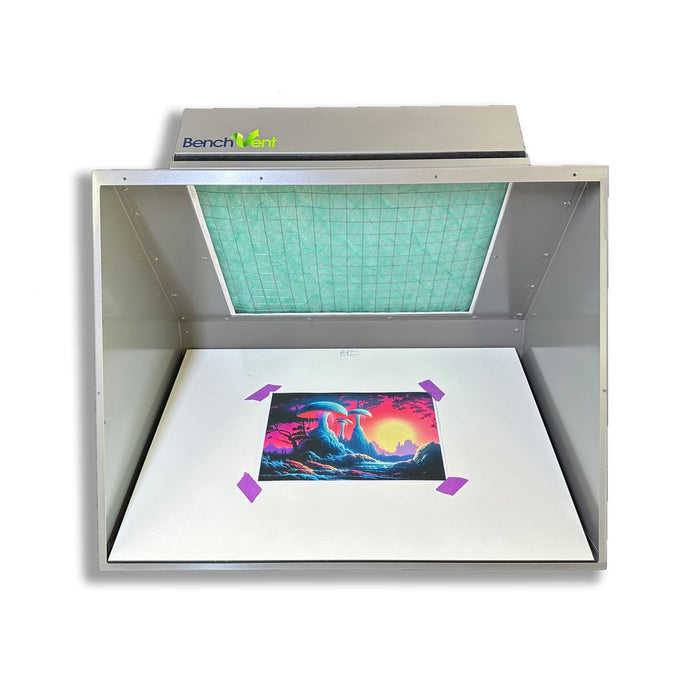

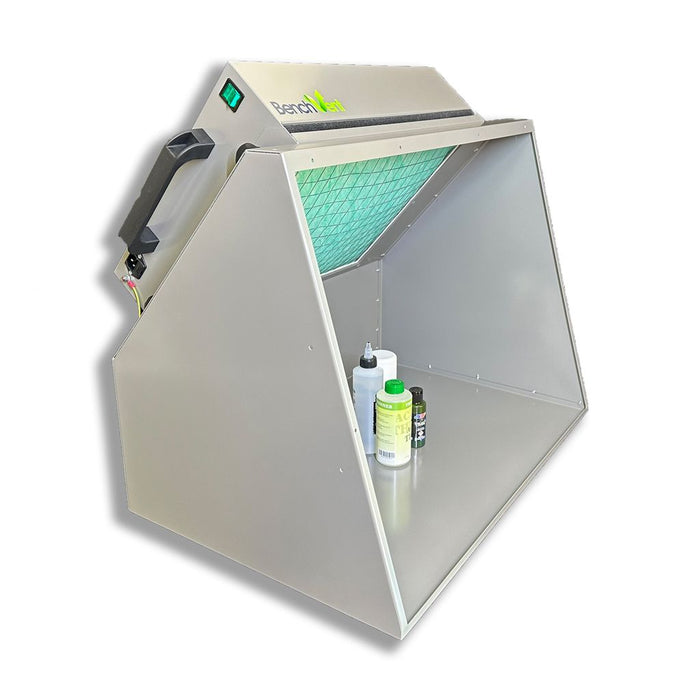

The BV200H is a hooded spray booth designed to capture, contain and filter potentially harmful substances within art, graphics, design technology areas, crafts and modelling. It can take up anything up to an A2 size material. It is a necessity for the health and safety of operators who work in areas where there are solvents and dusts. This includes DT rooms and art and graphics workrooms in education and commercial environment.
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns.
The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours. Through the process of filtration, adsorption and dilution, operator exposure to concentrations of potentially hazardous substances is vastly reduced. These units are designed predominantly for studio / classroom / workshop cleanliness and for immediate operator protection from concentrations of airborne contaminants.
The BV200H is not recommended for continual usage, i.e. production applications, particularly in confined and/or badly ventilated areas. For this, you will need a ducted unit like the BV200H-D, BV930H-D, or BV660H-D
NOTE: ADDITIONAL FREIGHT CHARGE WILL APPLY FOR BULKY PRODUCT
Discover the BenchVent Hooded Air Filtration Cabinet BV200H at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter unit with fan(s)
-
Hood Enclosure
-
Particulate filter
-
Charcoal Impregnated fibre filter
-
Power Lead
-
Data/Warranty Booklet
-
The workstation hood also accommodates prototypes, models, ceramic parts, PCB’s etc, placed onto the hood base to be sprayed, soldered, cleaned, glued, moulded, sanded etc.
-
Sealed electrical wiring and switch, downstream of filters
-
Brushless motor with external rotor
To view the datasheet click HERE
| Weight |
56 kg |
|---|---|
| Dimension |

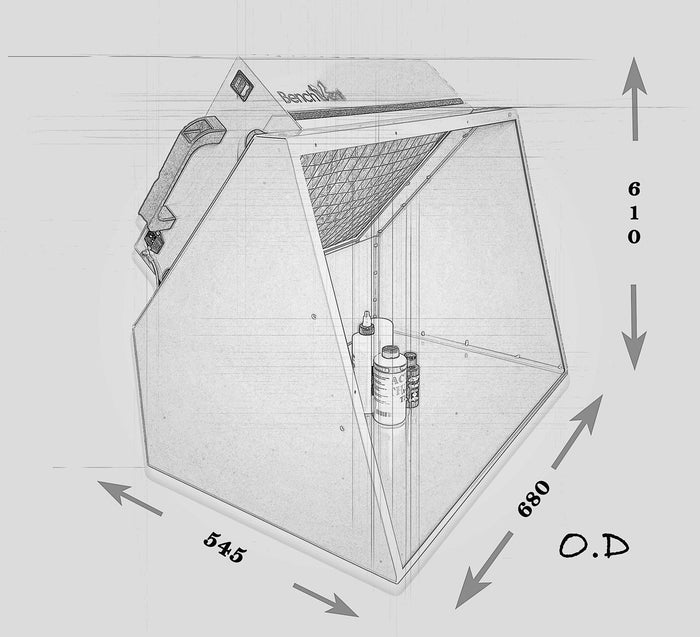

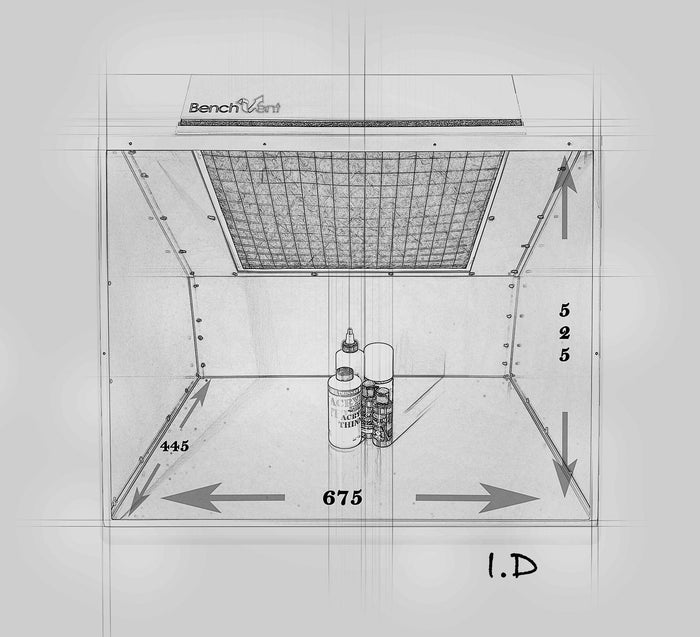

670 x 525 x 450 (w x h x d) [internal] 680 x 600 x 450 (w x h x d) [overall] |
| Description |
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure – particulate filter – carbon impregnated fibre filter – axial fan(s), external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters. |
| Air Volume at Free Air |
325 m3/hr |
| Ave. Air Velocity at Filter Face |
0.50 m/sec |
| Ave. Air Velocity at Hood Face |
0.25 m/sec |
| Fan Motor Spec |
230V 50HZ, 40W, 115V 60Hz 50W |
| Filters |
Particulate Filter: IFA3 – Charcoal Filter: – CHA3 – Filter Kit: FKA3 |
| Noise Level LAeq dB(A) |
59 db(A) |
