BenchVent Hood Mounted Ducted Fume Cabinet (Hood ID 960 x 660 x 620) BV930H-D
SKU: BV930H-D
BV930H-D
DESCRIPTION
Applications
Inclusions
Specifications
Shipping & Delivery
BenchVent Hood Mounted Ducted Fume Cabinet (Hood ID 960 x 660 x 620) BV930H-D
The BenchVent BV930H-D is a large ducted hood mounted local extraction cabinet designed specifically for laboratories. It is commonly used in dental & medical labs, pharmaceutical laboratories, research & development and school science laboratories.
This unit exhaust air through a flexi-duct externally to the atmosphere. Although, it’s a ducted fume extractor, you don’t need to have a special vent to use the BV930H-D. Its flexi-ducts can be fitted to a normal domestic vent or placed on a partially opened window. (We would recommend either one hole per duct or, if combining into on outlet, the outlet should be 150mm diameter)
The BV930H-D also provides operators with a safe workstation, as handling of all the potential harmful chemicals is done within the hood enclosure in front of the the intake filter area. For artwork applications, the enclosure can accommodate a standard A1 drawing boards, which will fit at an angle so the unit captures the over-spray efficiently, keeping the surrounding working area clean.
The BV930H-D fume cabinet is designed for immediate operator protection . If outside venting isn’t possible, BenchVent also offers re-circulatory fume cabinets such as the BV660H-C and BV930H-C. Both units have higher filtration specifications.
Download the datasheet for more information: BV930H-D Datasheet
** ADDITIONAL CHARGES MAY APPLY FOR AIR FREIGHT & BULKY ITEMS **
Discover the BenchVent Hood Mounted Ducted Fume Cabinet (Hood ID 960 x 660 x 620) BV930H-D at Mektronics Australia – your trusted source for quality tools and equipment!
The BV930H-D is suitable to filter fumes, vapours and particulates from:
-
Spray Adhesives
-
Conformal coatings (thin polymer film usually used to coat circuit boards)
-
Paints
-
Monomers
-
Resin
-
Sealants
-
Solders
-
Light Grinding
-
Organic Solvents
-
Cleaners
-
Hazardous powders & particulates
-
Filter unit with 2 x centrifugal fans
-
Hood Enclosure
-
Hood Light
-
Polycarbonate hinged front panel
-
2 x 2mtrs flexi-duct – 100mm diameter
-
Particulate filter
-
Power Lead
-
Data/Warranty Booklet
All BenchVent filtration and extraction systems carry a lifetime guarantee.
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
|
Weight |
125 kg |
|---|---|
|
Dimensions |

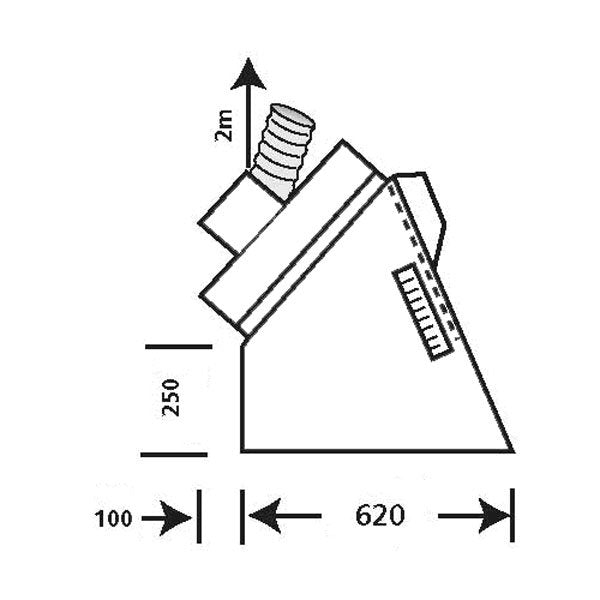

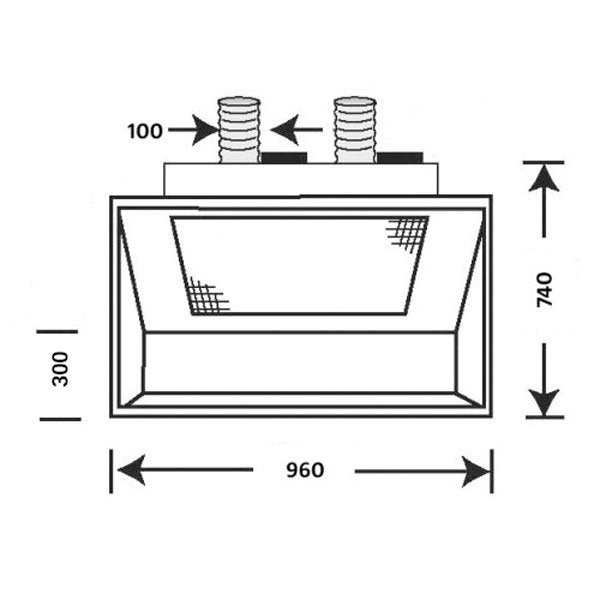

960 x 660 x 620 (wxhxd) [internal] 960 x 740 x 720 (wxhxd) [overall] |
|
Description |
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate filter – 2 x centrifugal blowers, external rotor motor type, brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filter. Flexi-ducts; 2 metres x 100mm dia. |
|
Air Volume at Free Air |
710 m3/hr |
|
Ave. Air Velocity at Filter Face |
0.60 m/sec |
|
Ave. Air Velocity at Hood Face |
0.55 m/sec |
|
Filters |
Standard Particle Filter – IFA2P |
|
Noise Level LAeq dB(A) |
60 db(A) |
