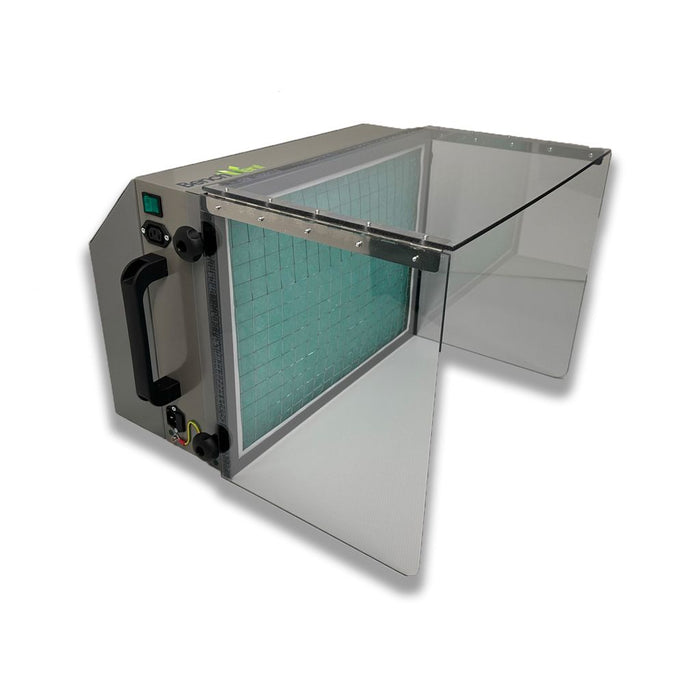

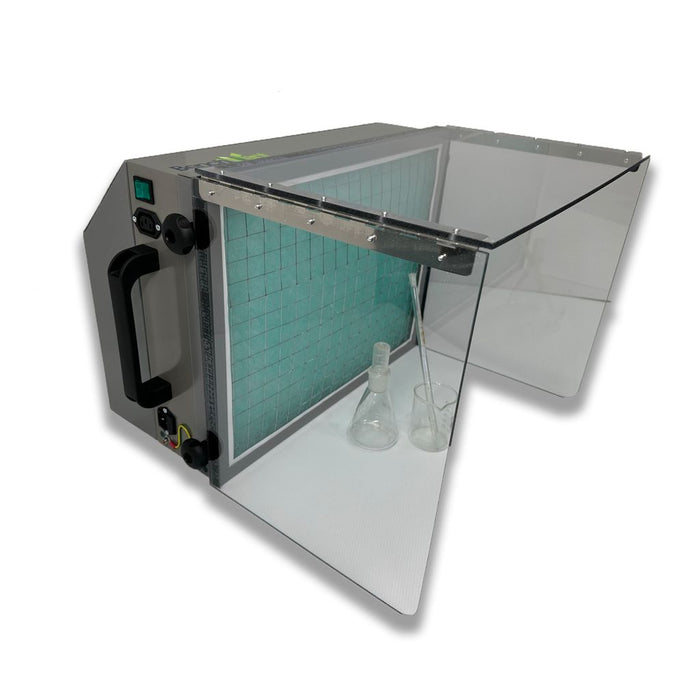

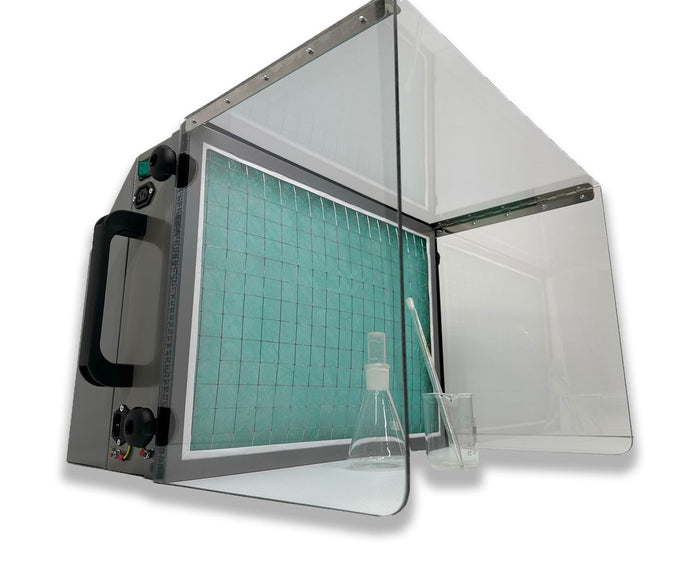

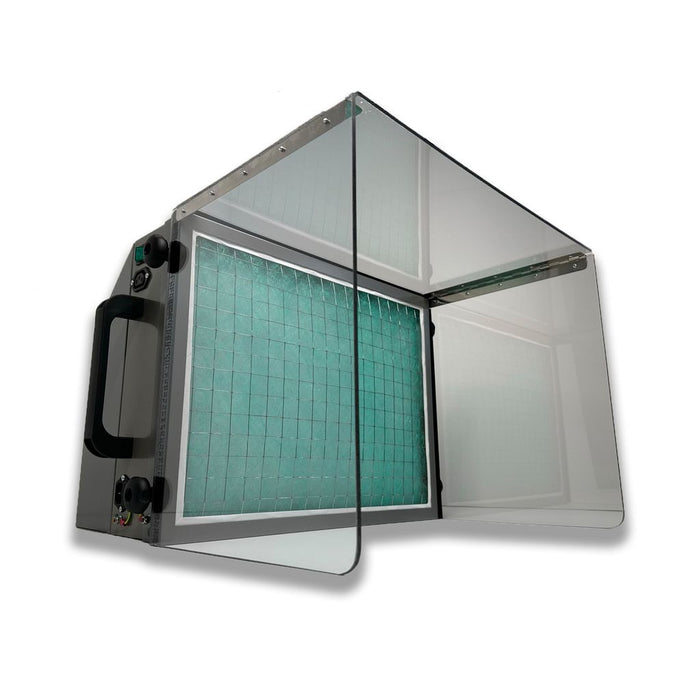

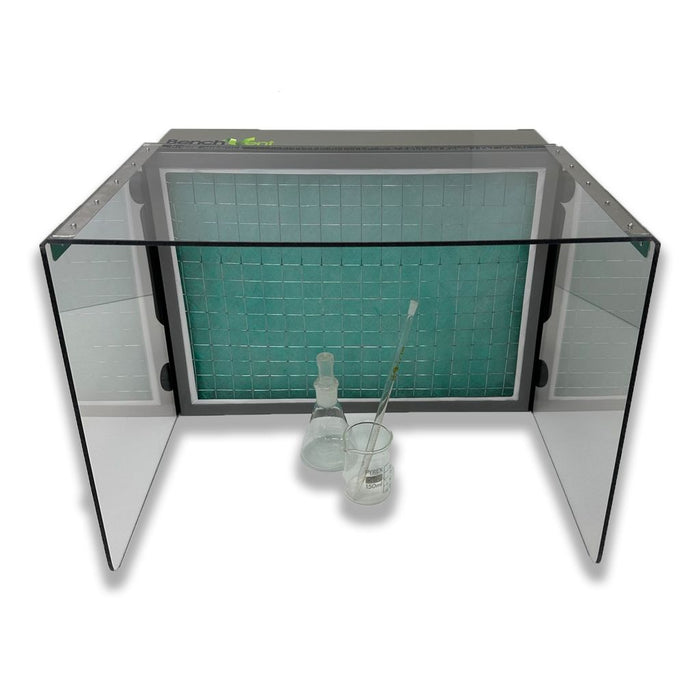

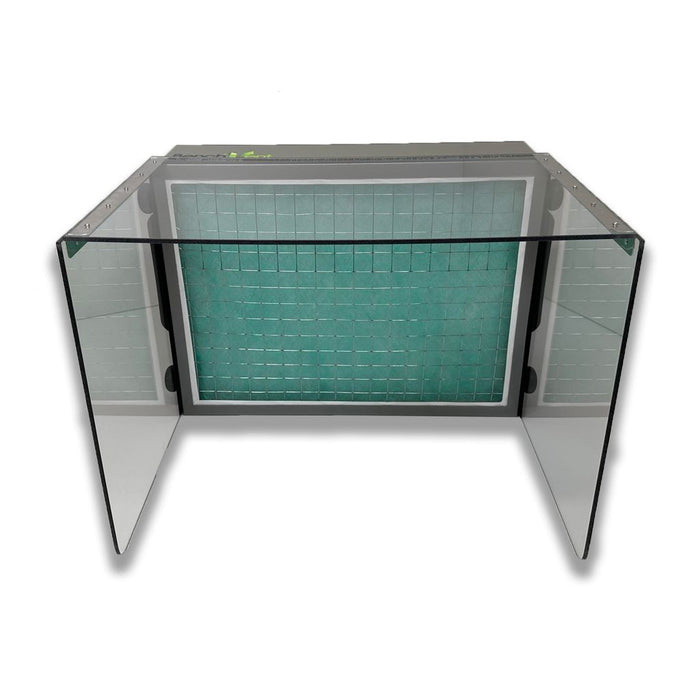

BenchVent High Efficiency Filter Cabinet (550 x 385 x 530) BV500S-C
SKU: BV500S-C
BV500S-C
DESCRIPTION
Inclusions
Applications
Key Features
Resources
Specifications
Shipping & Delivery
BenchVent High Efficiency Filter Cabinet (550 x 385 x 530) BV500S-C
The BenchVent BV500S-C, a high-efficiency filter cabinet with acrylic capture shield to contain and filter within dental labs, electronic design, pharmaceutical labs, and classroom environments.
The particulate (intake) filter is a three stage graduated fibre filter (filtration to 5.0 micron particles) with a high 'dust' holding capacity for long life. (Optional HEPA filters available to 0.3micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates at the front of the unit are drawn into the intake filter. Cleaned air is exhausted to the top rear of the cabinet.
Lifetime Guarantee
All BenchVent filtration and extraction systems carry a lifetime warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
NOTE: ADDITIONAL FREIGHT CHARGES APPLY FOR BULKY ITEMS
Discover the BenchVent High Efficiency Filter Cabinet (550 x 385 x 530) BV500S-C at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter unit with centrifugal fan
-
Acrylic Spray Shield
-
1 x Particulate filter
-
1 x Activated Carbon filter
-
Power Lead
-
Data/Warranty Booklet
The BV500S-C is suitable for use in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary. This includes the filtration of fumes, vapour and particulates emanating from: Monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc.
The folding Polycarbonate shield can be stored if not required thus reducing the unit footprint considerably. Handling and / or use of potentially harmful substances is carried out in front of the intake filter area. Cleaned air is vented to the top rear of the units.
-
Folding clear Polycarbonate plastic fume shield
-
Carry handle
-
Sturdy steel construction
View the datasheet HERE
| Weight |
22 kg |
|---|---|
| Dimensions |

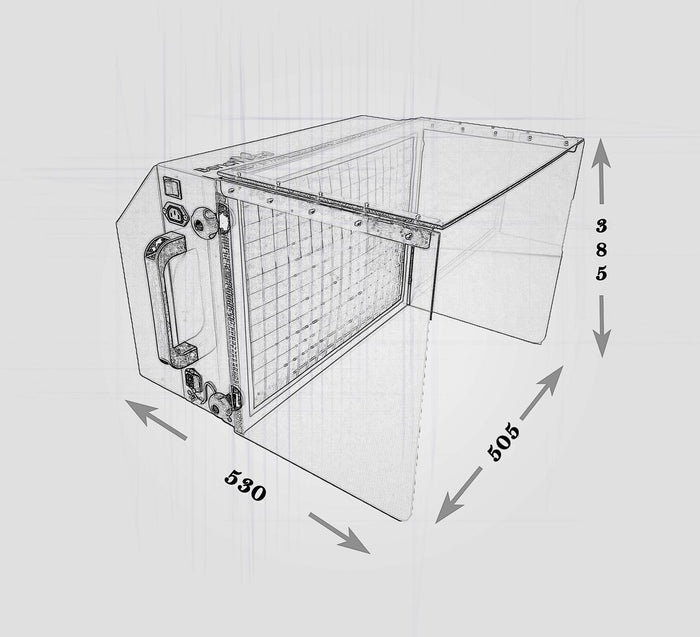

550x385x530 (wxhxd) |
| Description |
Fan/filter casing (steel construction finished in grey) €“ clear PETG folding plastic fume shield €“ particulate (Intake Filter) €“ 3.5kg bonded carbon filter €“ centrifugal blower, external rotor motor type brushless, UL, VDE and CSA ap-proved €“ sealed electrical wiring and switch, downstream of filters. |
| Air Volume at Free Air |
355m3/hr |
| Ave. Air Velocity at Filter Face |
0.55m/sec |
| Ave. Air Velocity at Shield Face |
0.38m/sec |
| Filters |
IFA3 Particle Filter, AC200 Activated Carbon Filter. EPA Fine Particle filter available as optional extra |
| Fan Motor Spec |
230V 50Hz 105W |
| Noise Level LAeq db(A) |
60 |
