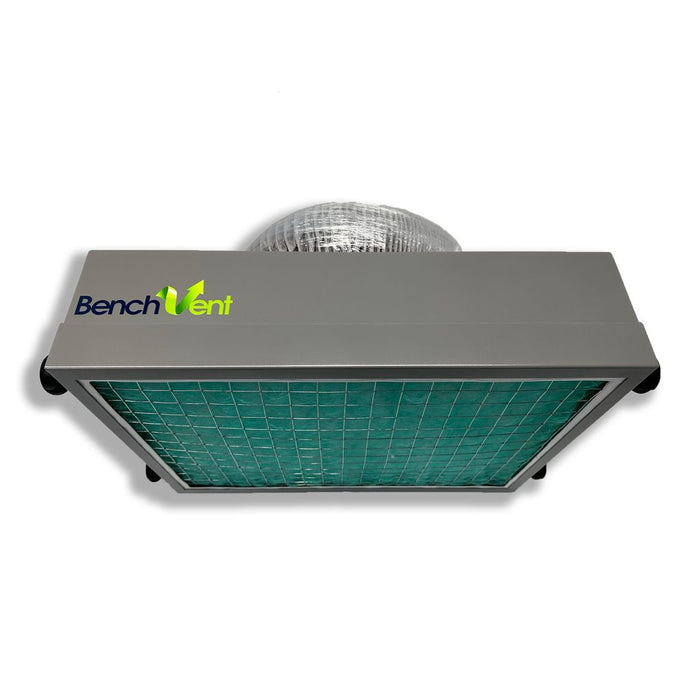

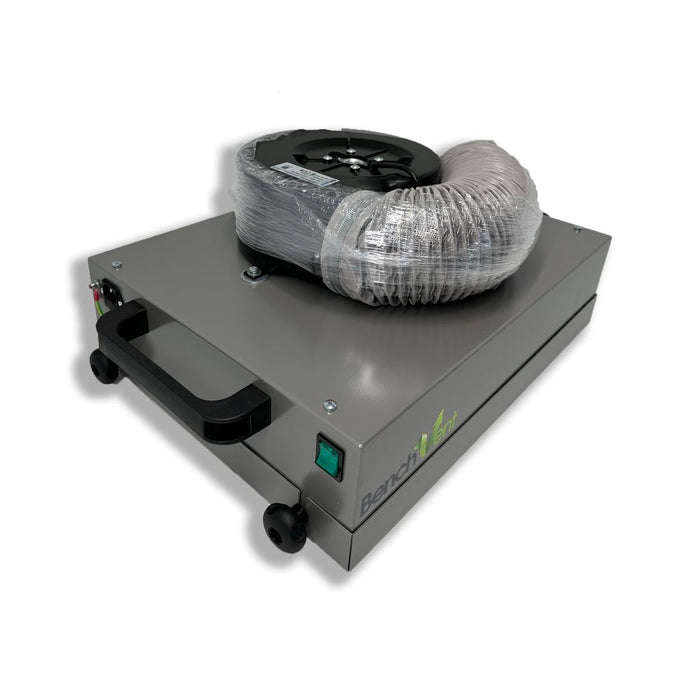

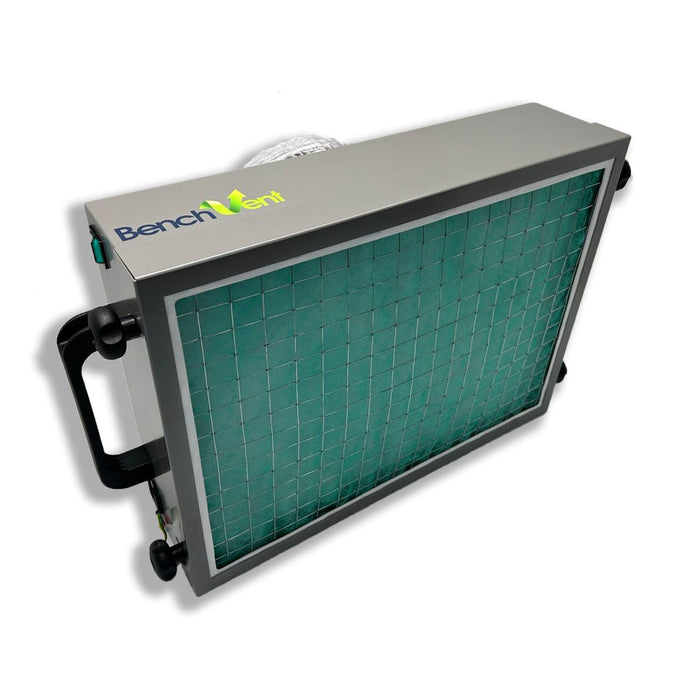

BenchVent Primary A3 Ducted Air Filtration Unit P1001-D

SKU: BVP1001-D

P1001-D

$2,292.26

EX. GST
$2,521.49
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Usage
Includes
Resources
Specifications
Shipping & Delivery

BenchVent Primary A3 Ducted Air Filtration Unit P1001-D

The P1001-D is a filtration unit with high-efficiency centrifugal blower fans that exhausts direct to atmosphere. It is designed to offer local exhaust ventilation for smaller projects, and immediate operator protection.

Additionally, the P1001-D also provides operators with a safe workstation for handling potential harmful chemicals. All processes are done under or beside the fan unit in front of the intake filter area.

This extraction unit serves the purpose to sit on top or behind a bespoke hood or custom made surround. It enables users to design and construct hoods/enclosures/benches to suit their particular requirements.

The unit can be positioned at any angle offering total flexibility of enclosure design.

This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.

All BenchVent filtration and extraction systems carry a lifetime guarantee.

NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES

High Quality Filtration

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. (Optional HEPA filters available to approx 0.3 micron particles). Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.

Discover the BenchVent Primary A3 Ducted Air Filtration Unit P1001-D at Mektronics Australia – your trusted source for quality tools and equipment!

  • Quiet in operation at 62db

  • Lifetime Warranty

  • Can be assembled in seconds. Place onto an enclosure, hood, desk, bench or trolley and then simply plug in and switch on.

  • Steel construction finished in grey – fan/filter unit

  • particulate (intake) filter

  • centrifugal blowers

  • 2m Ducting length

  • External rotor motor (brushless, UL, VDE and CSA approved)

  • Sealed electricals, downstream of filters.

The P1001-D is suitable to filter fumes, vapours and particulates from:

  • Spray Adhesives/Aerosols

  • Conformal coatings (thin polymer film usually used to coat circuit boards)

  • Paints

  • Monomers

  • Resins

  • Sealants

  • Solders

  • Light Grinding

  • Organic Solvents

  • Cleaners

  • Other hazardous powders and particulates

  • Filter unit with Centrifugal Blower fan

  • 1 x Particulate filter

  • 2m Ducting lengths attached

  • Power Lead

  • Data/Warranty Booklet

View the data sheet HERE

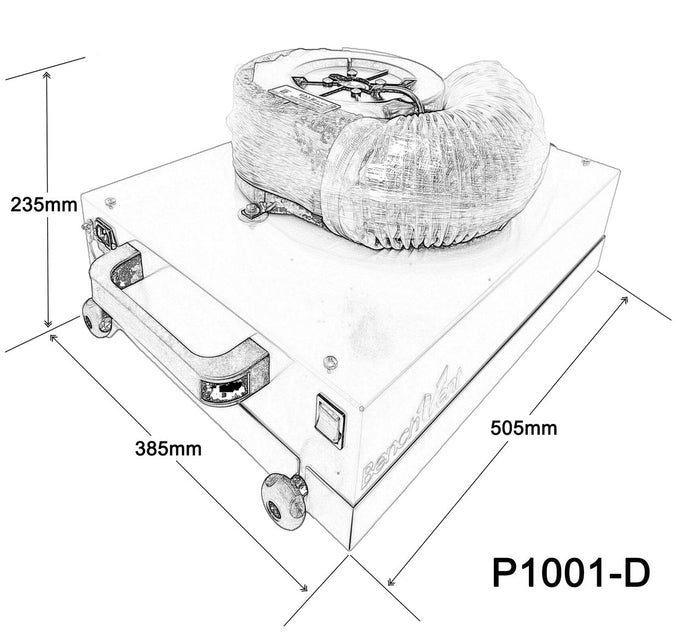

Dimensions

505 x 385 x 235 (wxhxd) [overall]
10kg Weight
Description

Steel construction finished in grey – fan/filter units mounted – particulate filter – Fan/Blower motors: external rotor motor type brushless, UL,
VDE and CSA approved – sealed electrical wiring and switch, downstream of filters.
Air Volume at Free Air

355m3/hr
Ave. Air Velocity at Filter Face

0.60m/sec
Fan Motor Spec

230V, 50Hz, 105W, 115V 60Hz 110W
Filters

Particle Filter: IFA3 – Optional EPA Filter: EPA495P
