BenchVent Ducted Fume Extraction Cabinet (Hood ID 670 x 525 x 450) BV660H-D
SKU: BV660H-D
BV660H-D
Description
Includes
Usages
Features
Specifications
Shipping & Delivery

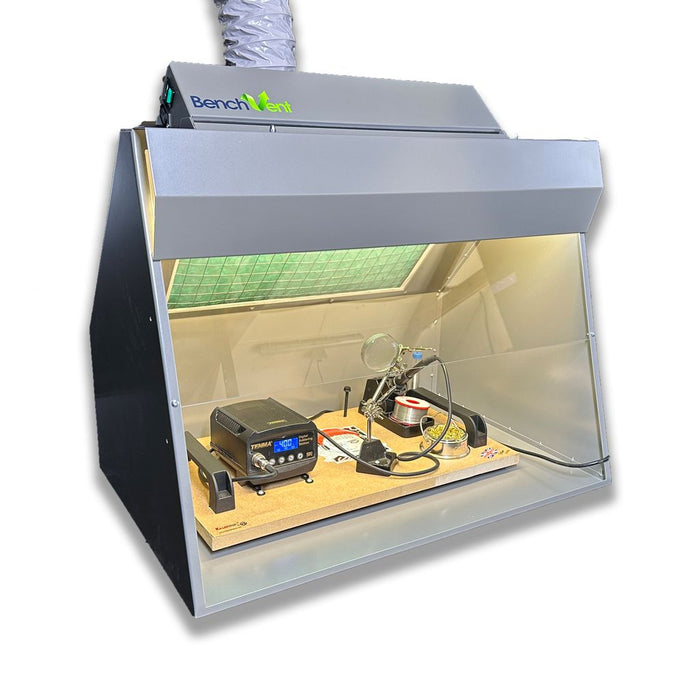

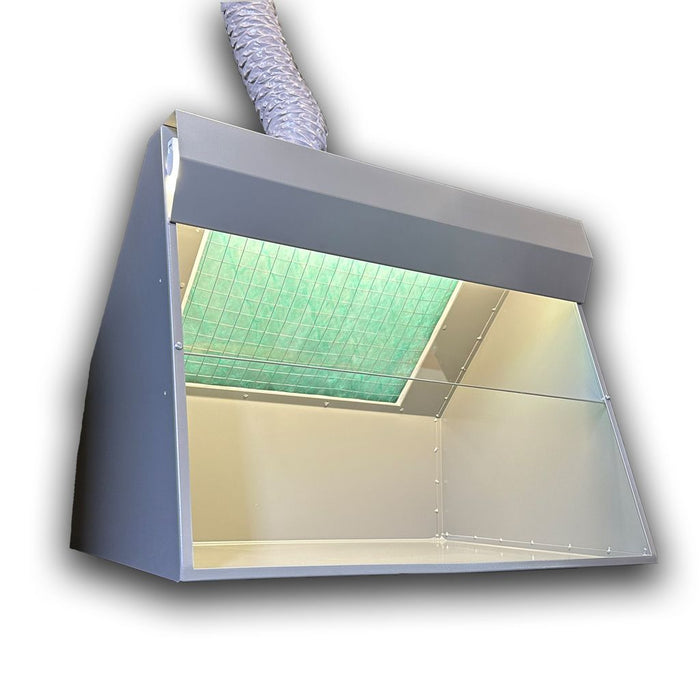

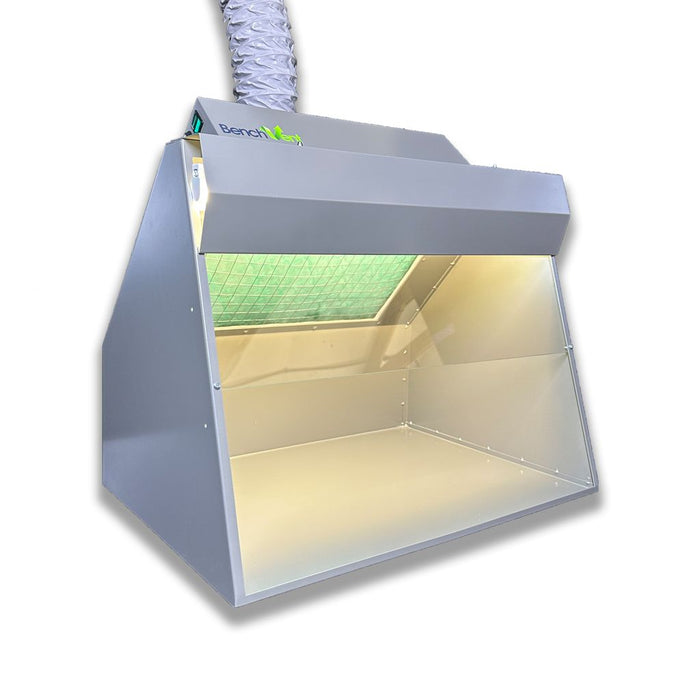

The BenchVent BV660H-D Extraction Cabinet is our flagship hood mounted extract-to-atmosphere cabinet. It’s been designed to capture, contain, filter and expel harmful contaminants within electronic design & rework, dental/medical labs, pharmaceutical labs and classroom environments.
** ADDITIONAL CHARGES MAY APPLY FOR AIR FREIGHT & BULKY ITEMS **
Discover the BenchVent Ducted Fume Extraction Cabinet (Hood ID 670 x 525 x 450) BV660H-D at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter unit with centrifugal fan
-
Hood Enclosure
-
Hood Light
-
Polycarbonate hinged front panel
-
Particulate filter
-
2mtrs x 100mm dia flexi-duct
-
Power Lead
-
Data/Warranty Booklet
The BV660H-D is ideal for use with spray adhesives, conformal coatings and paints, monomers, hazardous powders and particulates, resins, sealants, solders, light grinding particles, organic solvents and cleaners etc.

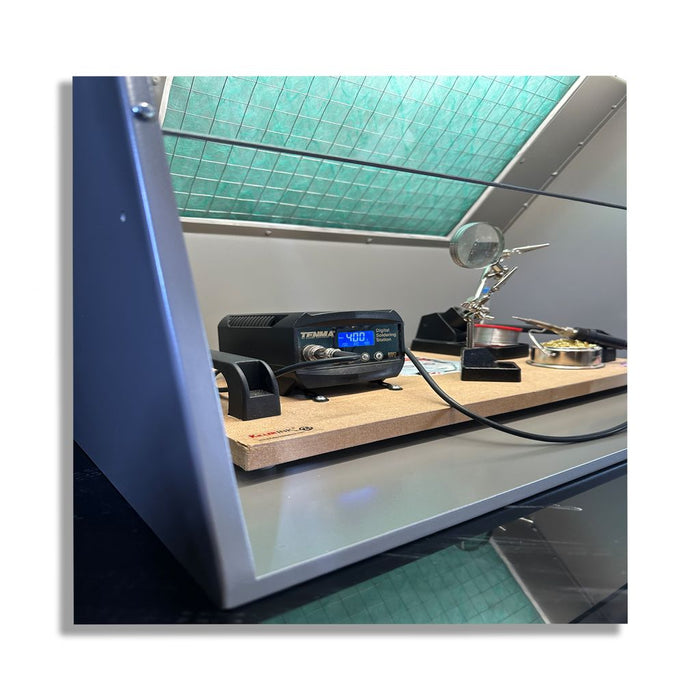

All handling and/or use of potentially harmful substances is carried out within the hood enclosure in front of the intake filter area. For artwork applications, standard A2 drawing board can be placed within the hood enclosure. The board fits at an angle for efficient overspray capture.
These fume cabinets are designed for immediate operator protection whereby ‘large’ particulates (> 5 microns) are filtered out and ‘fine’ particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct(s).
The Flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window to facilitate portability and/or convenience.
-
2mtrs flex-duct
-
Clear polycarbonate panel for protection
-
Hood lighting
|
Weight |
56 kg |
|---|---|
|
Dimensions |

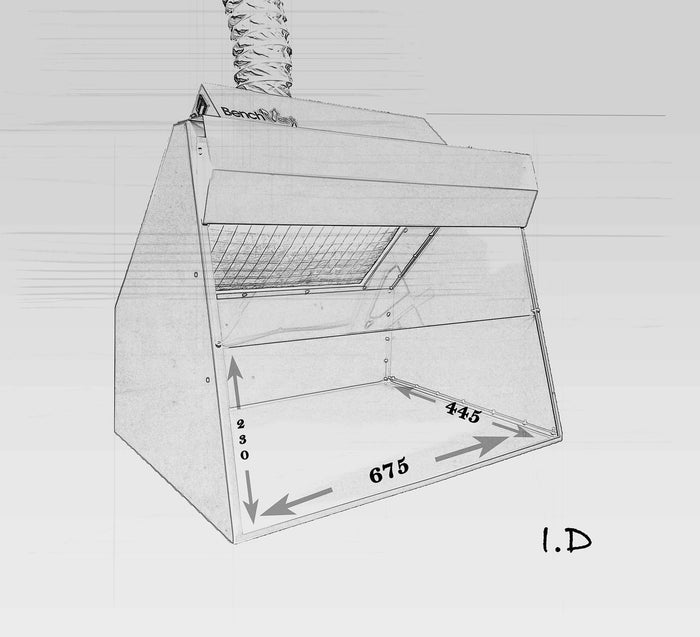

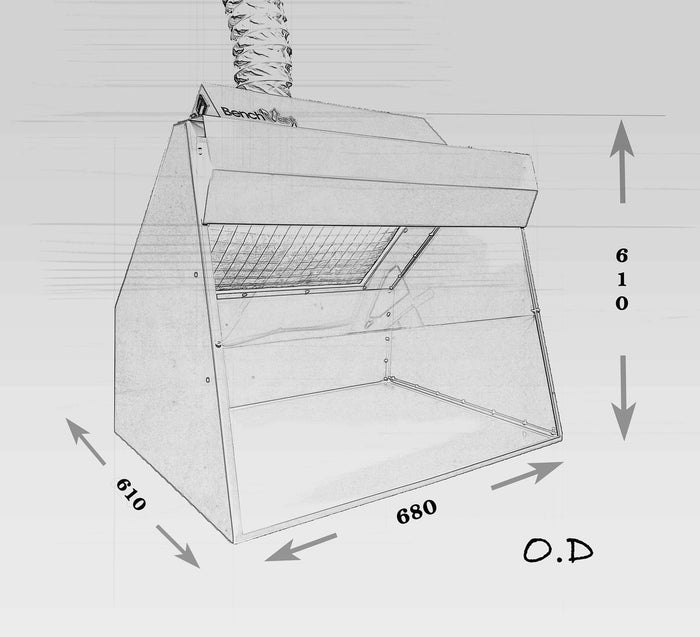

670x525x450 (wxhxd) [internal] 680x600x450 (wxhxd) [overall] |
|
Description |
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate filter – centrifugal blower, external rotor motor type, brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. |
|
Air Volume at Free Air |
355 m3/hr |
|
Ave. Air Velocity at Filter Face |
0.60 m/sec |
|
Ave. Air Velocity at Hood Face |
0.55 m/sec |
|
Fan Motor Spec |
240V 50Hz 40W, 115V 60Hz 45W |
|
Filters |
Standard Particle Filter – IFA3P |
|
Noise Level LAeq dB(A) |
58 db(A) |
